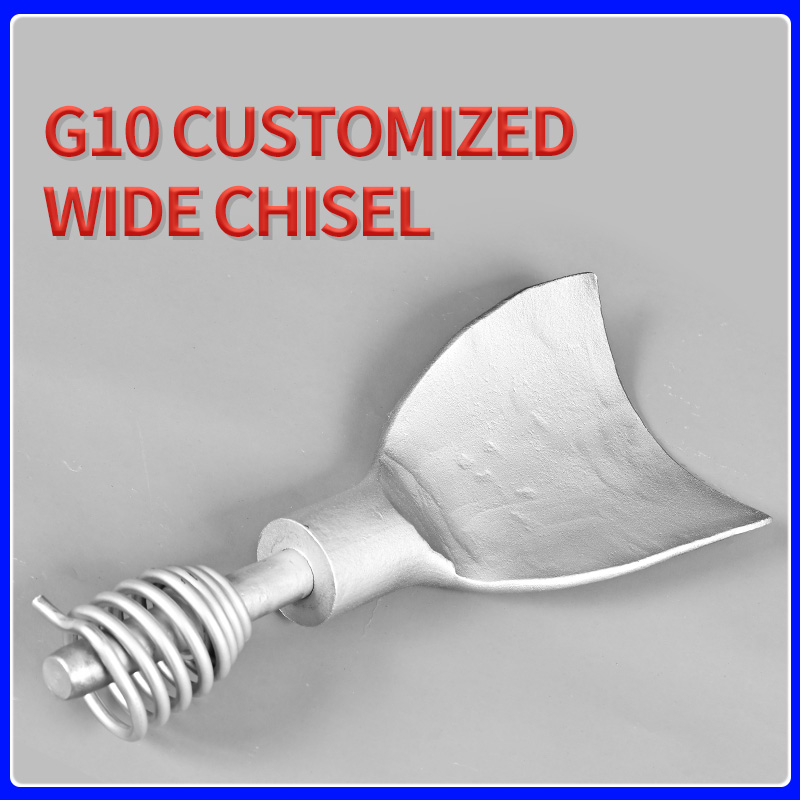

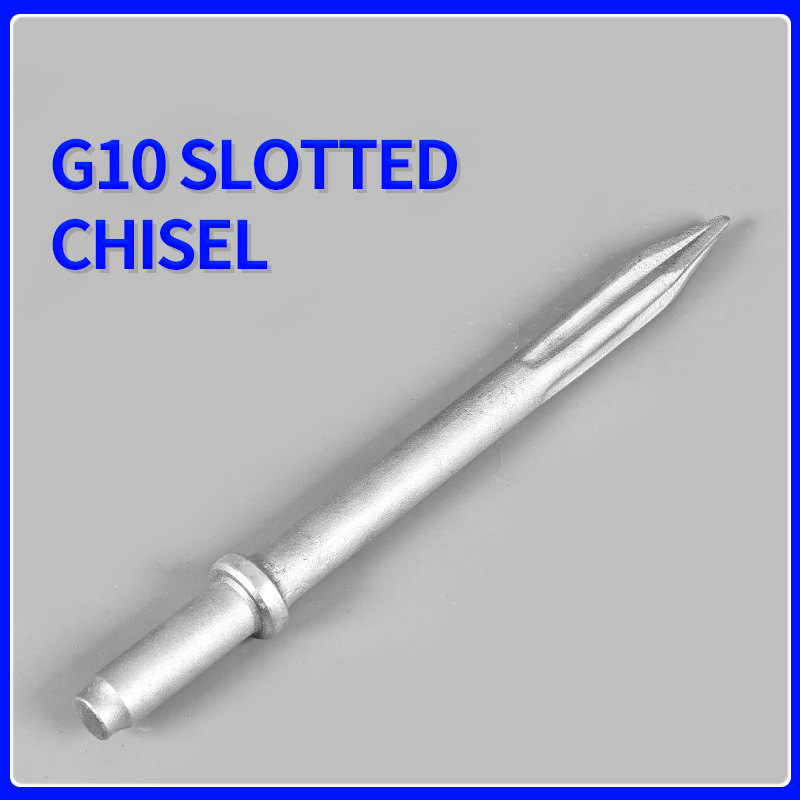

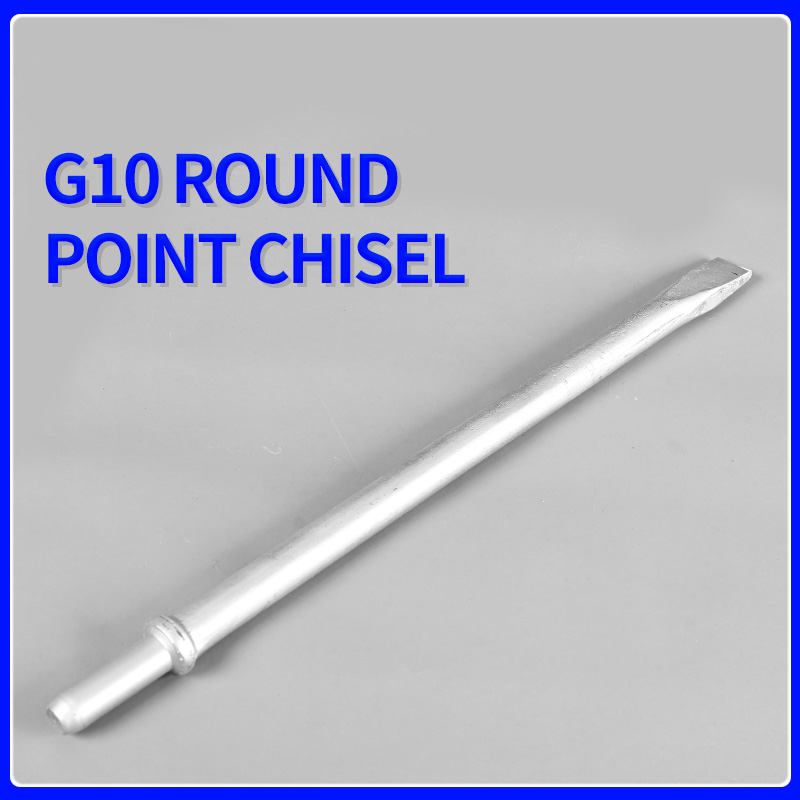

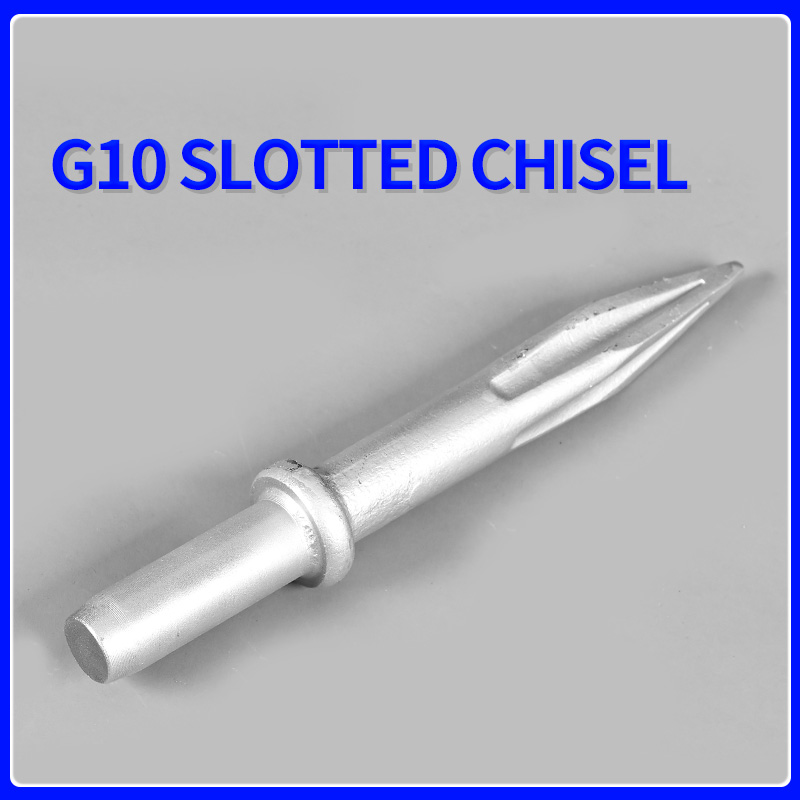

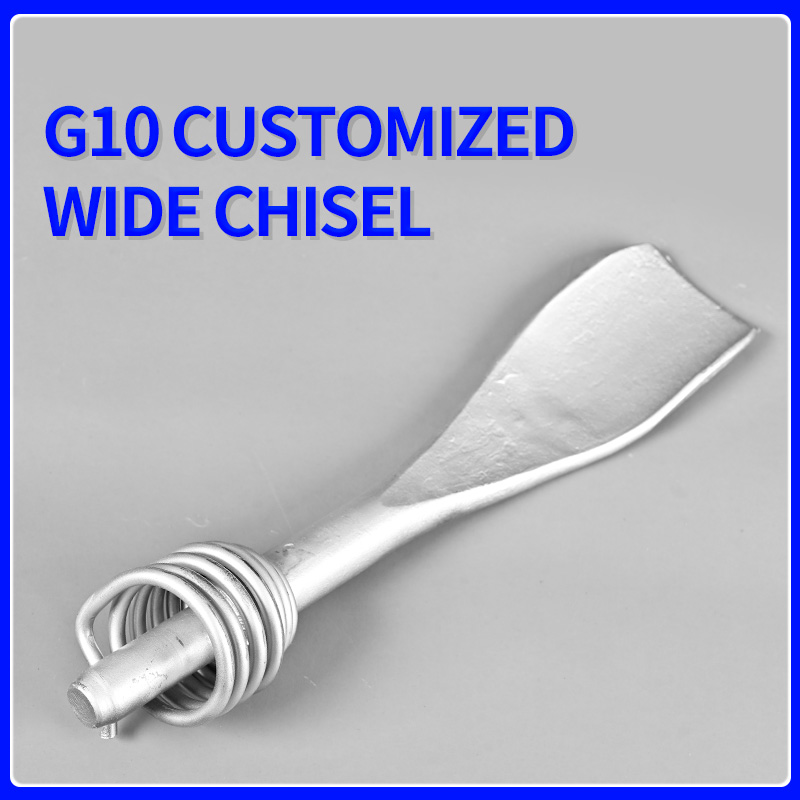

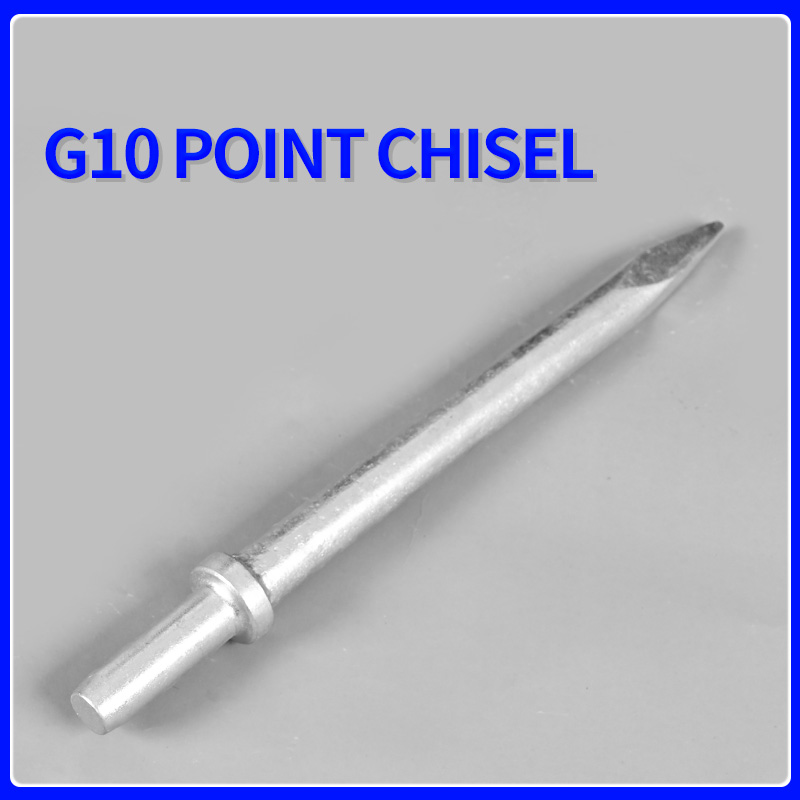

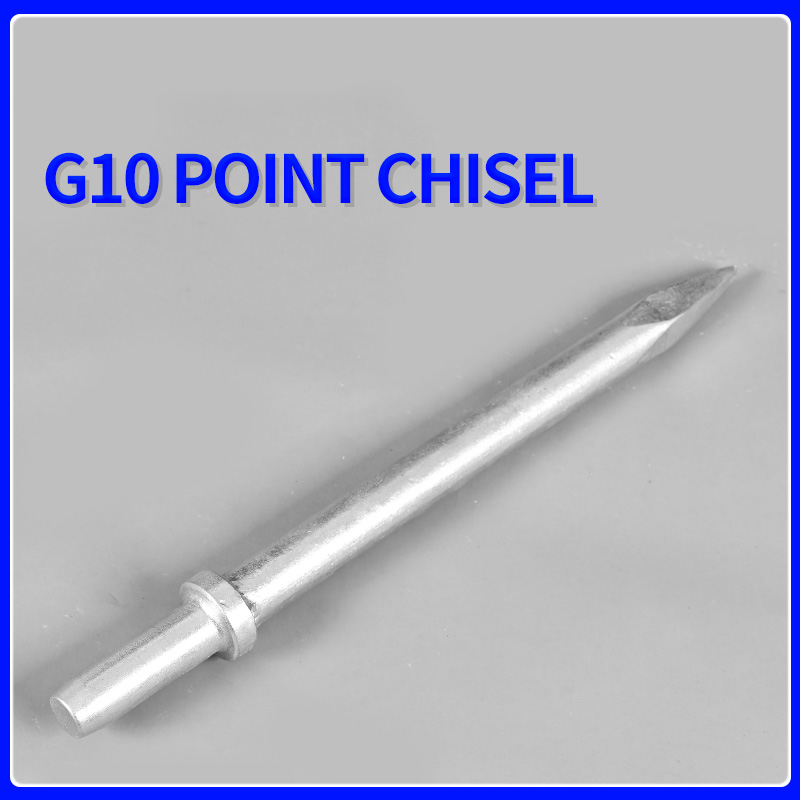

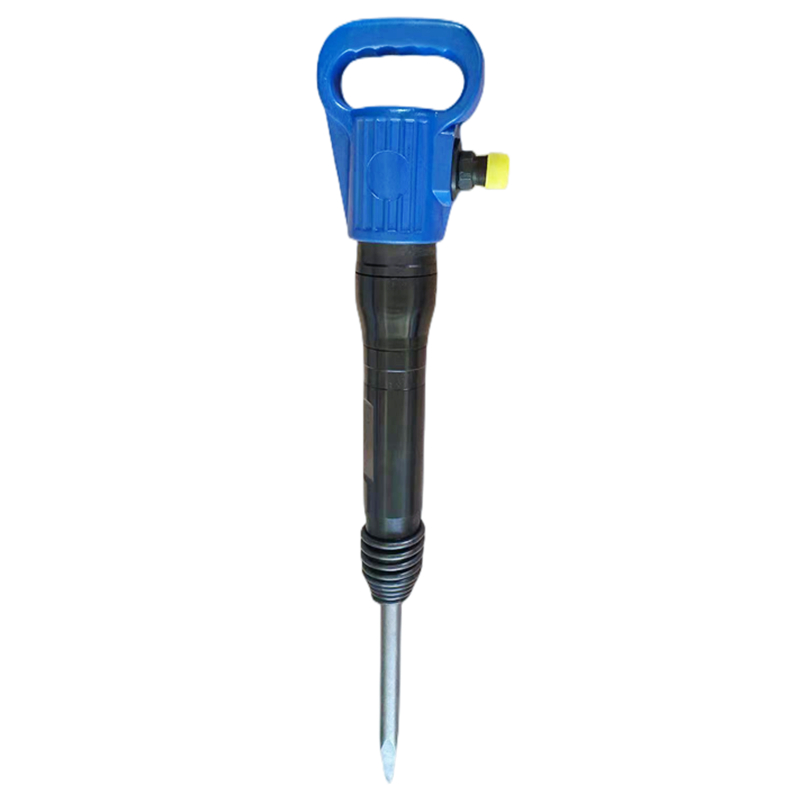

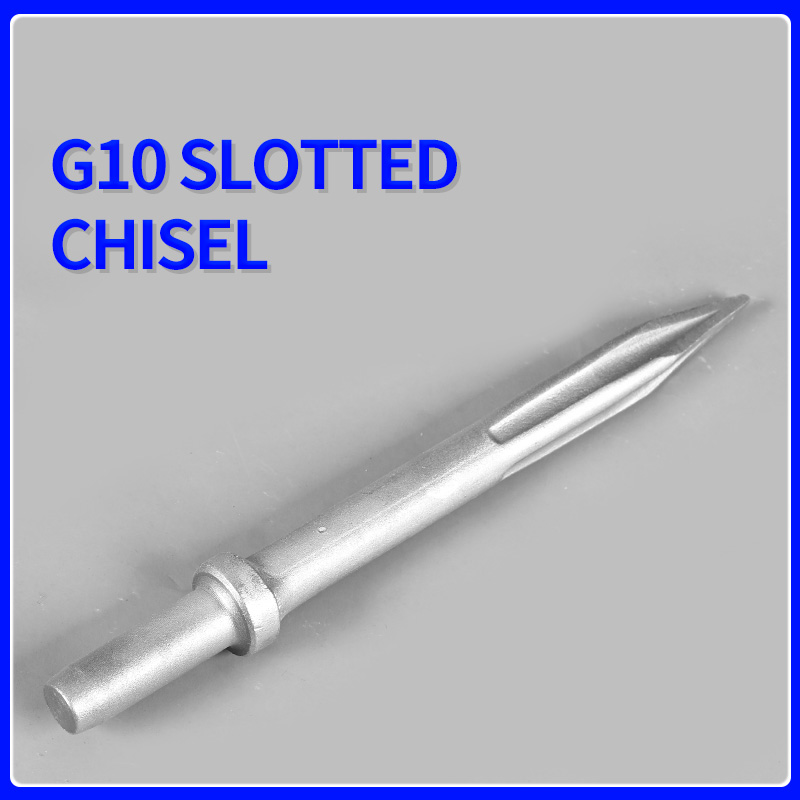

G10 Pneumatic Hammer with Chiels
- Shank size : 24*72 mm
Rock drilling tools manufacturer ProDrill: Pneumatic splitter, also referred as pneumatic hammer, air hammer, pick hammer, etc.
This kind of machine is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. This demolition equipment can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc, crushing concrete, permafrost and ice breaking in construction and installation projects, use with more than 1.5 cubic meters air compressor.
| G10 Pneumatic Hammer Splitter Technical Data Sheet | |
| N.W. | 10.5kg |
| Length | 575mm |
| Percussive Energu | ≥43J |
| Percussive Frequency | 16 Hz |
| Air Consumption | 26 L/S |
| Bit Fixation Style | Spring clip |
| Bit head size | R24x72 mm |
| Air Tube Lnner Diameter | 19 mm |
Plugs and feathers size for G10 ，G15 , G16
| Model | Weight |
| 20MM*290MM | 0.8kg |
| 24MM*330MM | 0.97kg |
| 30MM*395MM | 1.86kg |
| 32MM*365MM | 1.75kg |
| 32MM*395MM | 1.89kg |
| 32MM*470MM | 2.4kg |
| 32MM*610MM | 3.19kg |
| 34MM*395MM | 2.03kg |
| 34MM*610MM | 3.29kg |
| 36MM*395MM | 2.28kg |
| 36MM*610MM | 3.42kg |
| 38MM*395MM | 2.38kg |
| 38MM*610MM | 3.75kg |
| 40MM*395MM | 2.5kg |
