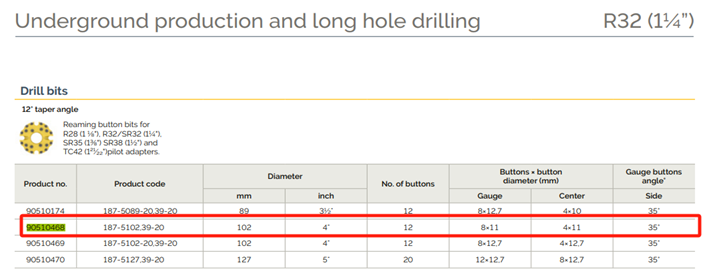

Reamer bit + pilot adapter with insert R32 ( 90510468 )
- Reamer bit size : 102mm :
- Carbide : front 4*11mm , gauge 8*11mm :
- Adapter with insert size : R32-40mm-12°:

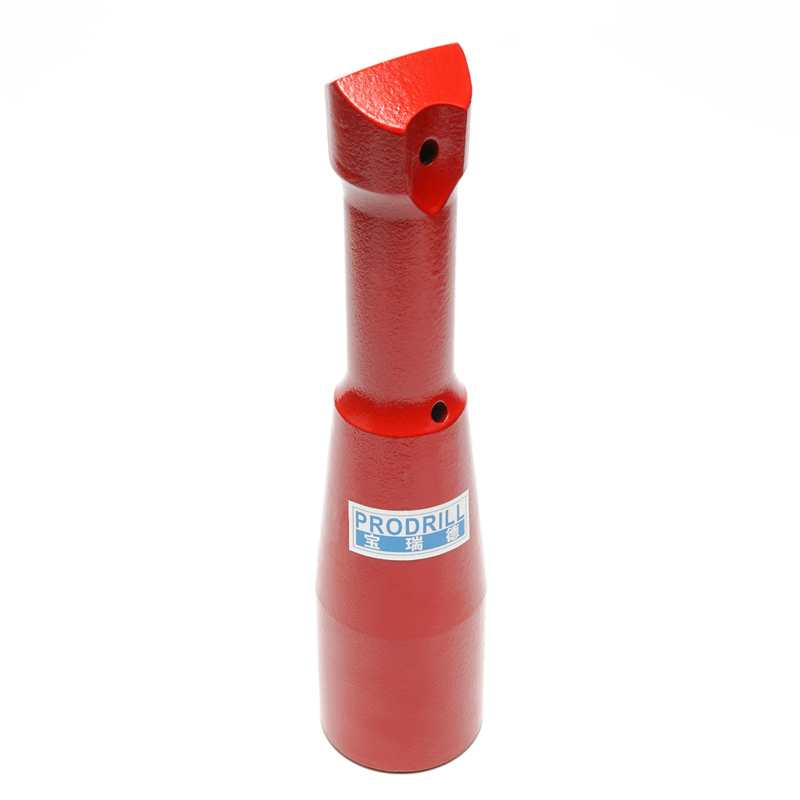

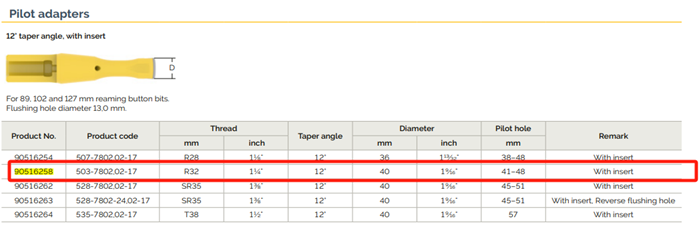

ProDrill TM Pilot adpters R32-40mm-12° ( 90516258 )

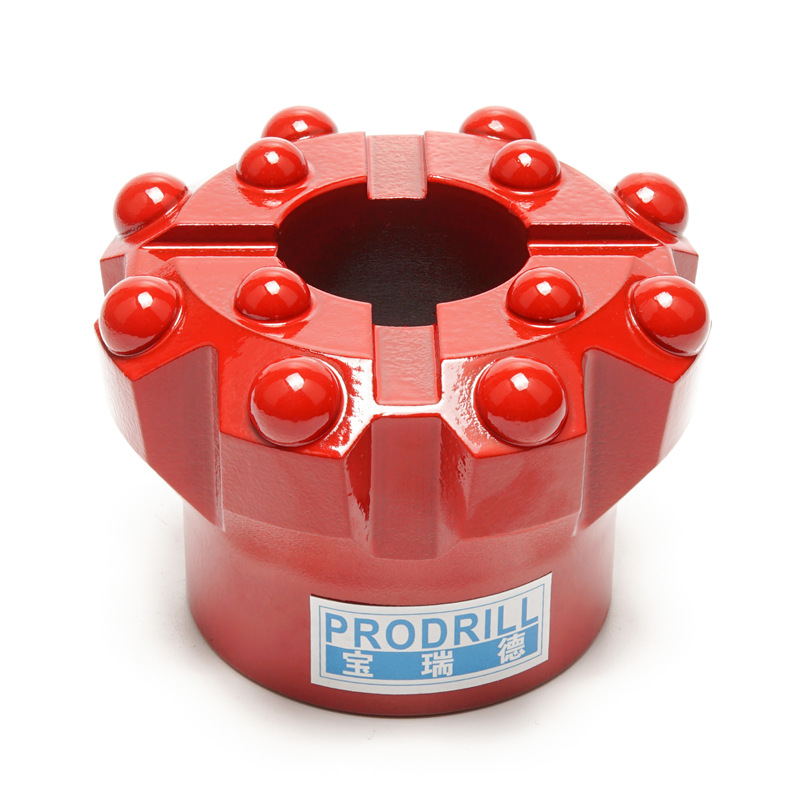

Reaming button bits for R32
Rock drilling tools manufacturer ProDrill is rock drill bits: Reaming tools made from high alloy steel and tungsten carbide as same grade as internationally well-known brand. Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand.
Reaming bit with pilot adapter R32-102,
Pilot adapter, Reamer ring.
A reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes pilot adapter a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge.
Assembly
Reaming ring of reaming tools, a second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.
