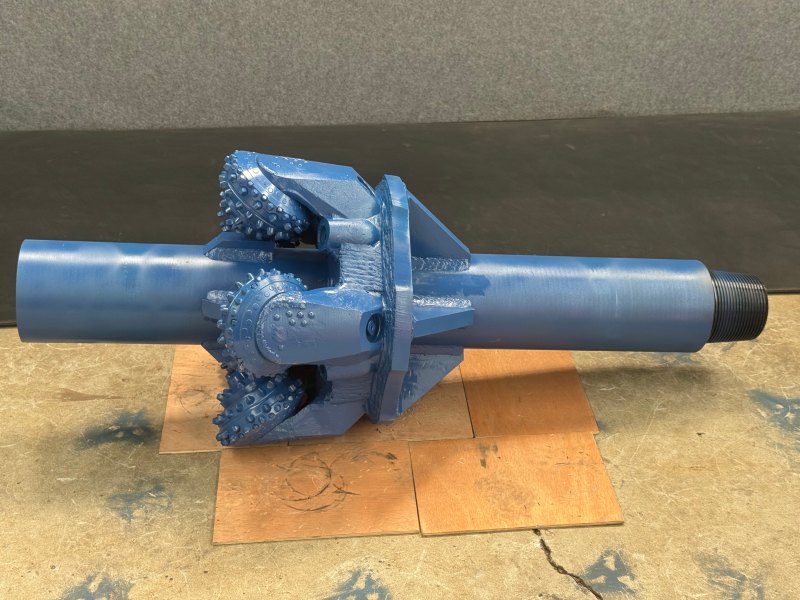

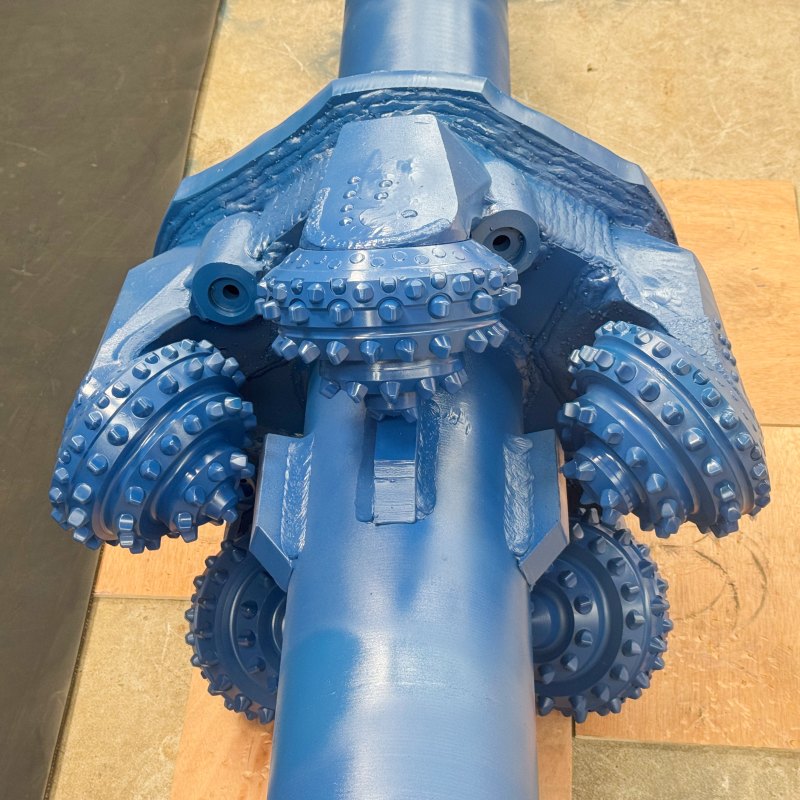

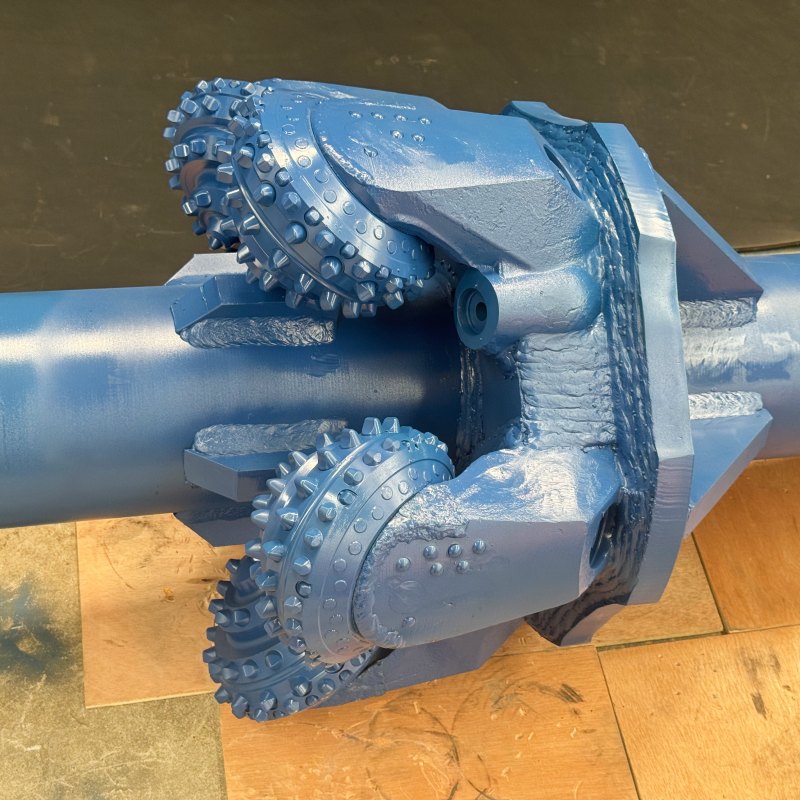

12 1/4'' Cone Reamer Bit
- Size: 12 1/4''
- IADC: 537
- Thread : 6 5/8"API REG BOX--PIN
- Bearing type : Rubber Sealed Bearing
- Single roller cutter--Quantity : 5
- Multi roller combination structure: 3 or more independent rollers arranged vertically and extending radially, specializing in vertical/large-diameter well drilling
- Rock breaking mechanism: revolution+rotation, impact crushing+shear scraping dual rock breaking, high efficiency in hard rock
- High strength and wear-resistant design: alloy steel body+palm back embedded alloy, anti shedding structure, sealed bearing resistant to high temperature and mud invasion
- Straightening and diameter maintenance: Front and rear straightening rings/plates have strong vertical stability, regular aperture, and small wellbore inclination
- Strong adaptability: Steel teeth (soft layer)/inlaid teeth (hard layer) are optional, with a customizable aperture of 220-2200mm
ProDrill manufacture Drilling Cone Reamer Bit , hole openers，stablizers,tri-cone rook bits, and field replaceable cuters.Eagle Claws, Replacement Cutters, Mud Motors, Rock Bits ,and High-Flow Trensmitter Housings, all sizes can be made from 200mm upto 1800mm,thread:IF,FH,NC,REG,Vermeer,Ditch Witch,for Horizontal Directional Dilling(HDD) or vertical drilling . Application:soft to medium rock & hard rock.
For large-scale reaming, a weight-reducing design is adopted to effectively reduce the weight, reduce the tendency of the pipeline trajectory to change lines, an reduce the blocking card during reaming and hosting.
The roller blades developed separately for the trenchless project, the reasonable tooth distribution and the additional reinforced palm-back alloy effectively increase the service life of the reamer in complex formations.
