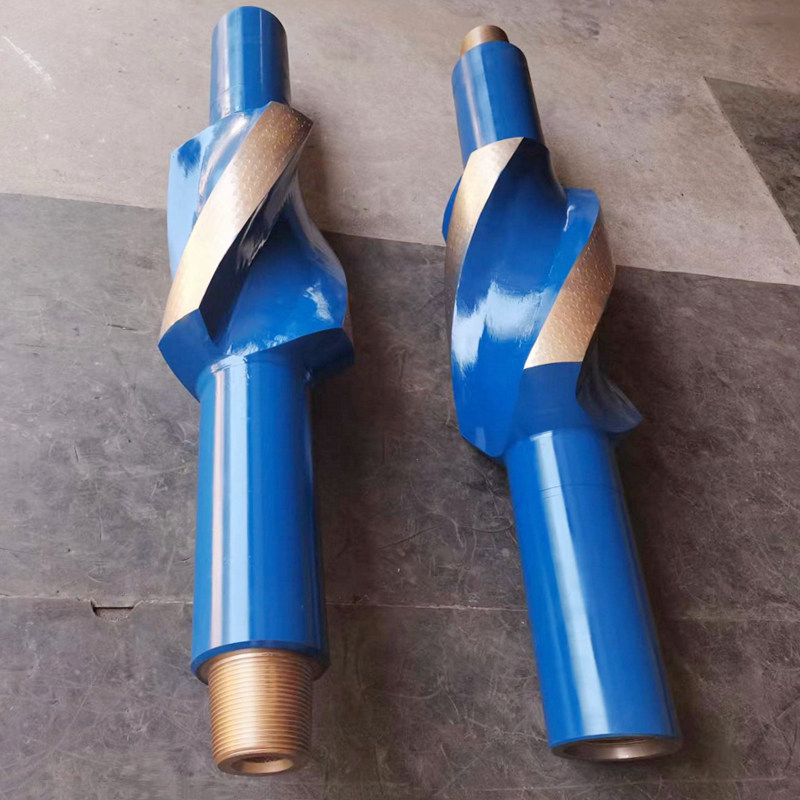

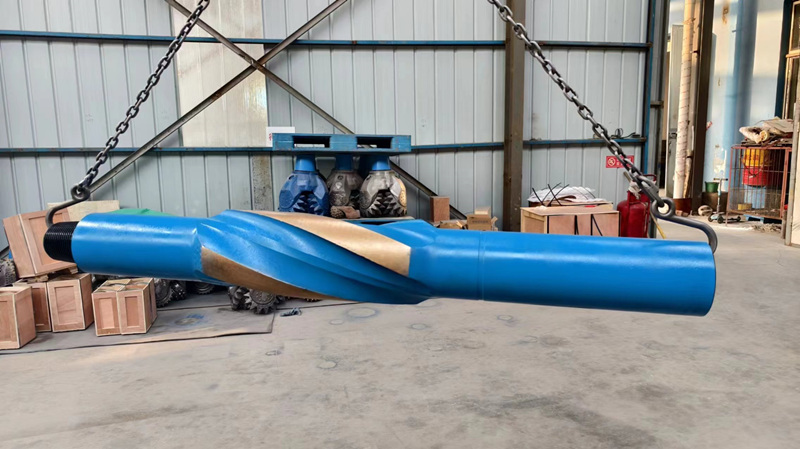

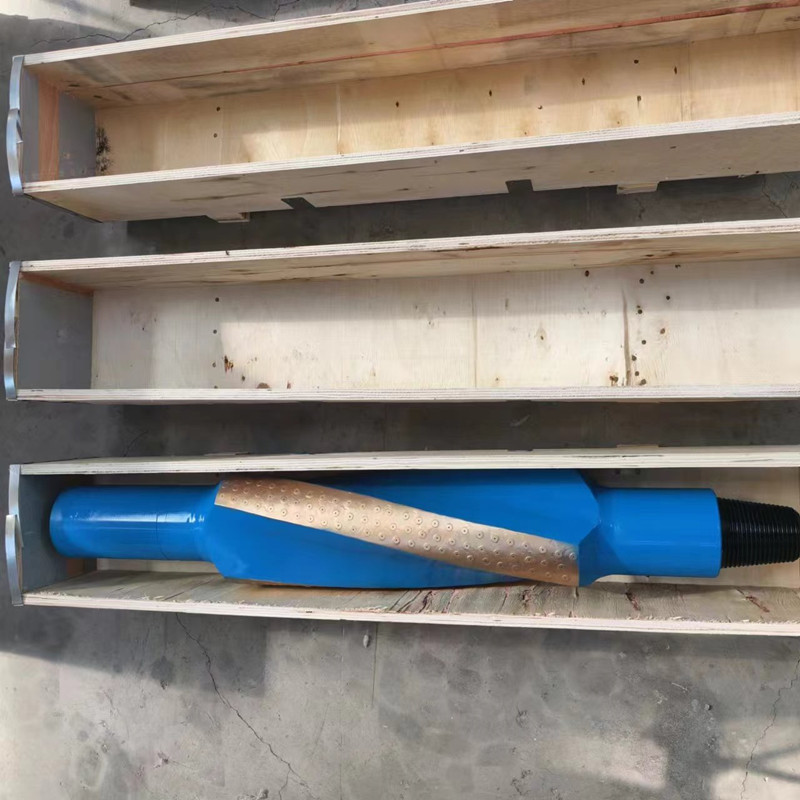

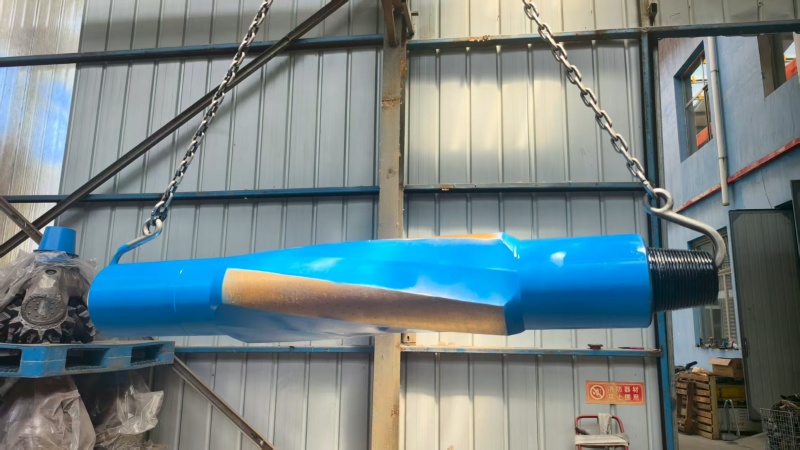

Integral Spiral Blade Drilling Stabilizer
- Model No. : Rotary Drill Rig using Tricone bit
- Blade Type : 3 Blade or 4 Blades
- Product Type : Drill String, Near Bit, Dia.Changeable
- Application : Energy & Mining
- Hs Code : 8431431000
- Certificate : API
- Specification : 6"-42''
Prodrill drilling stabilizer is an essential part of full hole; pendulum and increase the stability decrease the incline in drilling assembly. The high quality tungsten carbide pin could be cold coated in the work surface and on the up and down beveled shoulder.
O.D. 147mm , 1.5M Long Stabilisers are suitable for 152mm Drill Bit with 3 ½” API Reg M/F Threads
O.D. 166mm , 1.5M Long Stabilisers are suitable for 171mm Drill Bit with 3 ½” API Reg M/F Threads
We also could weld carbide particles in the surface according to customer requirements. Stabilizer work with surface hardening and the hardening forms are HF1000, HF2000, HF3000, HF4000, HF5000. Stabilizer size 6"-42".
| Product Name | Drill stabilizer |
| Material | AISI 4145H/AISI 4145H mod/AISI 4340/AISI 4140-4142/non-mag material |
| Hardfacing | HF1000 HF2000 HF3000 HF4000 HF5000 |
| Forging process | ingot-forging-heat treatment-rough machining-UT.MT-Q+T-inspection-finishing machining |
| Heat Treatmet | Normalized/Annealed/Quenched/Tempered |
| Standard | API Spec 7-1 or SY/T5051-91Standard |
Integral Spiral Blade Drilling Stabilizer Technical Parameter
| Size(Code) Inch | Connection Inch | Fishing Neck Inch | Overall Length Inch | Fishing Neck Length Inch | Blade Length Inch | Blade Width Inch |
| 42'' | 8-5/8''REG | 11'' | 120'' | 32'' | 24'' | 6.5'' |
| 36'' | 7-5/8''REG | 9.5'' | 110'' | 30'' | 22'' | 6.5'' |
| 26'' | 7-5/8''REG | 9.5'' | 100'' | 30'' | 20'' | 4'' |
| 17 1/2'' | 7-5/8''REG | 9.5'' | 90'' | 30'' | 18'' | 3.5'' |
| 12 1/4'' | 6-5/8''REG | 8'' | 90'' | 30'' | 18'' | 3'' |
| 8 1/2'' | 4-1/2''IF | 6 3/4'' | 72'' | 28'' | 16'' | 2.25'' |
| 6'' | 3-1/2''IF | 4 3/4'' | 66'' | 28'' | 16'' | 2'' |
