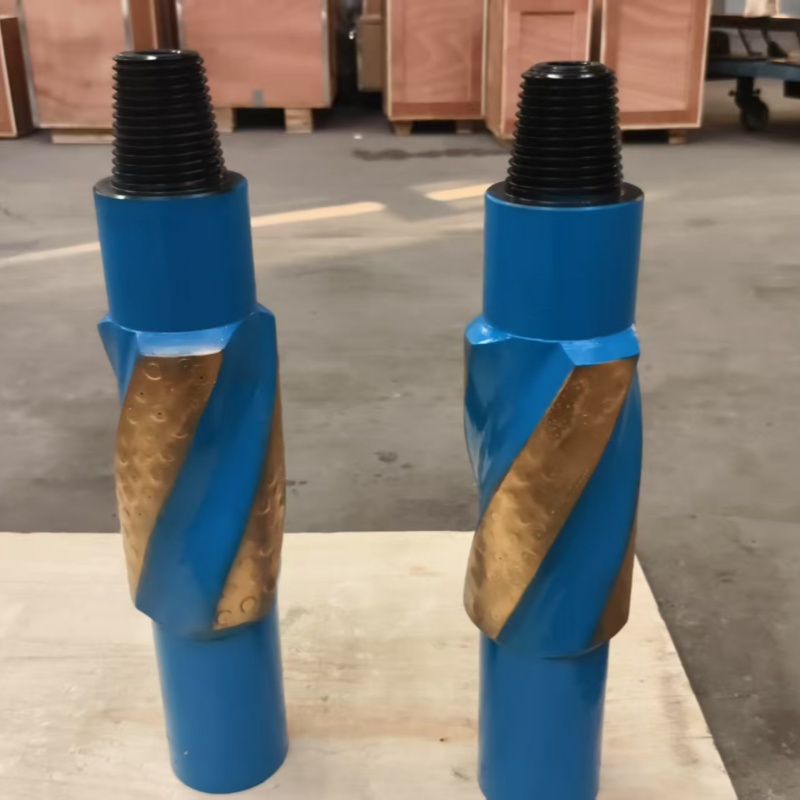

Spiral Stabilizers
- 500m long Stabilizers with the Spiral Section 300mm long :
- O.D.: 110mm

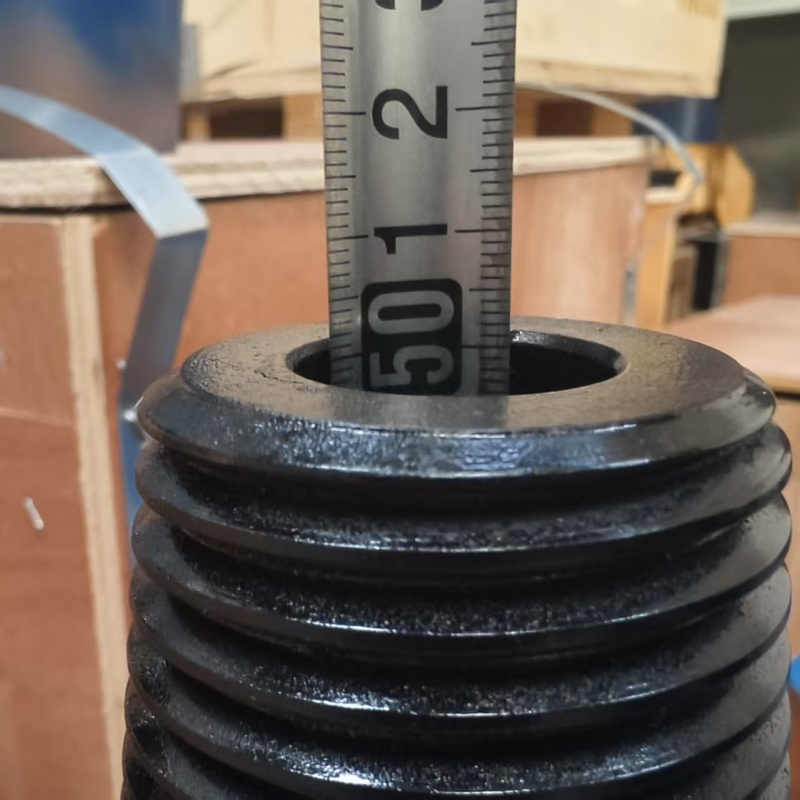

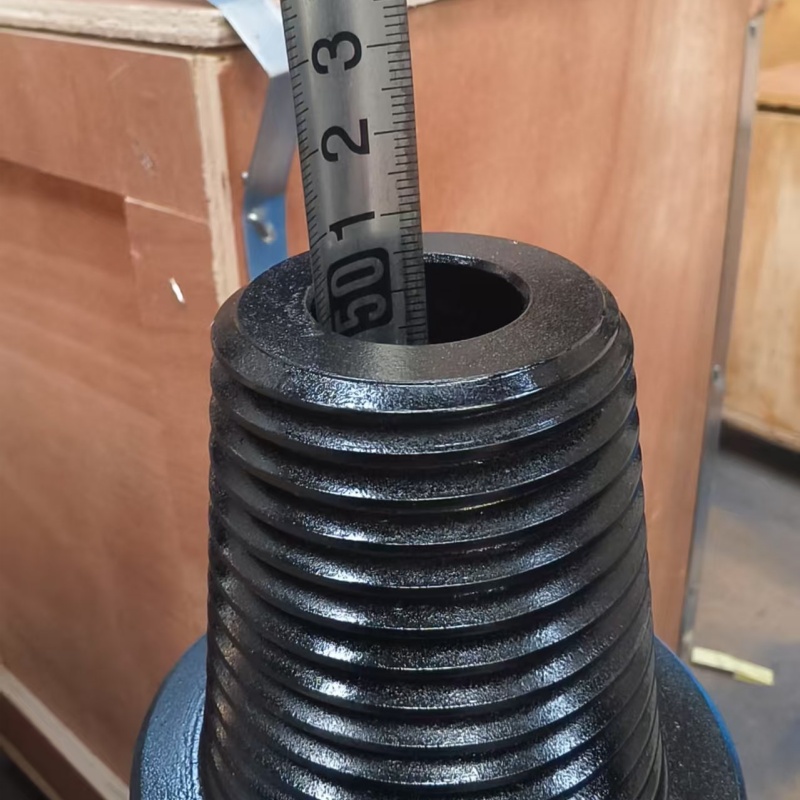

- Threads: 2 3/8" AP Reg Male and and Female
- Length : 500mm
ProDrill ™ Spiral Stabilizer is an essential part of full hole; pendulum and increase the stability decrease the incline in drilling assembly. The high quality tungsten carbide pin could be cold coated in the work surface and on the up and down beveled shoulder.
We also could weld carbide particles in the surface according to customer requirements. Stabilizer work with surface hardening and the hardening forms are HF1000, HF2000, HF3000, HF4000, HF5000. Stabilizer size 6"-42".
| Product Name | Drill stabilizer |
| Material | AISI 4145H/AISI 4145H mod/AISI 4340/AISI 4140-4142/non-mag material |
| Hardfacing | HF1000 HF2000 HF3000 HF4000 HF5000 |
| Forging process | ingot-forging-heat treatment-rough machining-UT.MT-Q+T-inspection-finishing machining |
| Heat Treatmet | Normalized/Annealed/Quenched/Tempered |
| Standard | API Spec 7-1 or SY/T5051-91Standard |
| Size(Code) Inch | Connection Inch | Fishing Neck Inch | Overall Length Inch | Fishing Neck Length Inch | Blade Length Inch | Blade Width Inch |
| 42'' | 8-5/8''REG | 11'' | 120'' | 32'' | 24'' | 6.5'' |
| 36'' | 7-5/8''REG | 9.5'' | 110'' | 30'' | 22'' | 6.5'' |
| 26'' | 7-5/8''REG | 9.5'' | 100'' | 30'' | 20'' | 4'' |
| 17 1/2'' | 7-5/8''REG | 9.5'' | 90'' | 30'' | 18'' | 3.5'' |
| 12 1/4'' | 6-5/8''REG | 8'' | 90'' | 30'' | 18'' | 3'' |
| 8 1/2'' | 4-1/2''IF | 6 3/4'' | 72'' | 28'' | 16'' | 2.25'' |
| 6'' | 3-1/2''IF | 4 3/4'' | 66'' | 28'' | 16'' | 2'' |
