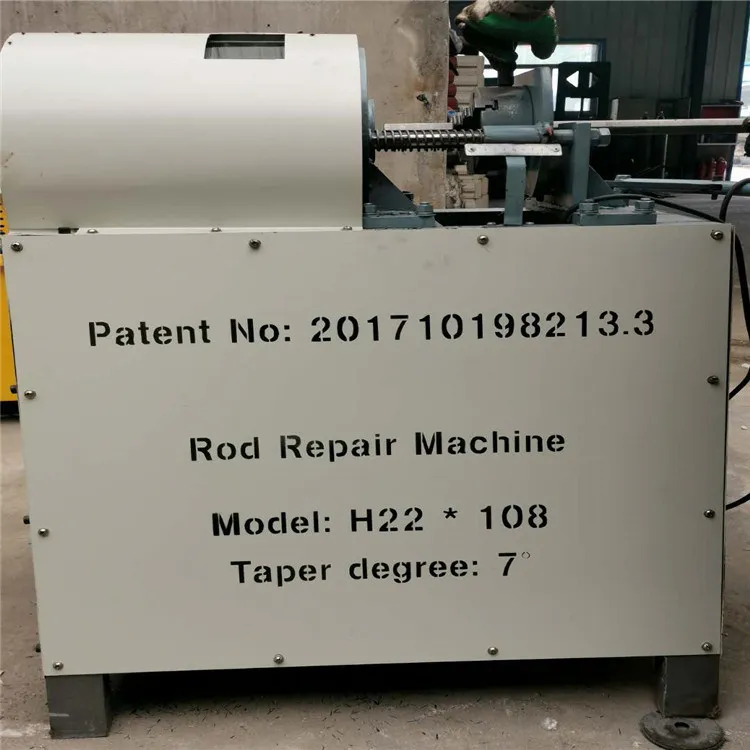

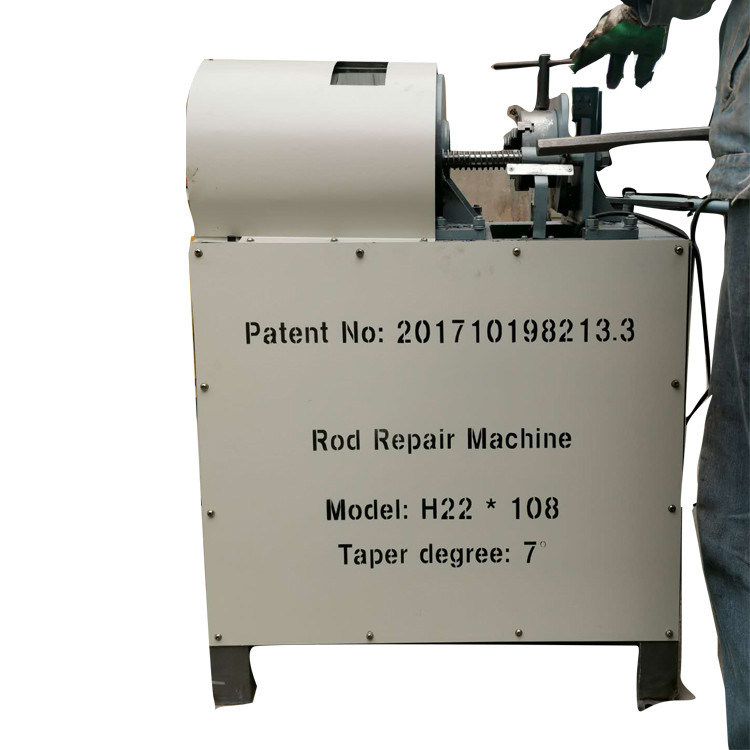

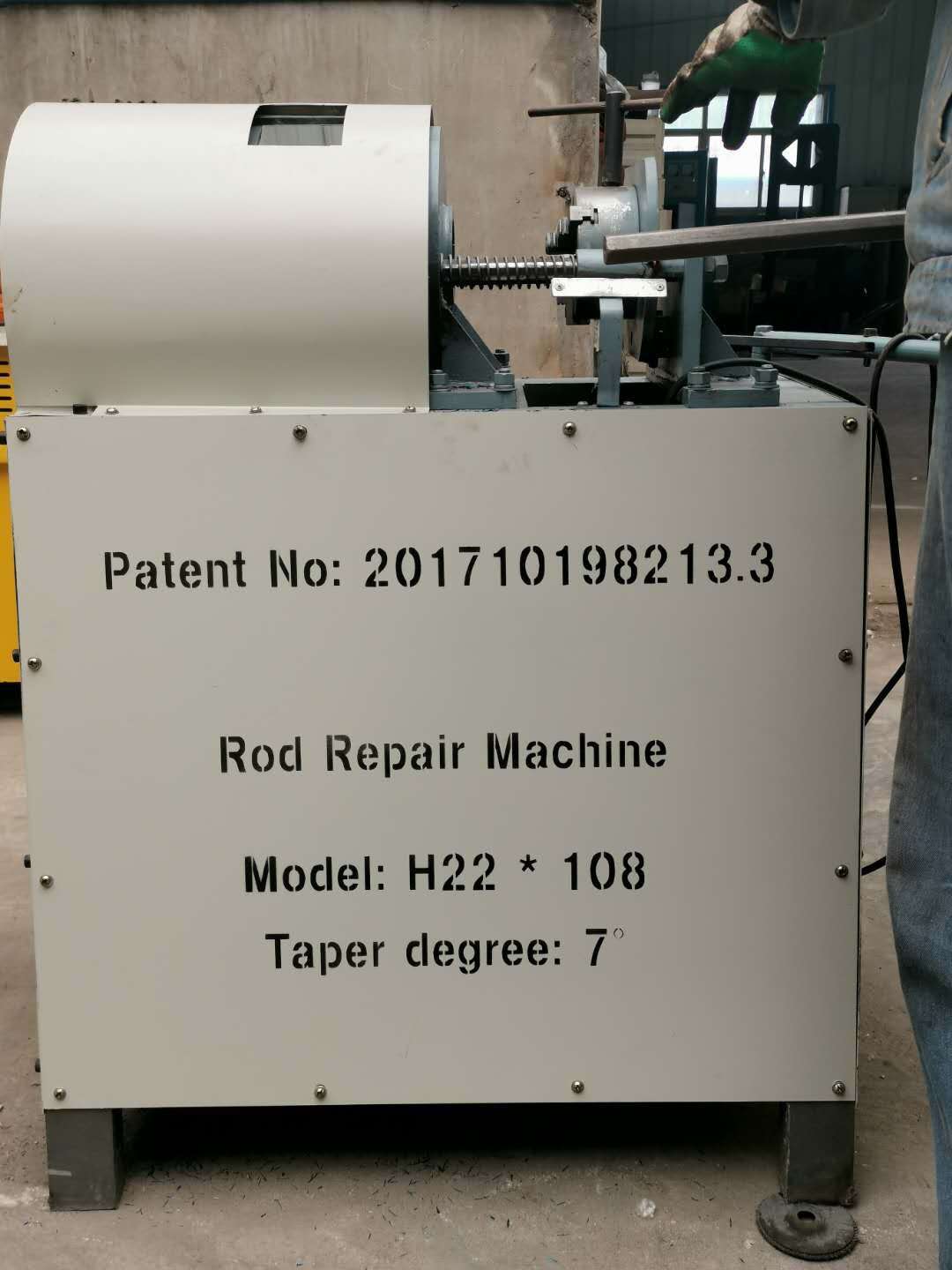

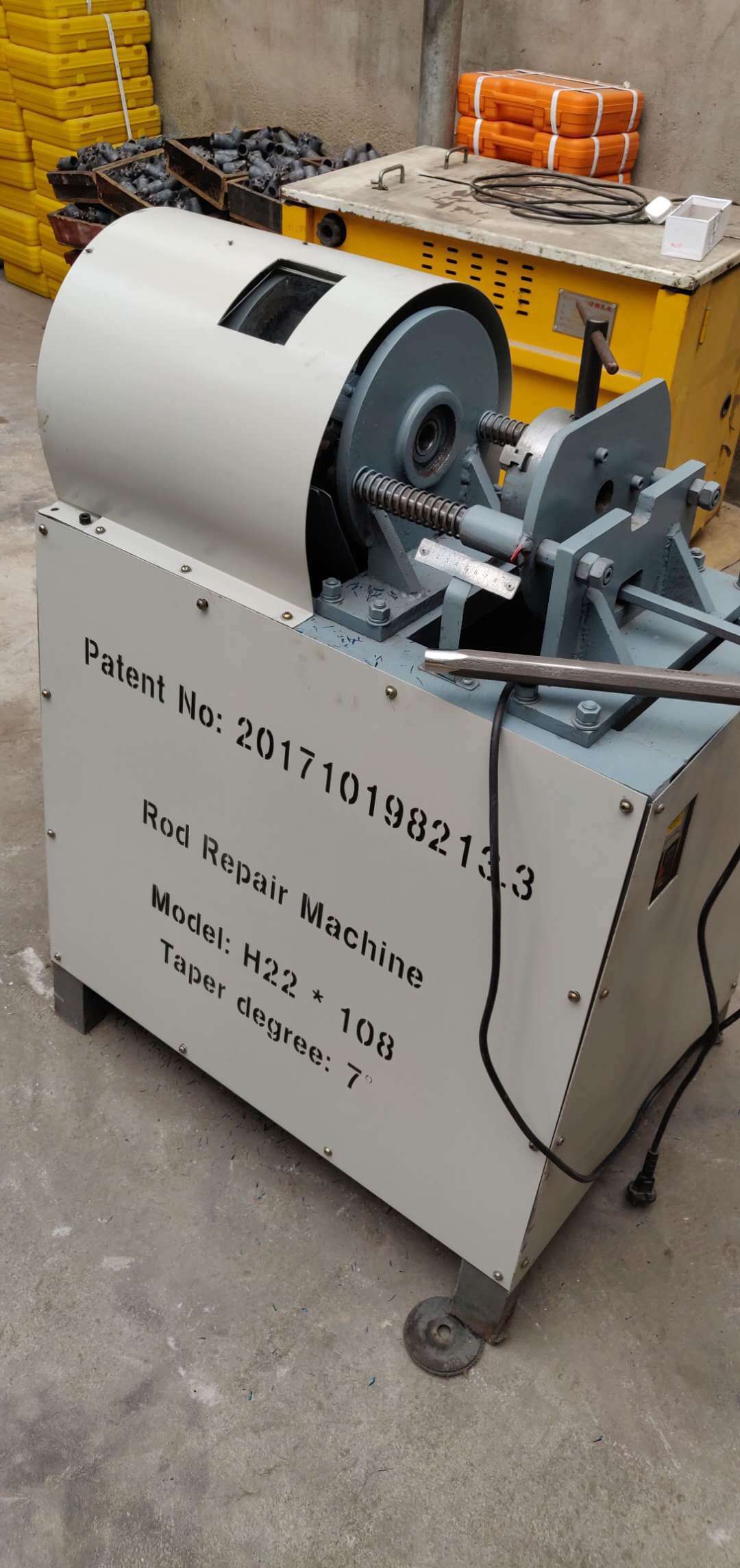

Taper Rod Repair Machine
- The product is mainly used to restore the function of the :
- H22 drill rod after damage, and improve the utilization of the :
- product. :
- Rate, easy to operate, practical and efficient.:
Equipment parameters
Shape size: long 735mm high 1010mm wide 595mm
Weight 120Kg
Using voltage 380V 50Hz
The main mechanism of the equipment

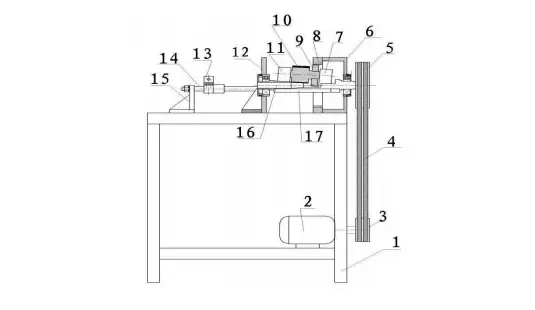

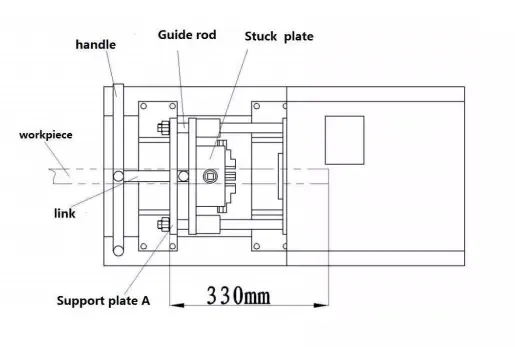

The main structure of the equipment is shown in Figure, with the main body and the workpiece tightened.Cutting mechanism, shield and other mechanisms.
1- base 2- motor 3- pulley 1 4- triangular belt 5- pulley 2 6- bearing 1 7- tool rack 1 8- gear 1
9- gear 2 10- hob 11- tool holder 2 12- bearing 2 13- tighten the chuck 14- slider 15- support plate
16- cone axis 17- angle plate
Installation of equipment
Ensure the level and firmness of the equipment at the time of installation, and the place of installation should be paid
attention to the operation, maintenance and repair of the equipment.
Lubrication of equipment
Before the equipment work, it is necessary to check and check the lubrication condition, so as to determine the quality,
quality, quantity and position of the equipment. Fixed-point lubrication to ensure the normal operation of the equipment and improve the service life.
Equipment operation
1.Connect the power supply and let the equipment run empty for 1-2 minutes.
2.Move the handle to the chuck close to the support plate A.
3.Marking the end of the distance brazing rod at the end of 330mm.
4.Put the rod into the chuck.The identification of the step 6.3 brazing rod is aligned with the outer edge of the support plate A, and the workpiece is tightened.
5.Slowly moving the handle, the speed of about 1-1.2mm/seconds, Repair of brazing rod at uniform speed.
