DTH Bit M60-165mm
- Advantage :concave bit orientation, good hole straightness, three drainage holes, smooth exhaust and fast slag discharge
- Code No.: M60-165
- Diameter: 165mm
- Air Holes No.: 3
- Gauge Buttons: 9*18mm
- Face Buttons: 6*16mm
- Concave Buttons : 4*16mm
- Face Design: Concave
- Carbide Design: Dome
- Apporx. Weight: 27.0KGS
Rock drilling tools manufacturer ProDrill offers a comprehensive range of DTH drill bits,DTH hammer bits,DTH button bits ,DTH carbide bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)
Concave Face
The all around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
Gauge Buttons:8*18mm, Face Buttons:4*16mm, Convex Buttons:4*15mm

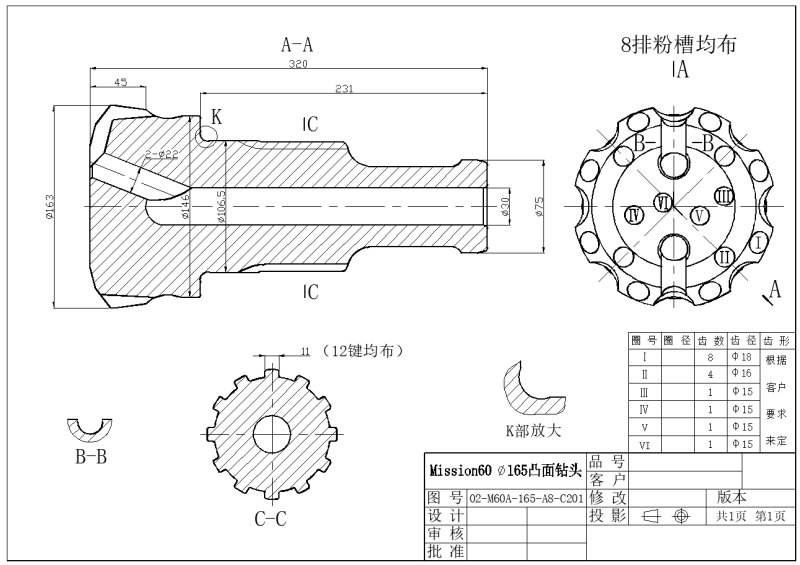

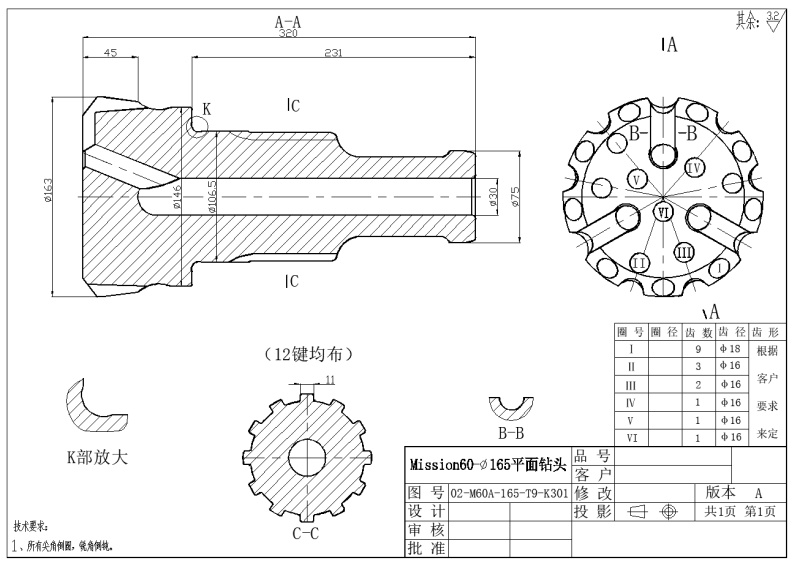

DTH Bit Mission60-165 design drawing for blasting hole drilling in open pit mine , such as Iron Ore , Cooper , Gold etc.
DTH Bit M60-165mm Lao Cai Copper Mine, Vietnam

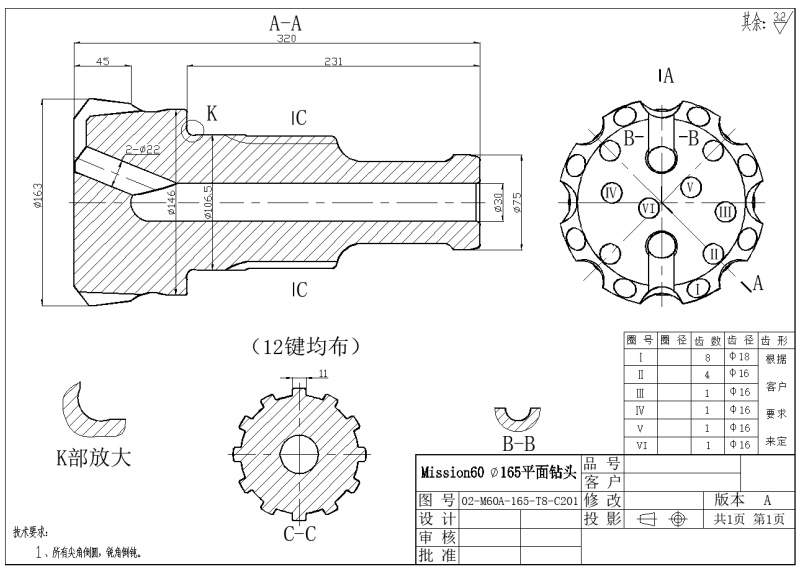

M shank DTH drill bit with flat face, 19 dome carbide buttons for blasting bore holes, water well drilling.
For more details please watch PDF online: DTH hammer bits with M shanks Catalogue
