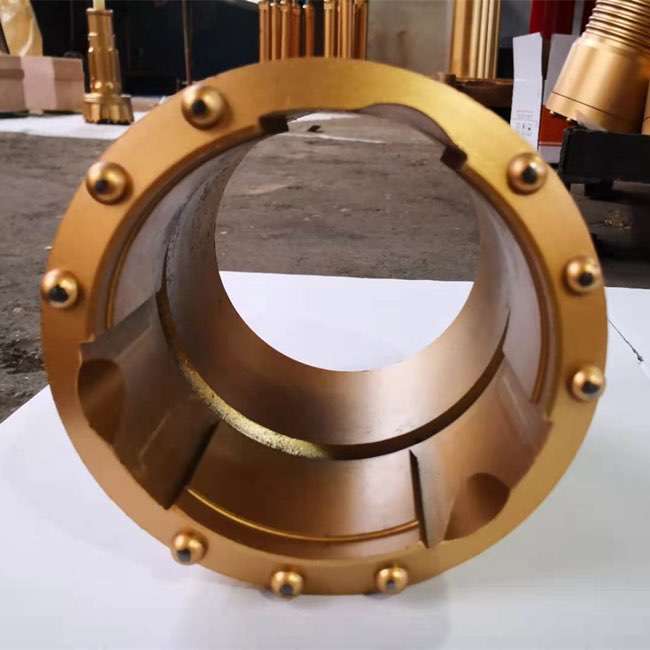

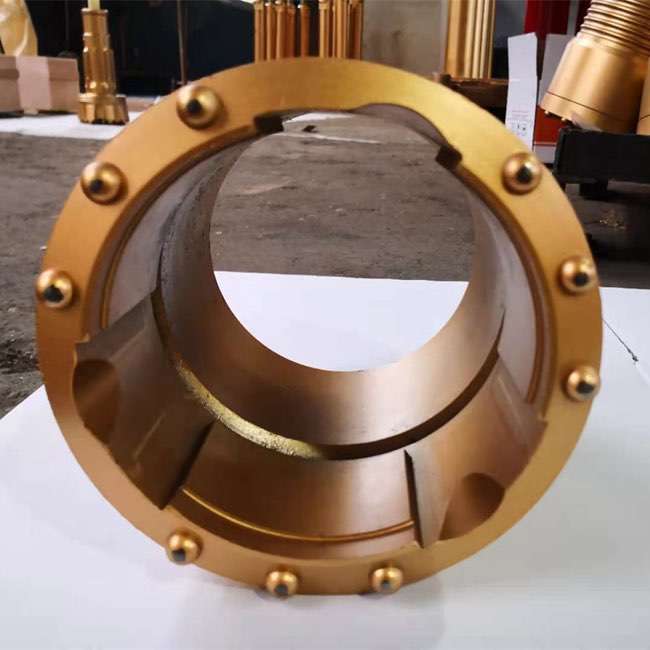

Reamer set of casing shoe plus ring bit for SOD 168 symmetric casing systems
Rock drilling tools manufacturer ProDrill: Permanent symmetric drilling system by dth hammer is designed to drill and case a hole simultaneously through unstable ground conditions. The pilot bit incorporated with a satisficial ring or reusable ring makes a full face head design which significantly improves the penetration rate and hole straightness in drilling. The internal flushing grooves together with the built-in casing shoes gives a good seal to the button of the drilling hole, and thus minimizing the disruption of the surrounding of the drill hole. Ring bit as reaming set composed of casing shoes.plus ring bit with TCI for SOD 168 symmetric/concenttic casing overburden drilling.systems.

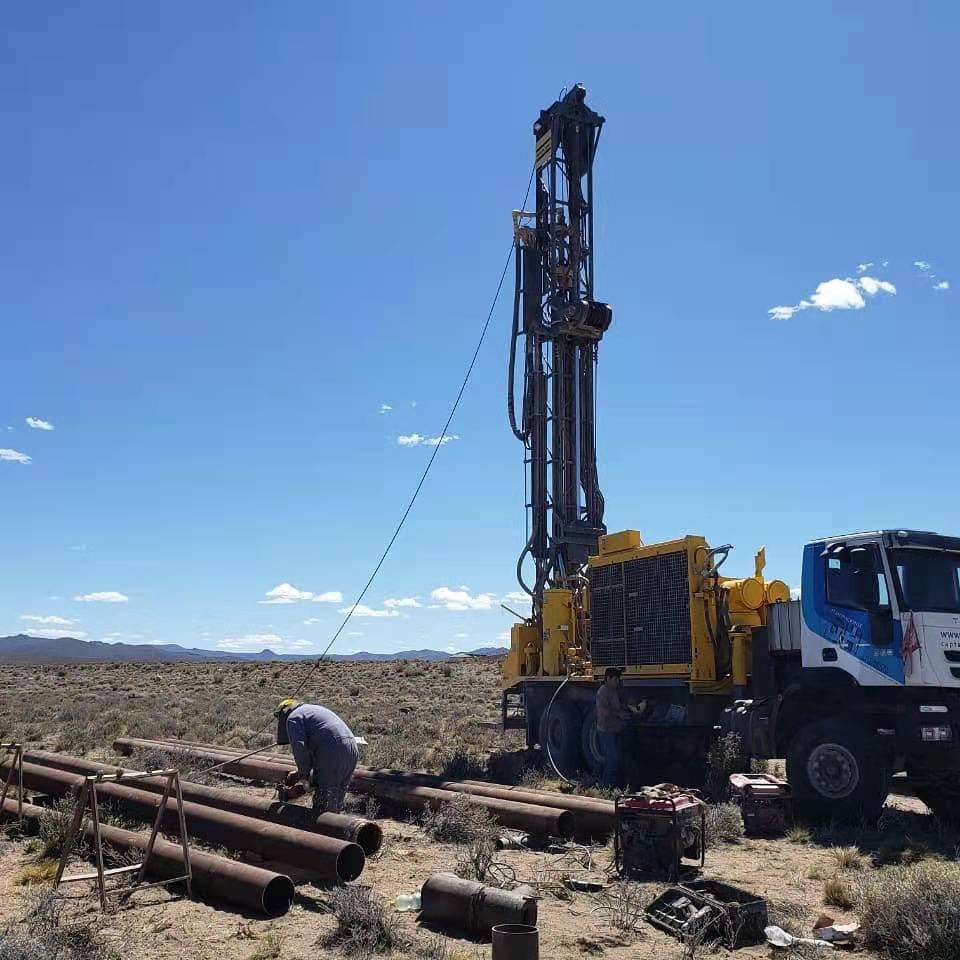

Suitable for drilling water wells, geothermal wells, short mircopiles, medium mini-type grouting hole of building, dam and harbor project.

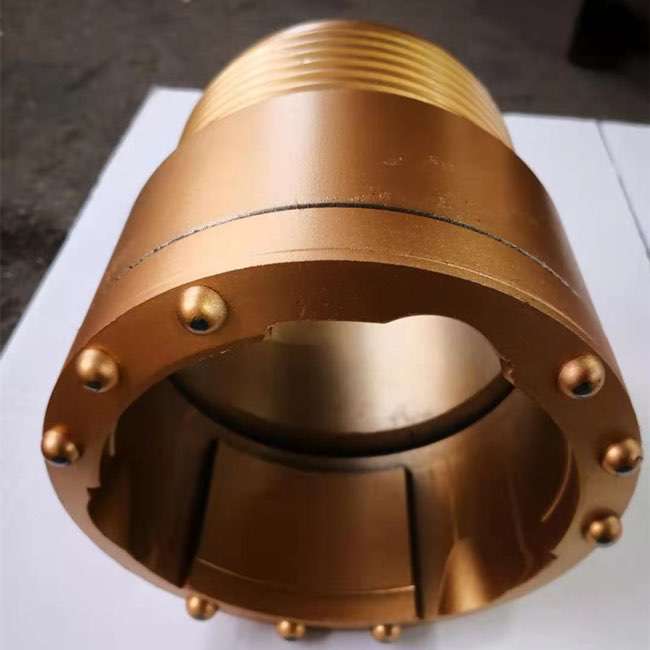

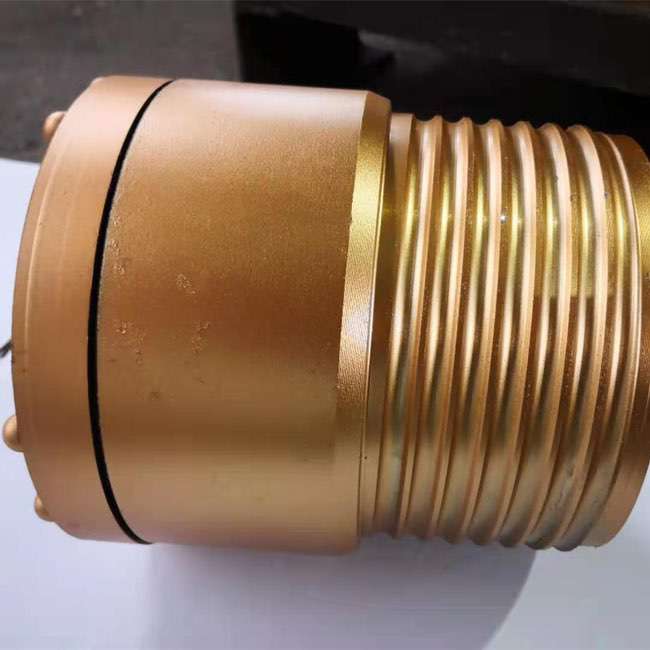

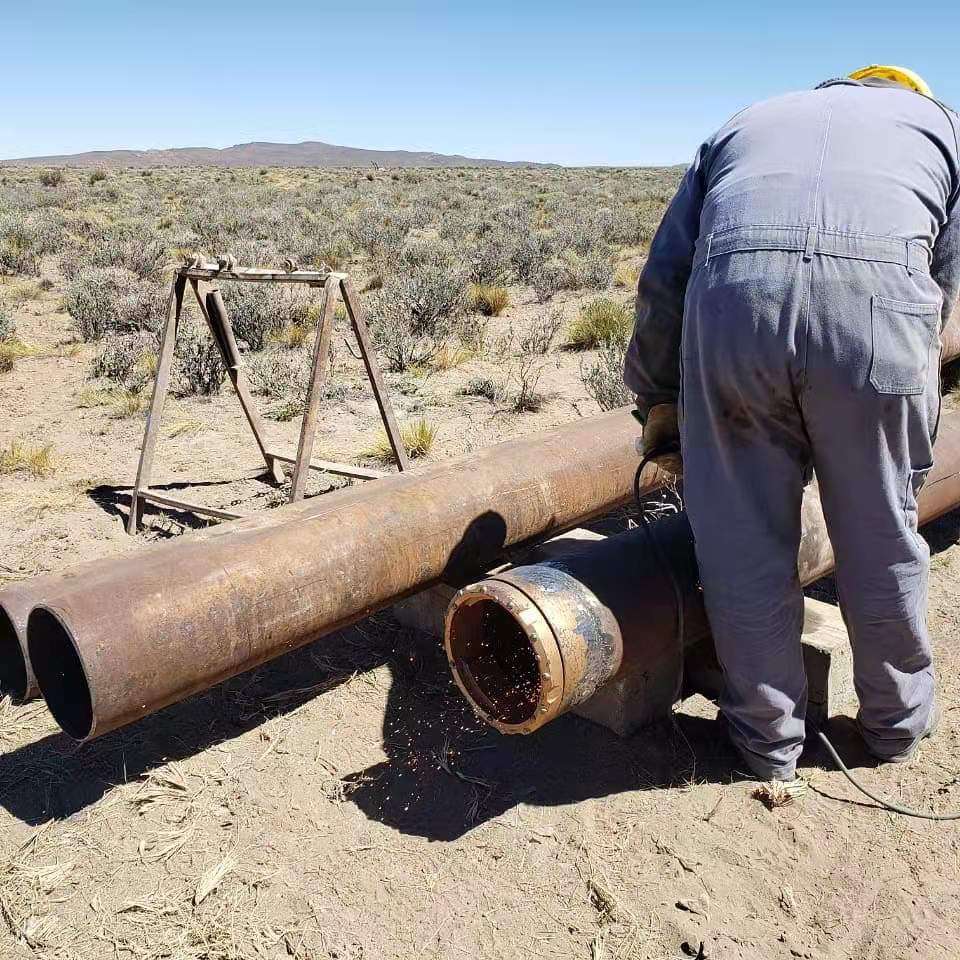

1. Rock drill bits: Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit’s upper shoulder engages the shoulder of the casing shoe.
2. Hammer’s percussive energy is transferred through the pilot and ring bits, crushing rock . Part of impact energy advances casing.

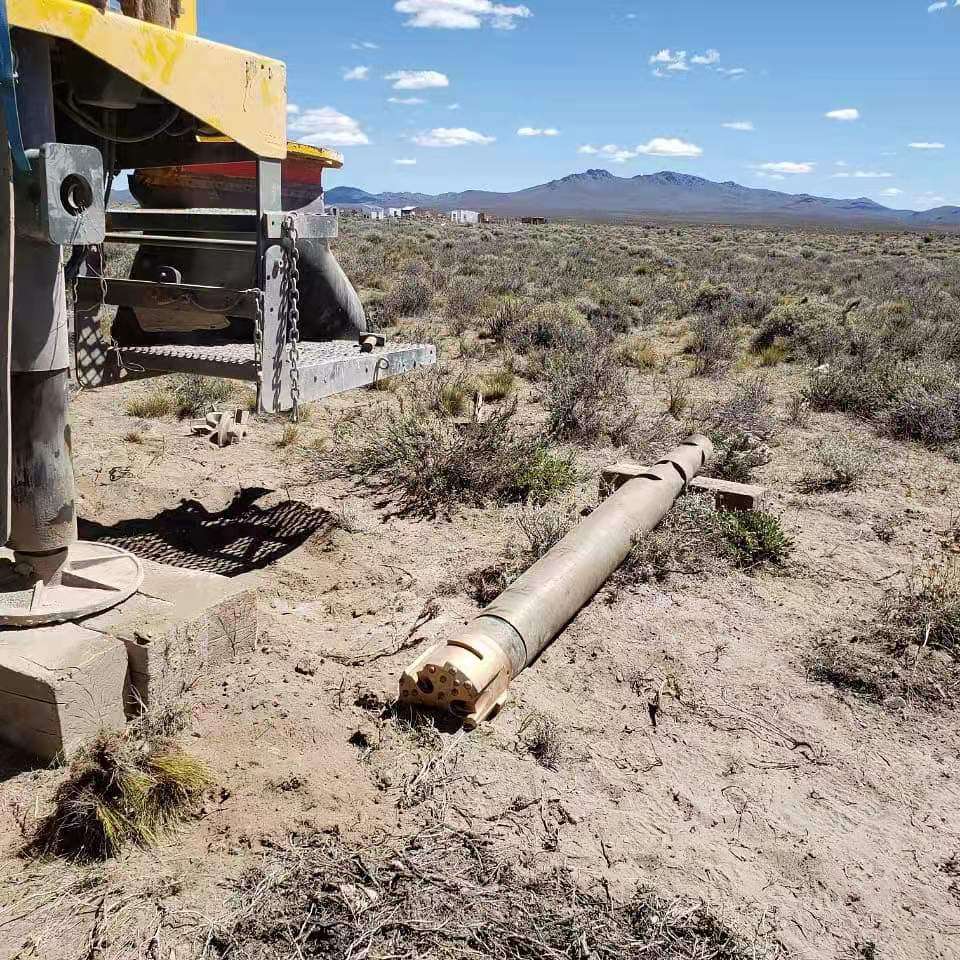

3. On completion of drilling and casing , the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling . The ring bit stays in the hole , and can be recovered only if the casing is retrieved.
Suitable for drilling water wells, geothermal wells, short mircopiles, medium mini-type grouting hole of building, dam and harbor project.
1. Rock drill bits: Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit’s upper shoulder engages the shoulder of the casing shoe.
2. Hammer’s percussive energy is transferred through the pilot and ring bits, crushing rock . Part of impact energy advances casing.
3. On completion of drilling and casing , the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling . The ring bit stays in the hole , and can be recovered only if the casing is retrieved.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
SOD168-Permanent Symmetrix Casing System by DTH Hammer:

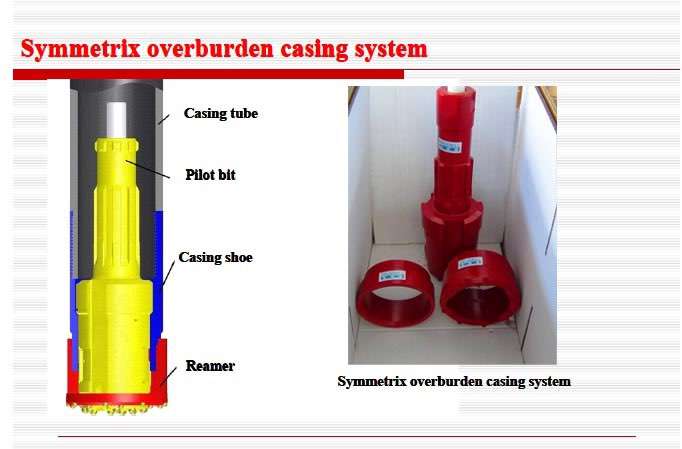

Symmetric Overburden Casing System:
A complete set of symmetric overburden drilling system
For more details please watch PDF online: Permanent Symmetric Casing System by DTH Hammer Catalogue
