Rock drilling tools manufacturer ProDrill: Symmetric drilling system is designed to drill and case a hole simultaneously through unstable ground conditions. The driver bit incorporated with a satisficial ring or reusable ring makes a full face head design which significantly improves the penetration rate and hole straightness of drilling. The internal flushing grooves together with the built-in casing shoes gives a good seal to the button of the drilling hole, and thus minimizing the disruption of the surrounding of the drill hole.

SOD114 Symmetrica Casing System

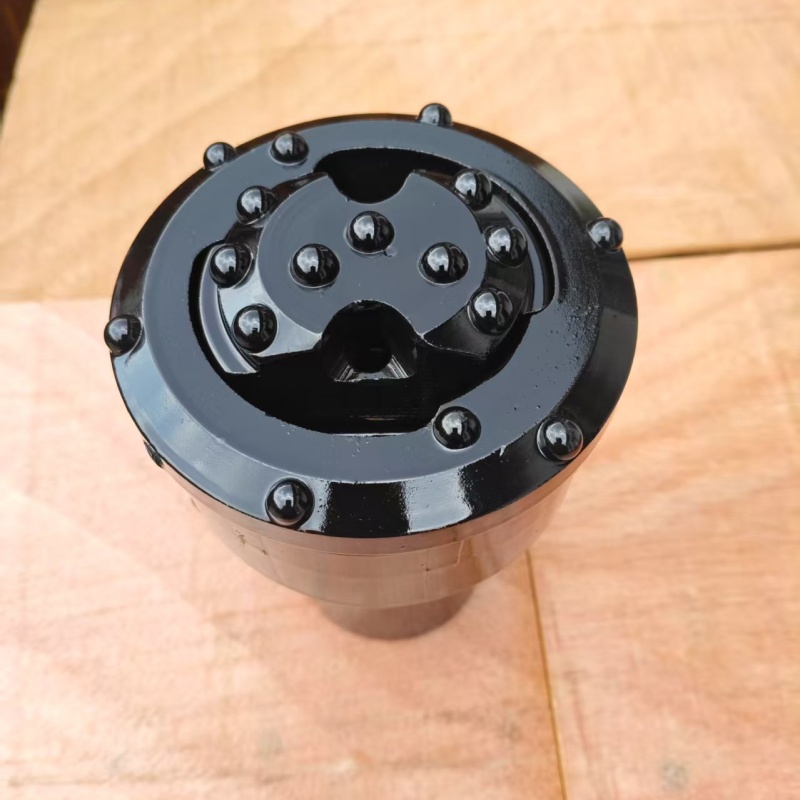

Top Hammer Pilot Bit of SOD114

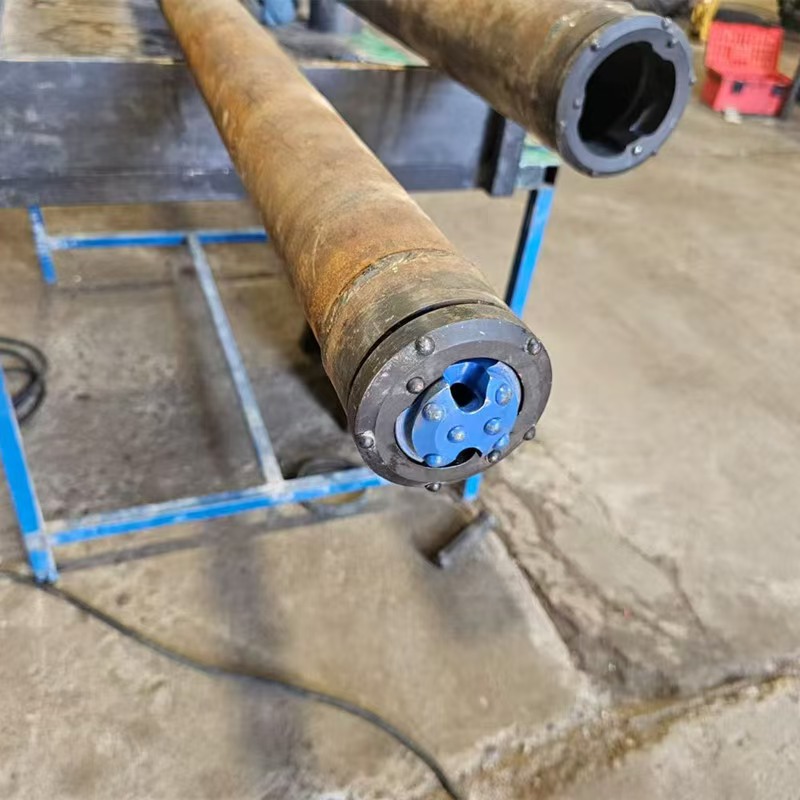

Tracking tubes dia 88.9, 3.0 meters, wall thickness 8mm quality n80 api 5ct, male thread one one end and femail thread on the other end.

Application Range:

Suitable for drilling water wells, geothermal wells, medium mini-type grouting hole of building, dam and harbor project.

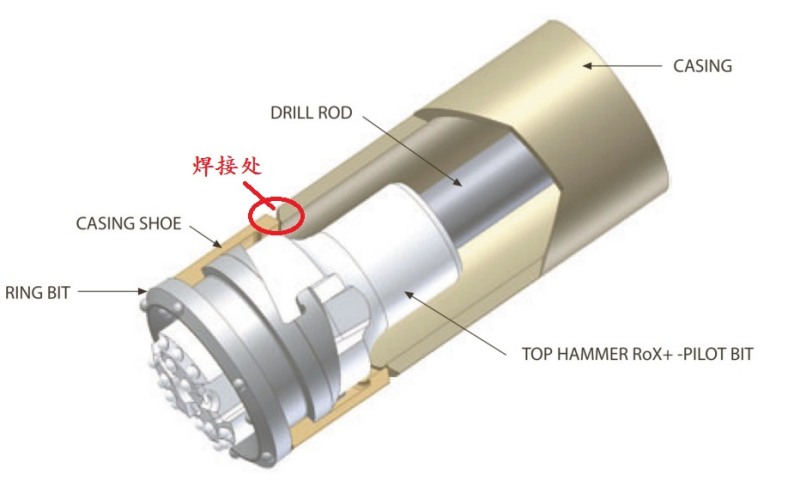

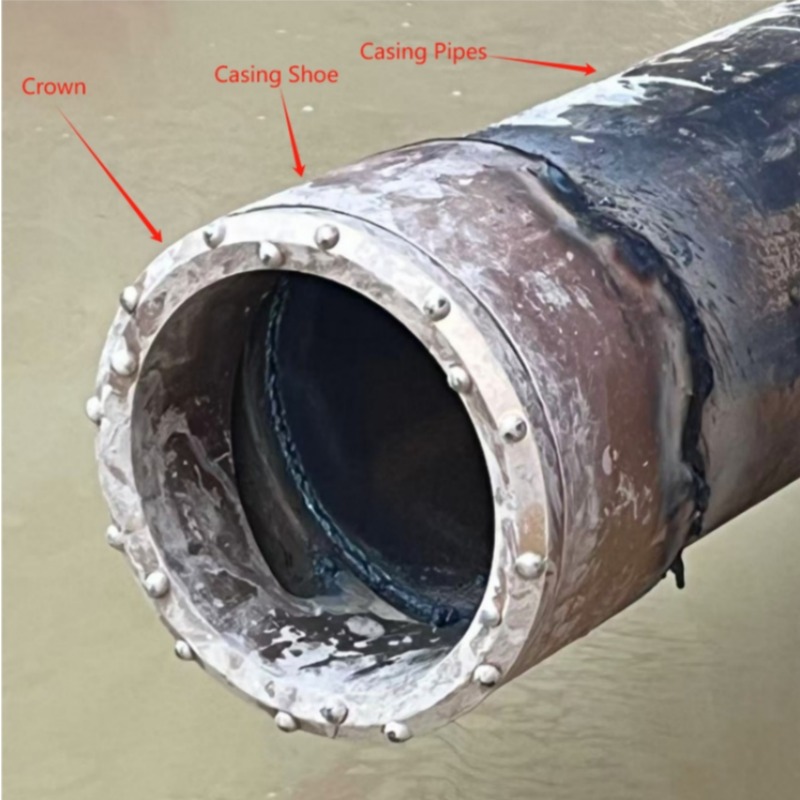

1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit's upper shoulder engages the shoulder of the casing shoe.
2. Top hammer's percussive energy is transferred through the pilot and ring bits, crushing rock. Part of impact energy advances casing.
3. On completion of drilling and casing, the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling. The ring bit stays in the hole, and can be recovered only if the casing is retrieved.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
