Q14-102-T45 Retrac Button Bit

  • Code No.: Q14-102-T45-RC
  • Thread: T45
  • Diameter: 102mm
  • Gauge Buttons: 8
  • Front Buttons: 6
  • Skirt Design: Retrac
  • Face Design: Drop Center
  • Carbide Design: Dome

Q14-102-T45 Retrac Button Bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

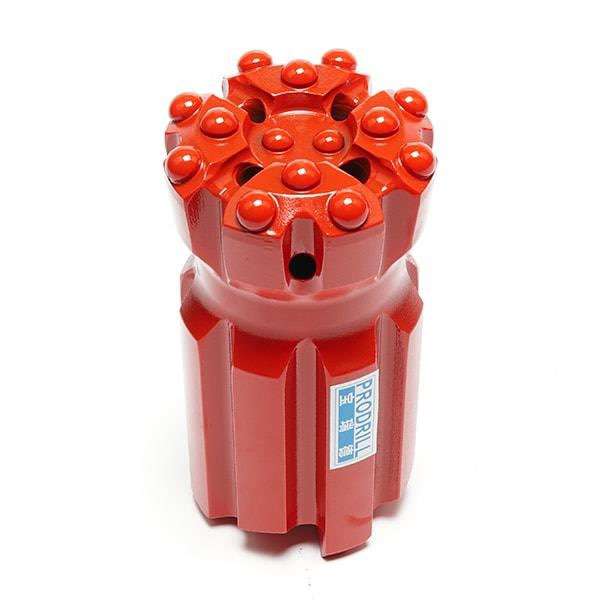

Q14-89mm-RC-Tungsten-Carbide-Thread-Button-Bit

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, drop Center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

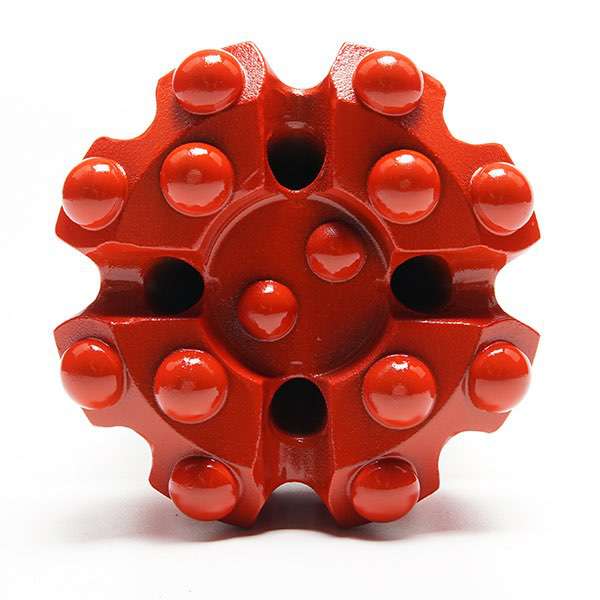

Q14-89mm-RC-Tungsten-Carbide-Thread-Button-Bit (1)

T45 Threaded Drill Bit with drop center face design.

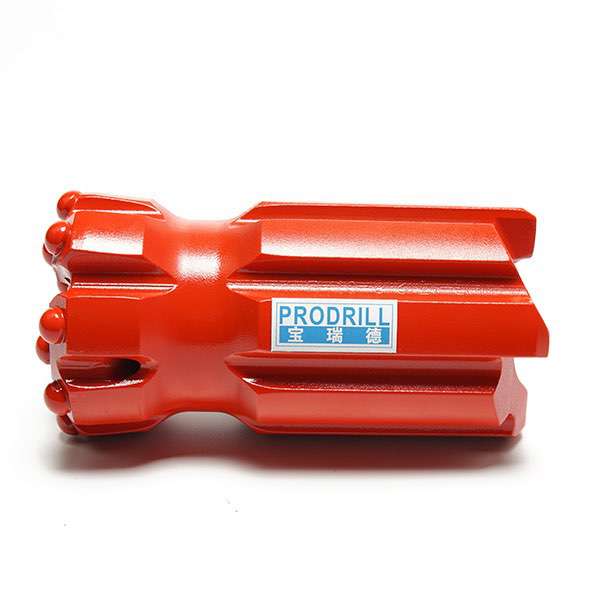

Q14-89mm-RC-Tungsten-Carbide-Thread-Button-Bit (3)

ea3c2e18a55c1b5026542582dff1f43


1

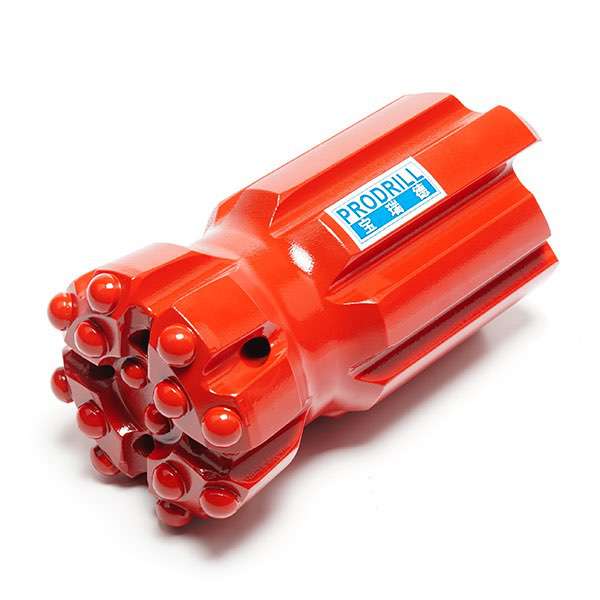

14 Dome Buttons, 102mm Diamter, T45 Thread, Retrac body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.



PDFFor more details please watch PDF online: T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
