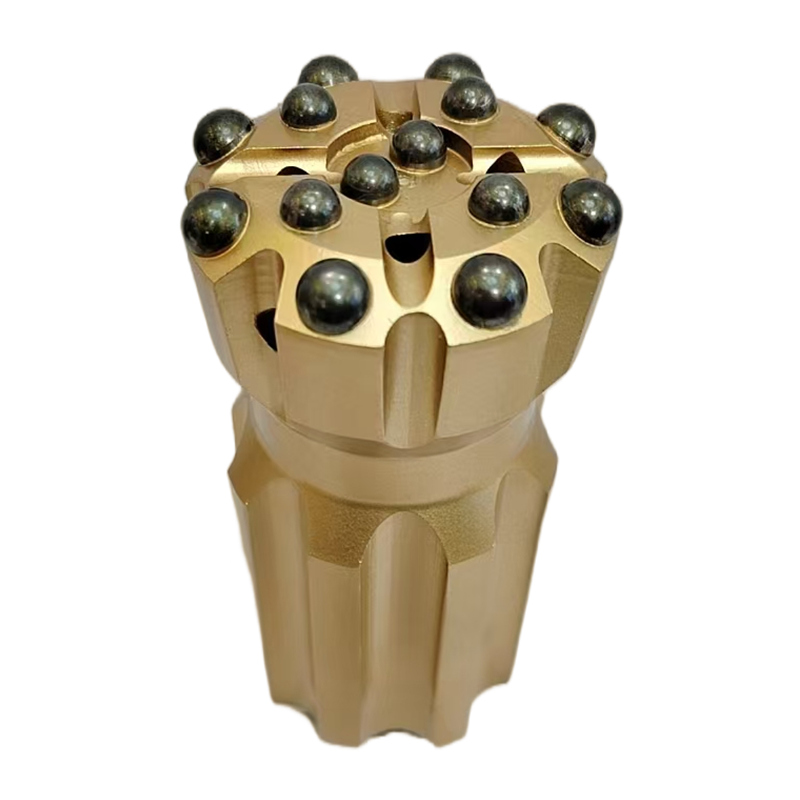

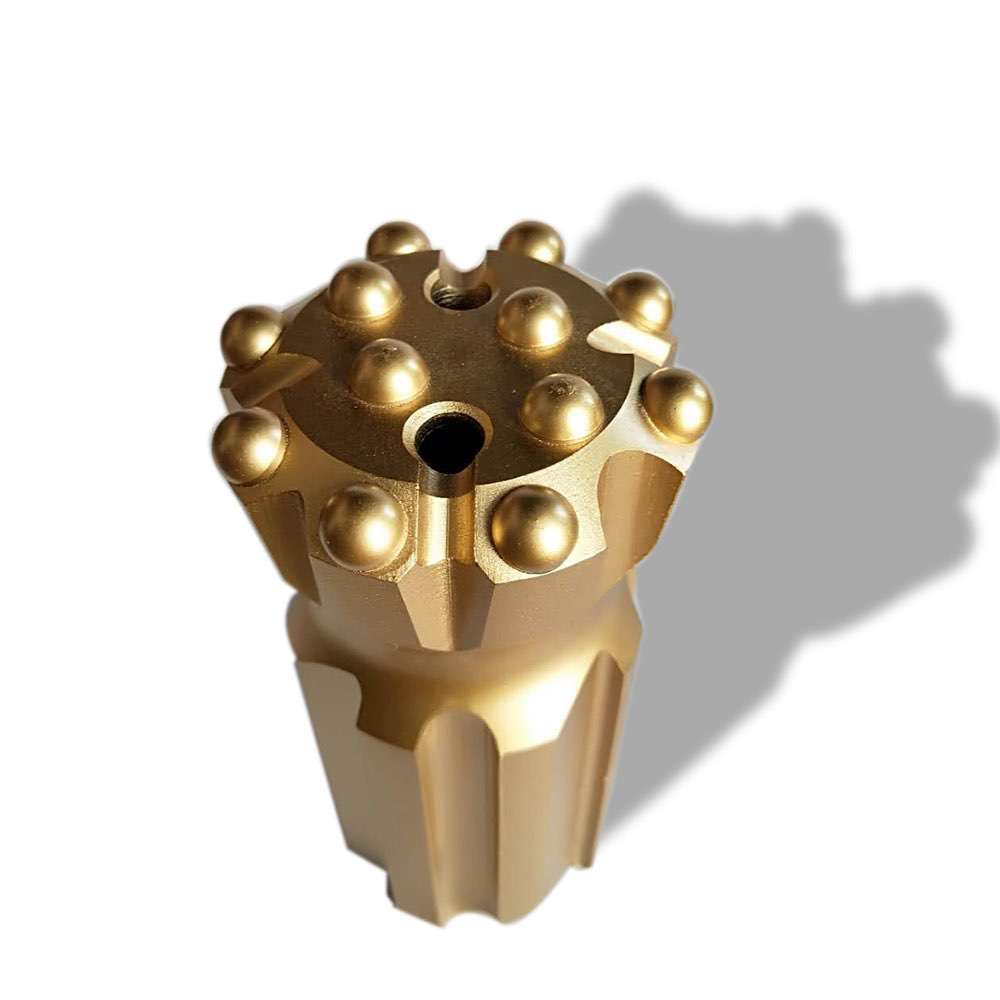

T45-76-13 button DC retrac parabolic bit

T45-76-13 button DC retrac parabolic bit

Product details

Rock drilling tools factory ProDrill manufactures rock drill bits: Q13T45 button DC retrac parabolic bit is the most important size for benching and long-hole drilling underground

Top hammer button BIT T45-76-13 button DC retrac parabolic bit, heavy duty, 13mm*8+12mm*5 ,Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, Drop Center

Carbide shape: Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.


  • Code No.: Q13-76-T45
  • Thread: T45
  • Diameter: 76mm
  • Gauge Buttons: 8*11mm
  • Front Buttons: 4*11mm
  • Skirt Design: Standard
  • Carbide Design: Dome
  • Face Design: Flat
