Q14-115-T51 Threaded Button Bit

  • Code No.: Q14-115-T51
  • Thread: T51
  • Diameter: 115mm
  • Gauge Buttons: 8
  • Front Buttons: 6
  • Carbide Design: Dome, Ballistic
  • Face Design: Convex
  • Skirt Design: Standard

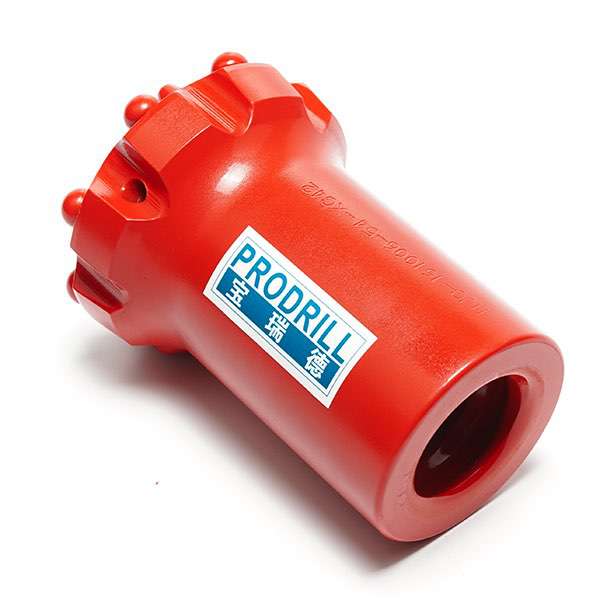

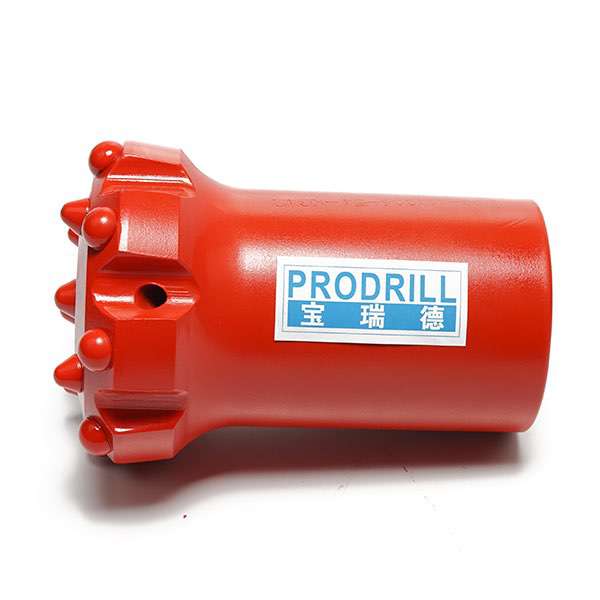

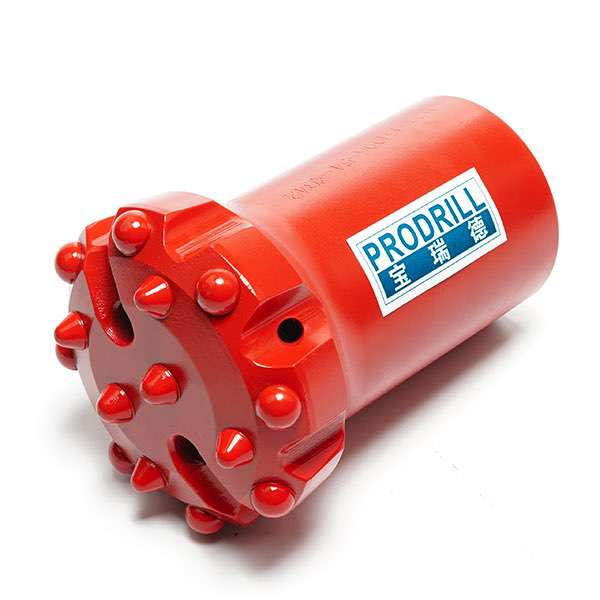

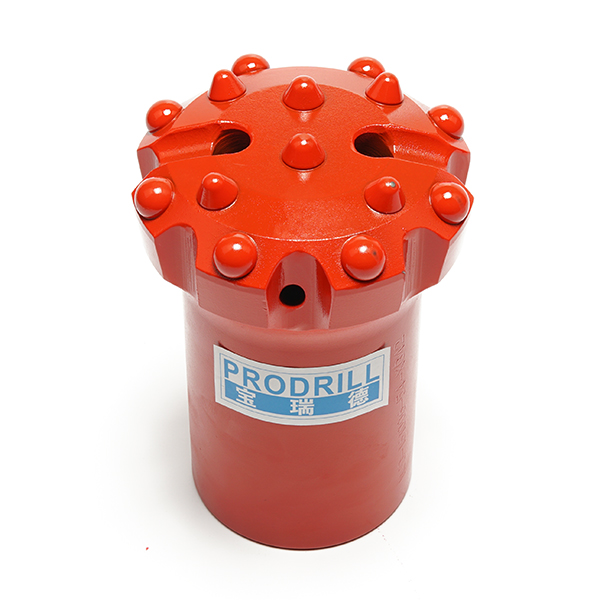

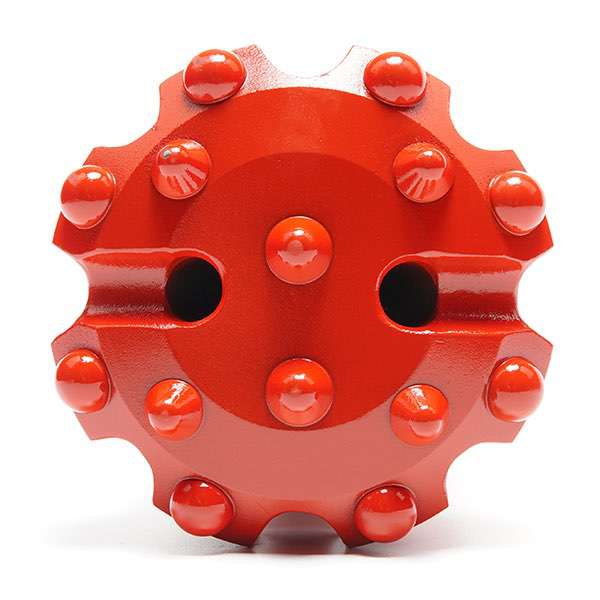

Q14-115-T51 Threaded Button Bit

threaded button bit
threaded button bit
threaded button bit
threaded button bit
threaded button bit

Product details


Rock drilling tools manufacturer ProDrill manufactures high quality rock drill bits, one of the most important size for benching and long-hole drilling underground is T51 Threaded Button Bit

Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, Drop Center
Carbide shape:  Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer drilling tools.
T51 Threaded Button BitT51 Threaded Button BitT51 Threaded Button Bit


8 Dome, 6Ballistic carbide inserts T51 threaded drill bit with drop center face design, 115 mm diameter match with extension drill steels.


121d78cd073a4d27286576164470dcb

T50 Power ROC


3db4cdc54d07f5dd81e7a041847a5ec


920bb0a47b5931d3f09219462691476

Sandvik Top hammer drill rig RANGER DX700 using ProDrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.

PDFFor more details please watch PDF online: T51 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
