Q15-152-T51 Threaded Button Bit

  • Code No.: Q15-152-T51
  • Thread: T51
  • Diameter: 152mm
  • Gauge Buttons: 8
  • Front Buttons: 7
  • Carbide Design: Dome
  • Face Design: Drop Center
  • Skirt Deign: Standard

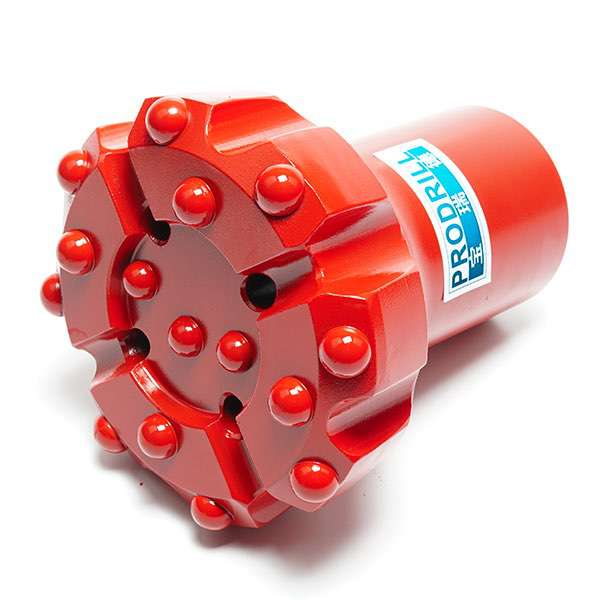

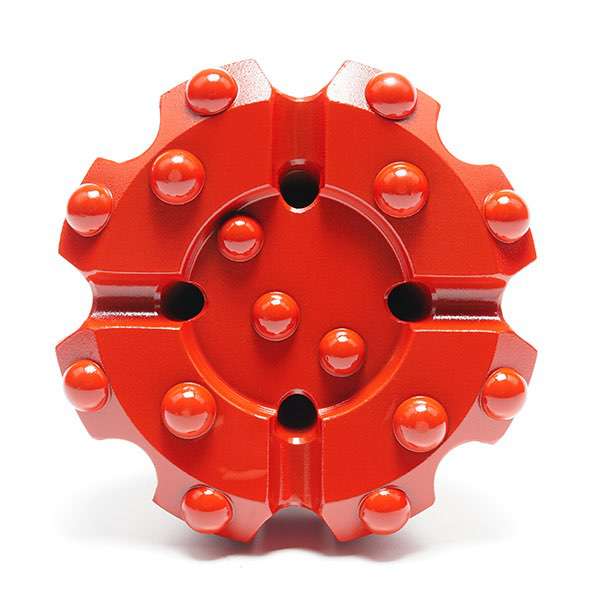

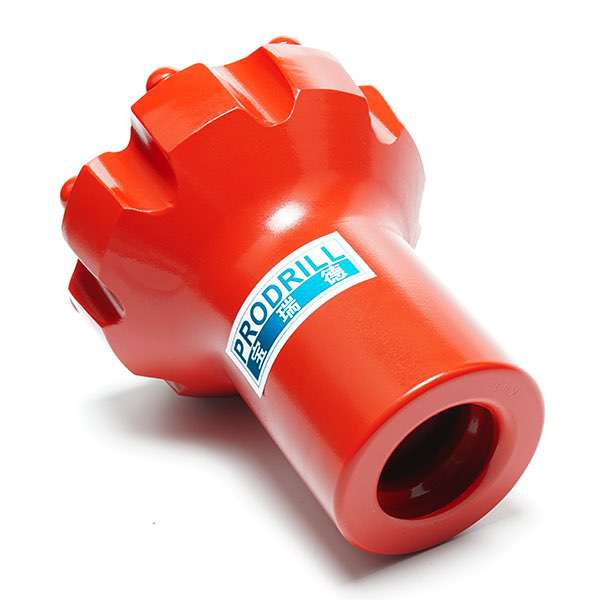

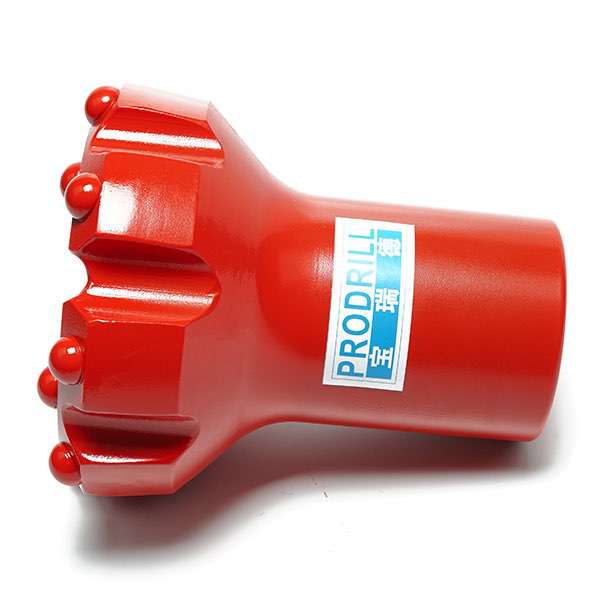

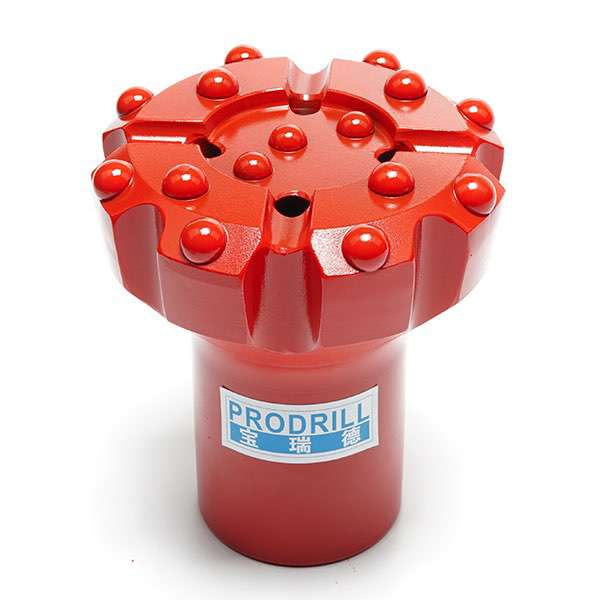

Q15-152-T51 Threaded Button Bit

Threaded button bit
Threaded button bit
Threaded button bit
Threaded button bit
Threaded button bit

Product details

Rock drilling tools manufacturer ProDrill manufactures high quality rock drill bits, one of the most important size for benching and long-hole drilling underground is T51 Threaded Button Bit

152mm Diameter T51 Threaded Button Bit

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, Drop Center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer drilling tools.

Drop Center Face T51 Threaded Button Bit

Dome Button T51 Threaded Button BitT51 Threaded Drill BitT51 Threaded Drill Bit

15 Dome carbide inserts T51 threaded drill bit with drop center face design, 152 mm diameter match with extension drill steelsDrop center bits (DC) are well suited for drilling straighter holes in less abrasive and less consolidated rock at a faster rate.


T51-115-15Button Drop Center Retrac Button Bit, Carbide Layout 14mm*8+13mm*7

PDFFor more details please watch PDF online: T51 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
