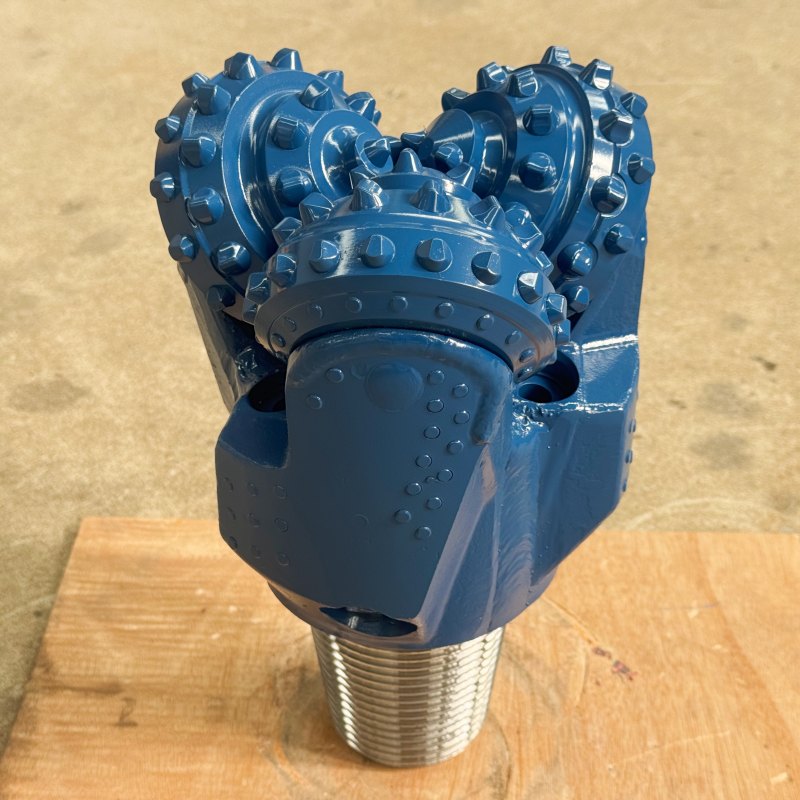

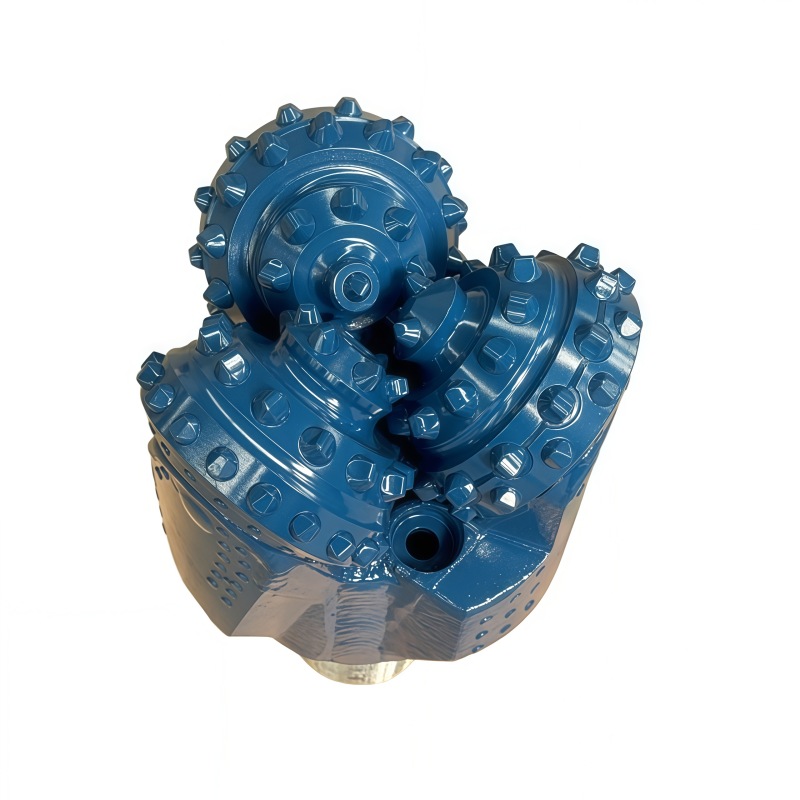

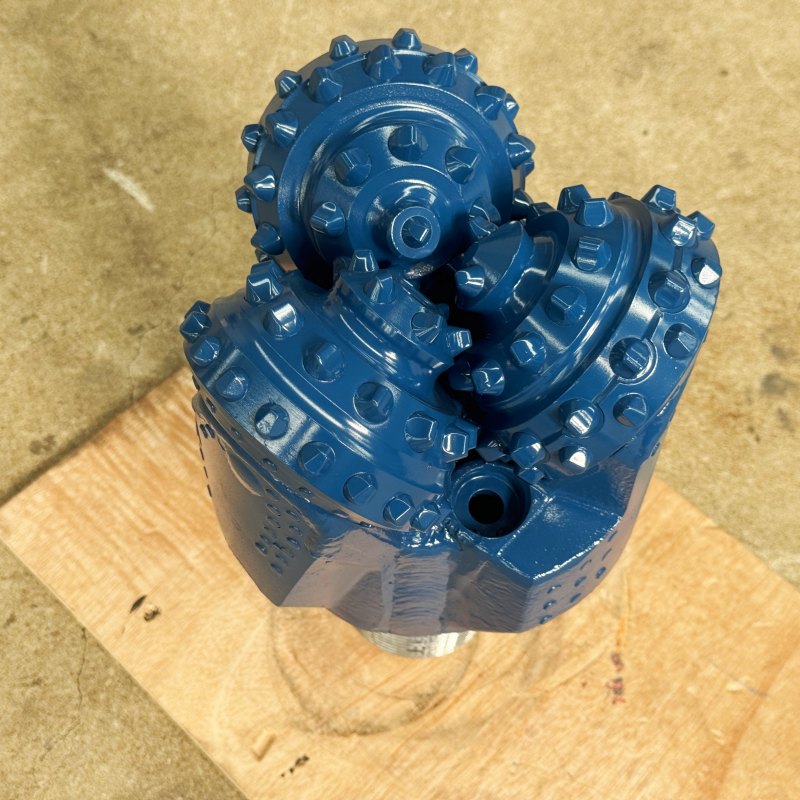

6 3/4" IADC 537 Tricone Roller Bit
- Diameter: 171.5mm
- Diameter: 6 3/4"
- Teeth Type: TCI
- IADC No.: 537
- Pin Type Dimensions :3 1/2" API
- Bearing type : Rubber Sealed Bearing
- Structural composition:composed of drill bit body, roller cone, bearing, seal, and nozzle; The mainstream is the tricone, which is divided into two types: steel teeth (milling teeth) and embedded teeth (hard alloy teeth)
- Principle of rock breaking:The composite motion of revolution and rotation relies on the dual effects of impact crushing and shear scraping to break rocks
- Sealing and lubrication: metal seal+oil storage bag+high-temperature grease, with a temperature resistance of up to 260 ℃, preventing drilling fluid from invading
- Tooth type adaptation: wedge-shaped/spoon shaped teeth for soft formations; High strength gear teeth are used in hard formations, which are wear-resistant and impact resistant
- Hydraulic design: nozzle optimization, cooling of drill bit, cleaning of well bottom, anti mud package
We are ProDrill, We are proud specialists in developing and manufacturing rock drilling & demolition equipment and tools for the quarrying , mining and construction industries. Xiamen is our homeland, but the global surface mining, natural dimensional stone quarry , water well , construction industry is our playground. We constantly explore new innovative designs, new materials, new manufacturing methods and new engineering tools. Only to supply our customers with the most hard-wearing, efficient and cost-effective drilling & demolition tools available.
TCI Tricone Roller Bits
ProDrill offers a full line of tricone and bicone bits. Tricone drill bits are available in new and used (re-tip and re-run) steel tooth and tungsten carbide insert, size from 3 3/8"(85.7mm) to 26"(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.
Tricone drill bits include Steel Tooth (or milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth bits, but with a higher cost to manufacture. Both types of Tricone Bits are available with
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)
(3) Gage Protected or Non-Gage Protected, etc.
ProDrill offers heavy duty tricone bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), american petroleum industry number (API Number) and international association of drilling contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. All possible combinations of IADC number for tricone bits are available at ProDrill.
