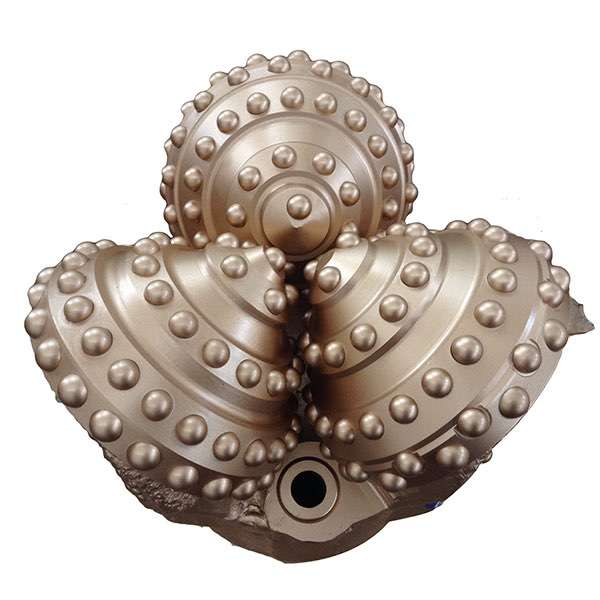

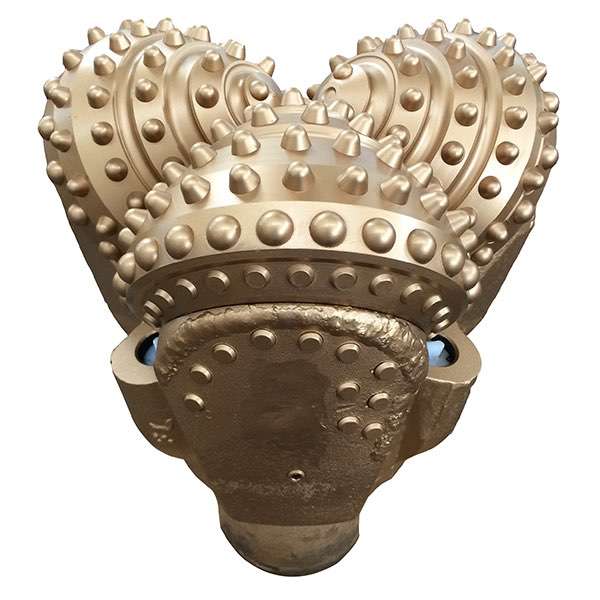

13-3/4'' IADC725 Tricone Bit with Tungsten Carbide Inserts

  • Code No.: TCB-TCI-349
  • Diameter: 349mm
  • Diameter: 13 3/4''
  • Pin Type/Dimensions: 6 5/8''
  • Teeth Type: TCI
  • IADC No.: 725

13-3/4'' IADC725 Tricone Bit with Tungsten Carbide Inserts

13-3/4'' IADC725 Tricone Bit with Tungsten Carbide Inserts

Product details

TCI Roller Cone Bits
ProDrill offers a complete line of rotary drilling tools such as tricone, bicone bit. Tricone drill bits are available in new and used (re-tip and re-run) tungsten carbide insert, size from 3 3/8''(85.7mm) to 26''(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.
 13 3/4'' IADC725 Tricone bit
Tricone bit including Steel Tooth (also referred to as milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth ones, but carry a higher cost to manufacture. Both these two groups of Tricone Bits are available with:
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)
(3) Gage Protected or Non-Gage Protected, etc

13 3/4'' IADC725 Tricone bit
ProDrill offers heavy duty tricone drill bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), American petroleum industry number (API Number) and International Association of Drilling Contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ProDrill can offer tricone bits for all possible combinations of IADC number.

13 3/4'' IADC725 Tricone bit

Tricone bits are widely used in mining, oil well, water well, thermal drilling.

PDFFor more details please watch PDF online:  Tricone Bits with Tungsten Carbide Inserts Catalogue
