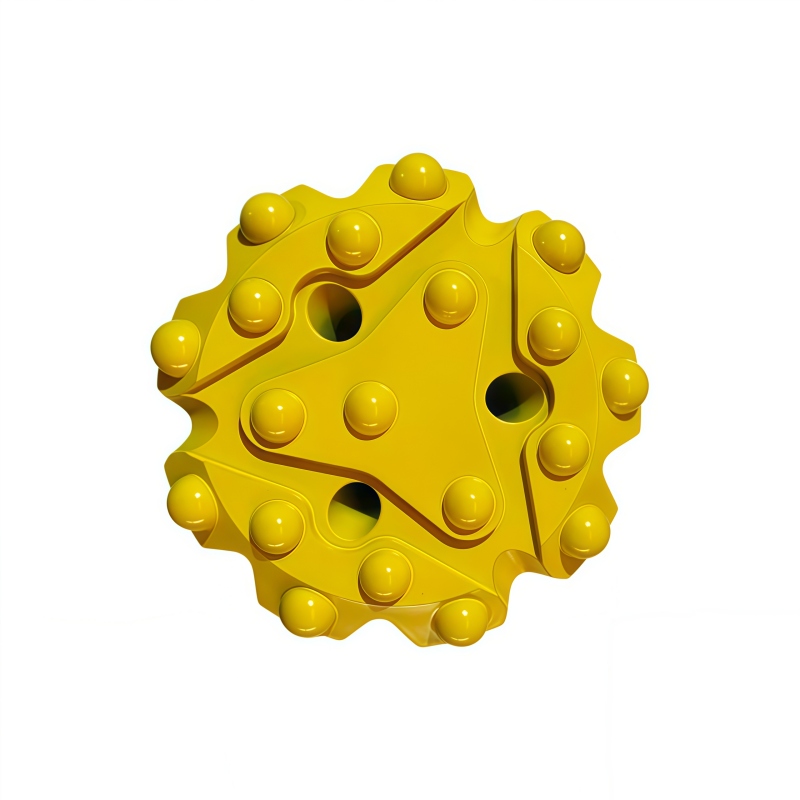

Q19-127-CT67 Threaded Button Bit
- Code No.: Q19-127-CT67
- Thread: CT67
- Diameter:127mm
- Gauge Buttons: 9*16mm
- Front Buttons: 10*13mm
- Carbide Design: Dome
- TCI grade: YK05
- Skirt Design: Normal
- Skirt Body Steel Code: 45CrNiMoA/45CrNiMoVa

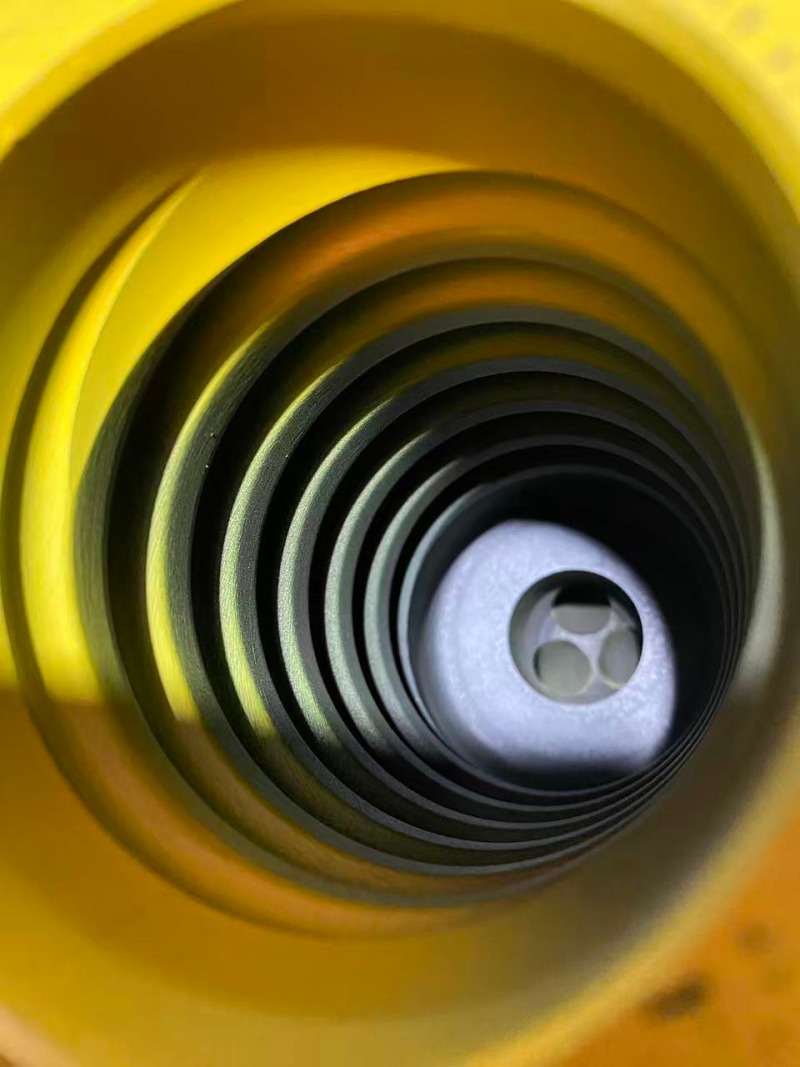

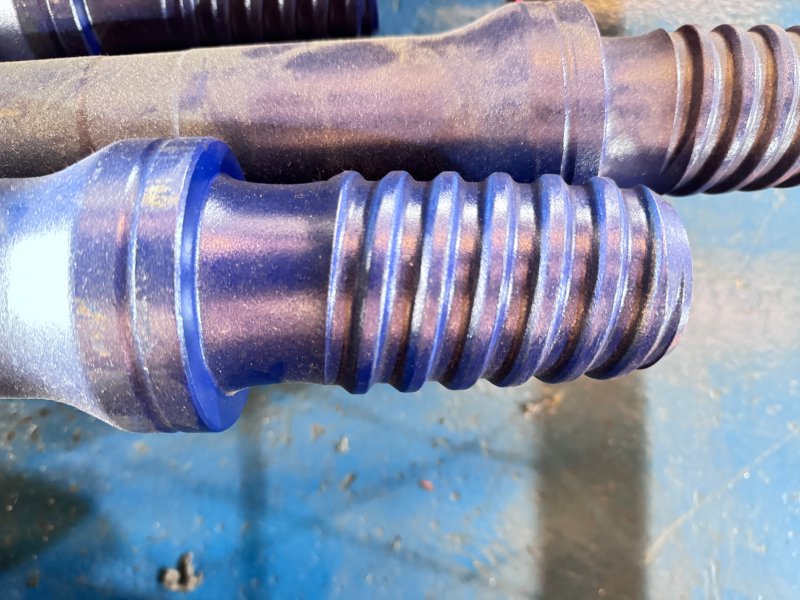

CT67 Curved thread rock tools system for surface, arc-shaped thread design. It can evenly distribute the load, significantly reduce stress, and withstand higher drilling power.
1.Specification parameters: Suitable for aperture sizes of 102-140mm, fully compatible with the 127mm you mentioned. Outdoor corresponds to GT60 thread, underground corresponds to ST68 thread.
2.Performance improvement: Drilling speed and efficiency increased by 15%, fuel consumption reduced by 15%; Extend the lifespan of drilling tools by 30-60%; Better hole straightness and quality, especially suitable for automated drilling.
3.Applicable scenarios: open-pit (such as quarries) and underground deep hole operations (only CT67 is available underground).
| CT67 Thread Drilling String for DP1500i | |
| Model: | DP1500i |
| Part Number | Description |
| GROUND ENGAGING TOOLS (GET) | |
| 7539-4902-S70 | Retract Bit CT67 102mm |
| 7539-4927X-S70 | Retract Bit CT67 127mm |

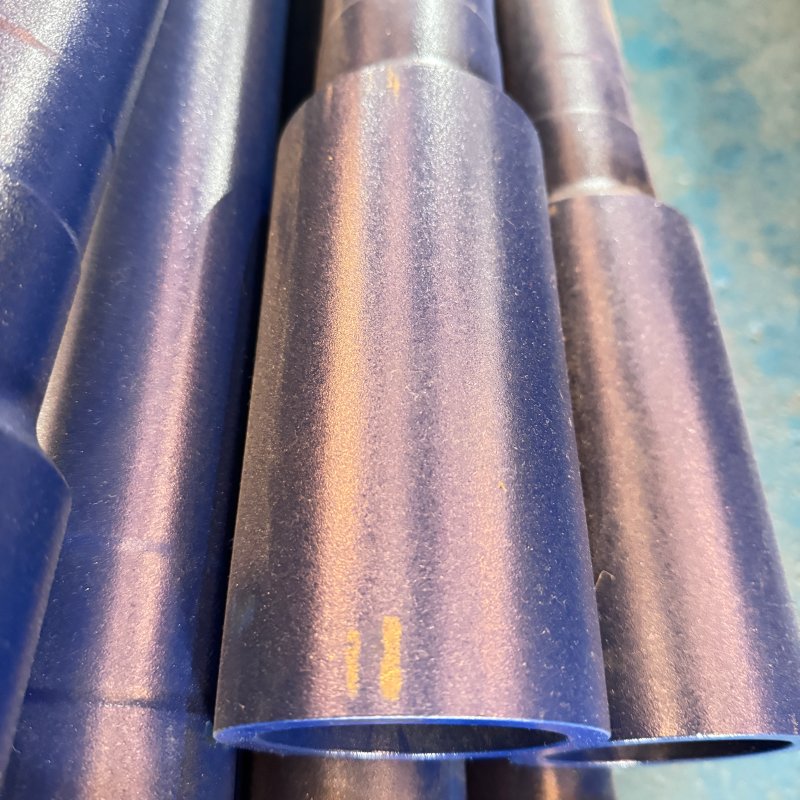

| 7399-6643-85 | CT 67 MF-ROD 4265mm |
| 7349-6045-15 | SHANK CT67 HL1560T/RD1635CF/RD1700 |
| SERVICE KITS | |
| BG01536165 | DP1500I/DP1600I TIER 3 FOR 500H |
| BG01544501 | DP1500I/DP1600I TIER 3 FOR 250H |
Rock drilling tools manufacturer ProDrill offers rock drill bits: CT67 Threaded Button Bits are one of the most important size for benching. CT67 rock drill bits are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.
Diameter: 102mm, 115mm, 127mm,140mm
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
New DP1500i is performing drilling 102/115/127/140mm holes for bench and production mining
CT67-127mm-Threaded Button Bit Quality Certificate：
