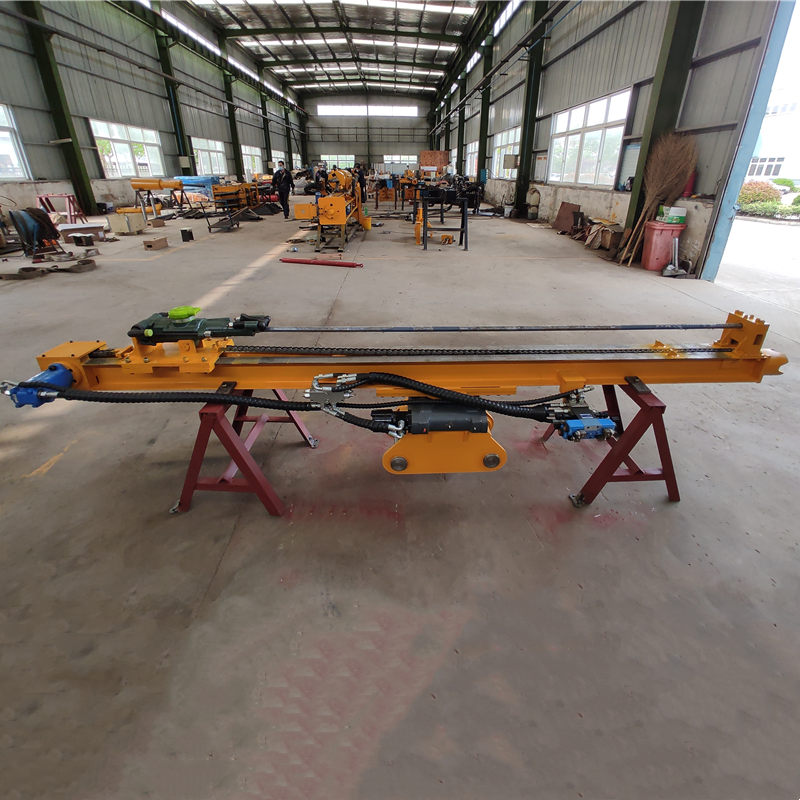

PD-Y28 Pneumatic Drilling Attachment with 360 degree swing drive
- Model: PD-Y28
- Drilling Depth: 2200mm
- Air Consumption :52-81 L/S
- Air Pressure:0.5-0.6Mpa
- Dimension:3600x550x900mm
- Adaptive Excavator:>4t
- Machine components: PD-Y28 DRILL MAST WITH YT28 PNEUMTIC ROCK DRILL , CHAIN FEED, DRILL MOUNT CARRIAGE, DRILL ROD CENTRALIZER AND 360DEG ROTATOR ， HYDRAULIC HOSES, HYDRAULIC VALVES, EXCAVATOR HITCH, CONTROL BOX

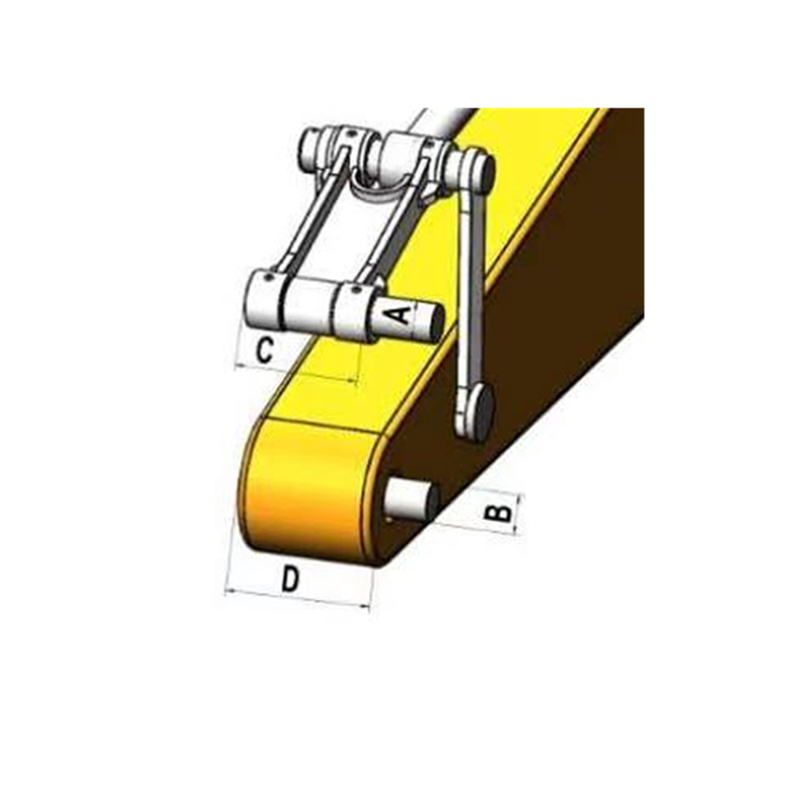

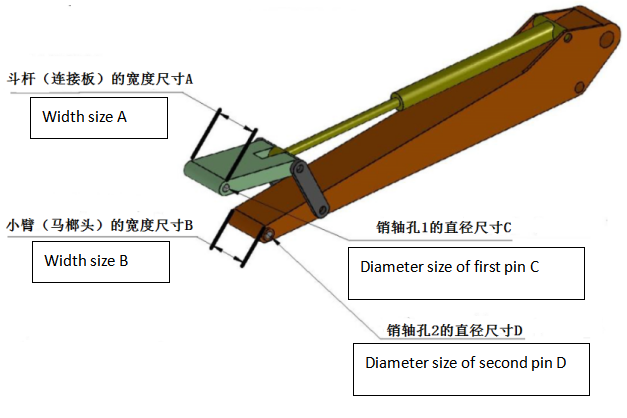

In order to install ProDrill™， PD-Y28 pneumatic drilling attachment perfectly on your excavator, Please provide the following excavator technical parameters of A, B, C ,D ，May I have your kind attention please , The excavator must have a oil hoses for hydraulic breaker using， Excavator hydraulic breaker joint size should be inch pipe thread，1/2 inch + inside 60 degree cone + external thread.

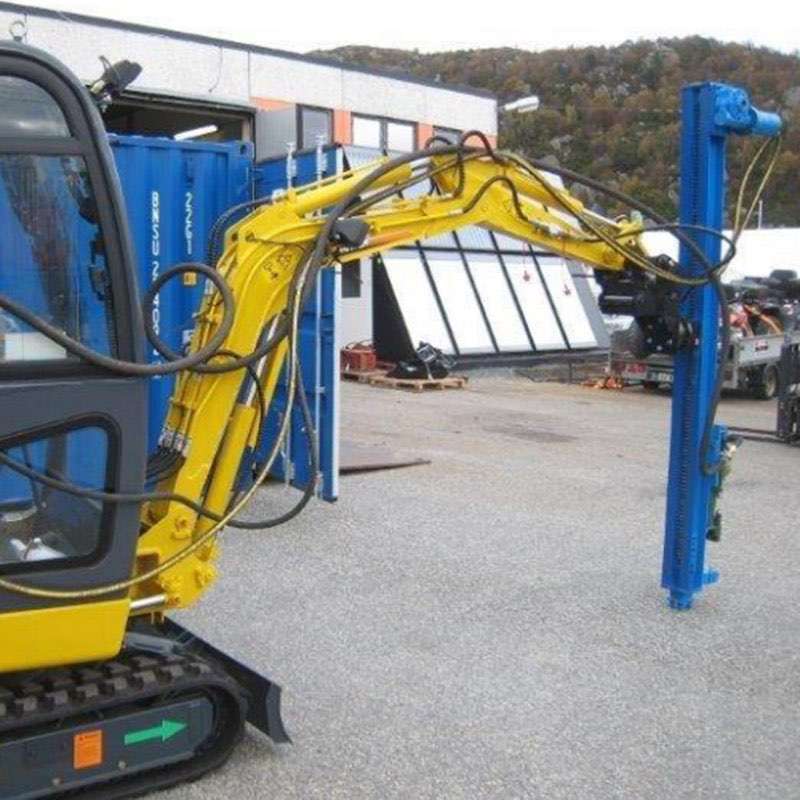

PD-Y28 Excavator Attached Pneumatic Rock Drill changes the tradition of manual hand-held pneumatic rock drills.Y28 is installed on a rail that can swing and move up and down, and then the rail is installed on the excavator with a quick-change connector.
PD-Y28 drilling operation still uses air compressor to drive Y28 for drilling, but the drilling angle and the movement of the rock drill are derived from the hydraulic power of the excavator, which is controlled by the imported electromagnetic control valve sets.
The operator uses electric control box knob controls the drilling operation in the cab, which is convenient, fast, safe and efficient. PD-Y28 improves the working environment, work efficiency and reduces labor intensity.
Application field: It is widely used in marble quarrying, tunnel boring, stonework, mining and various rock drilling operations. It is an indispensable operating tool in railway, highway, metallurgy, coal, water conservancy and hydropower construction and national defense stonework.

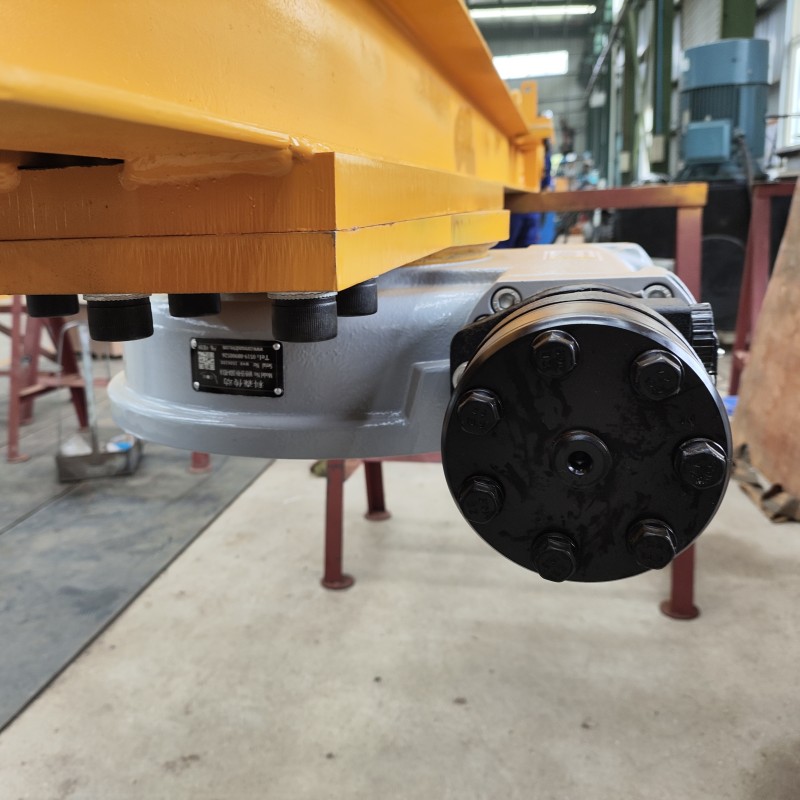

360 degree rotator / positioner
Product advantages Features:
- 1.There is no need to purchase rock drilling rigs separately, which greatly saves costs.
- 2.Utilizing the crawling and rotating advantages of the excavator, it can work in severe working conditions with a wide operating range.
- 3.Unique oil circuit valve design, adjustable oil circuit distribution according to different working conditions to achieve the best rock drilling effect. The valve and electromagnetic reversing valve are all imported parts, which are precise, sturdy and durable.
- 4.The function of the excavator can be restored when not in use, and the existing resources can be fully utilized.
- 5.Low noise, low vibration, energy saving and high efficiency, low failure rate and high reliability;
- 6.Centralized operating mechanism, flexible start-up, convenient use and maintenance.
PD-Y28 Technical Parameter:
| Product model | PD-Y28 |
| Rock hardness | f=6-16 |
| Size/mm | 3600×550×900 |
| Taper Drill Rod | H22-2500m |
| Drilling depth | 2200m |
| Weight | 340kg |
| Pneumatic Drifter | Y28 |
| Drilling Diameter /mm | 30-42 |
| Drifter Weight | 26kg |
| Working pressure | 0.5-0.6MPa |
| air consumption | 52-81L/s |
| Impact power | 44-70J |
| Impact frequency | 28-36Hz |
| Rotation speed | 250-300r/min |
| Drill speed | 250-470mm/min |
| Noise | ≤125dB（A） |
| Suitable Excavator | ≥4ton |
| Hydraulic pressure | ≤16MPa |

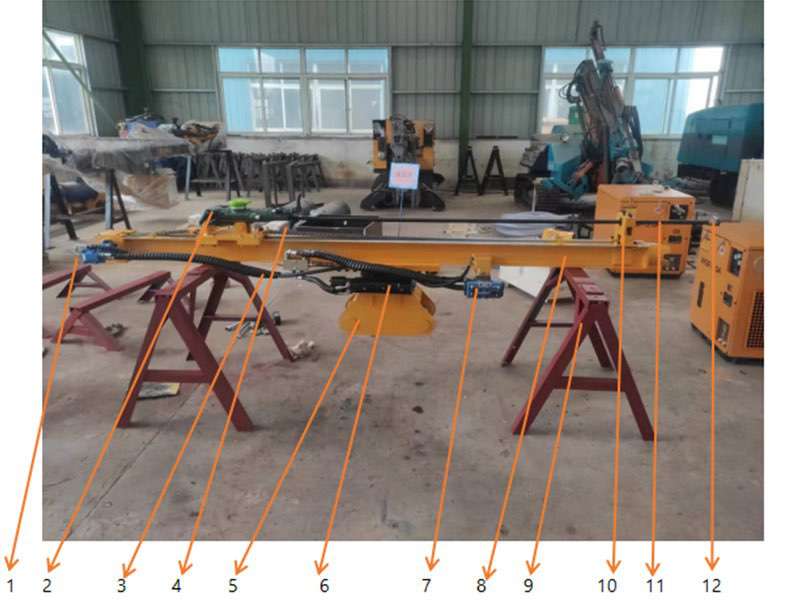

Product composition:
1.Propulsion motor 2. Pneumatic rock drill 3.Hydraulic pipeline 4. Drive chain 5.Connecting plate 6.Rotary reducer 7.Control valve group 8.Propulsion beam 9.Shipping support 10.Front shoulder protector 11. Taper Drill Rod 12.Taper drill bit
Key components are as follows:

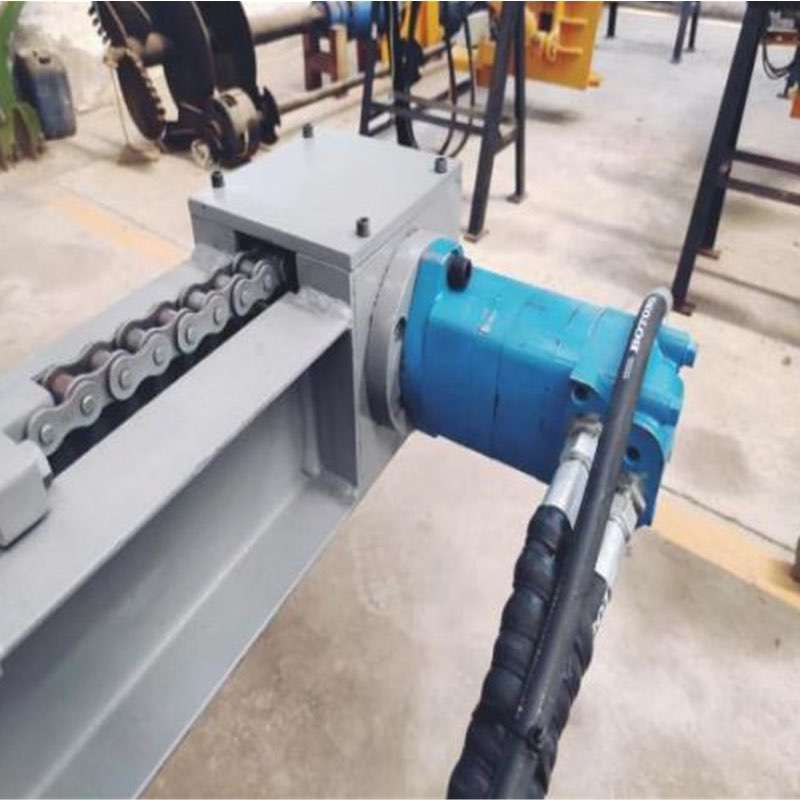

1.Propulsion motor

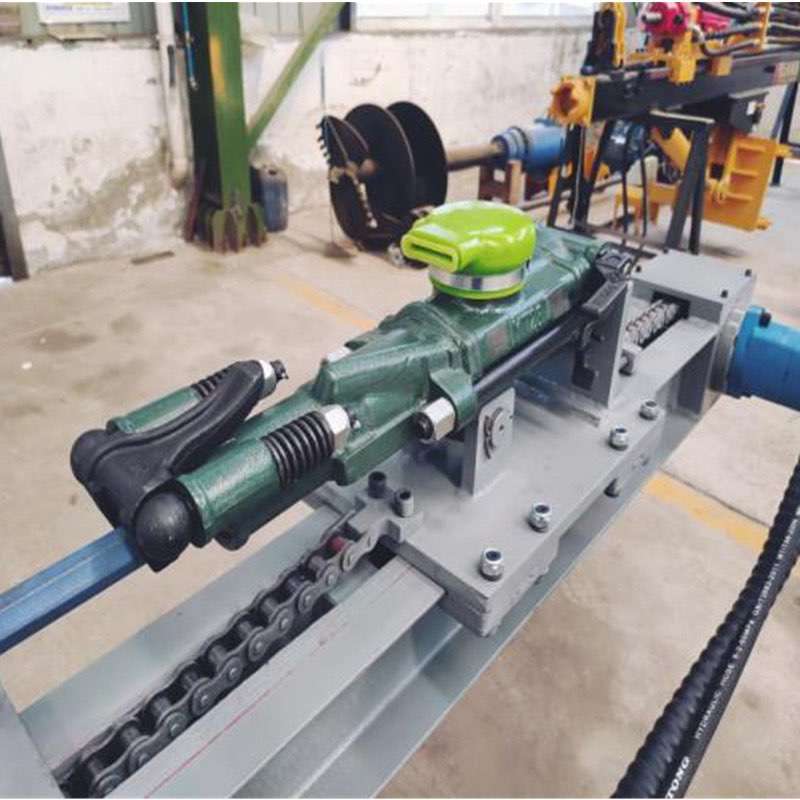

2.Pneumatic rock drill

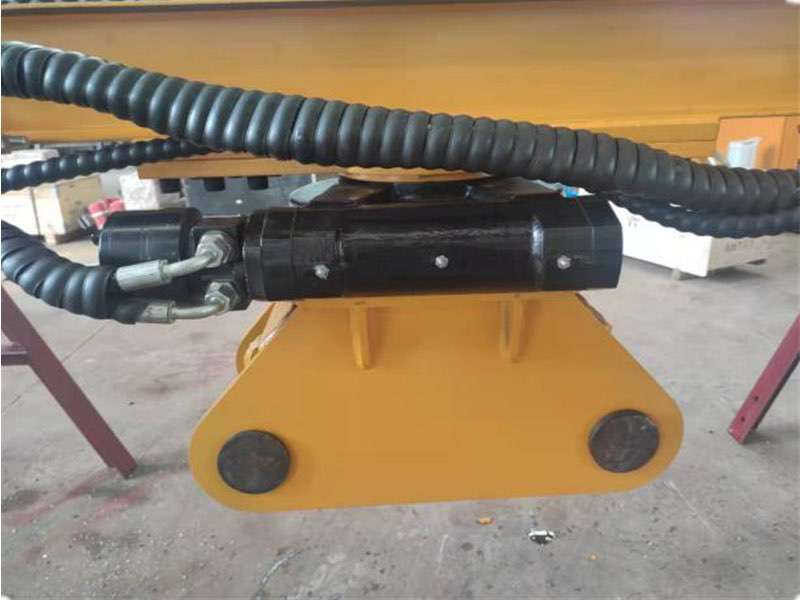

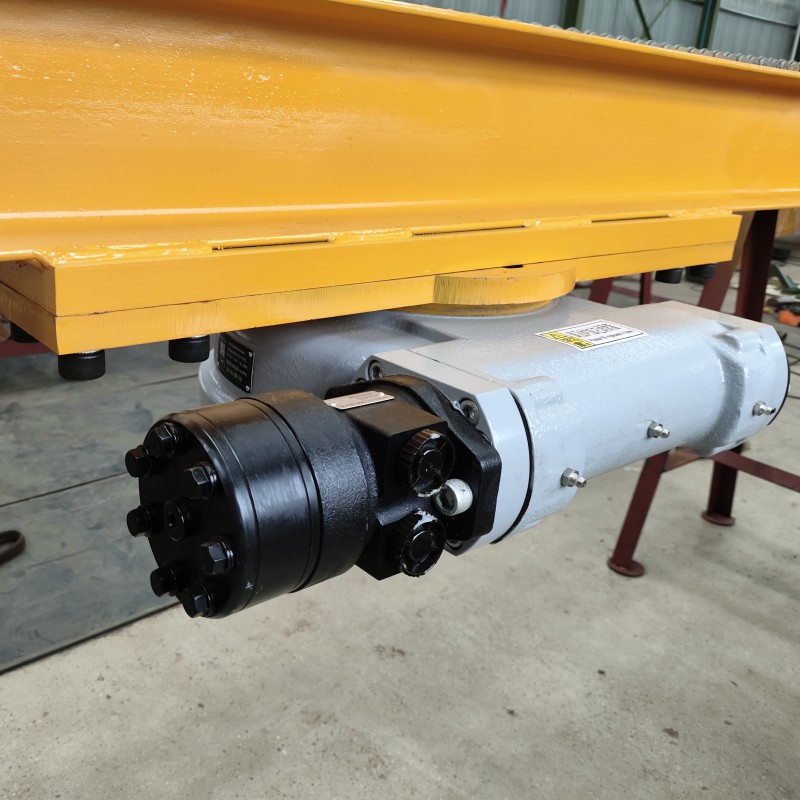

6.Rotary reducer for 360 degree swing drive

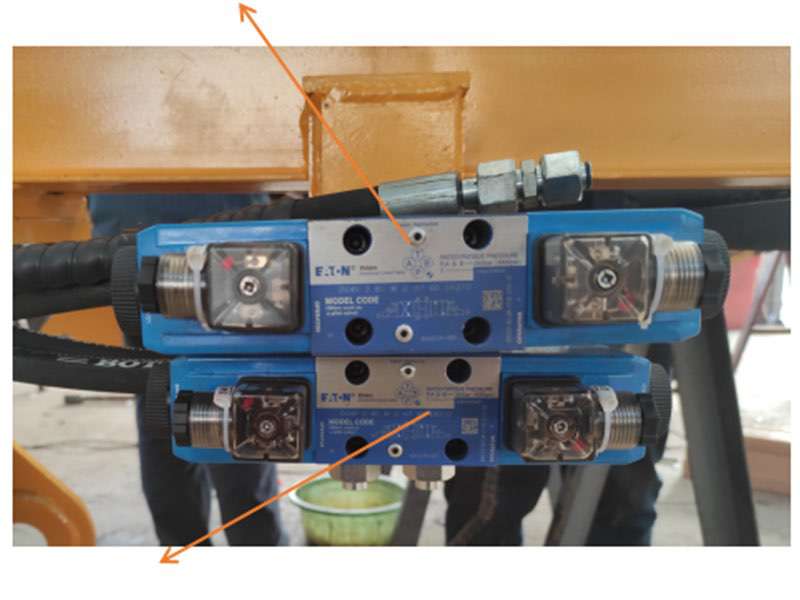

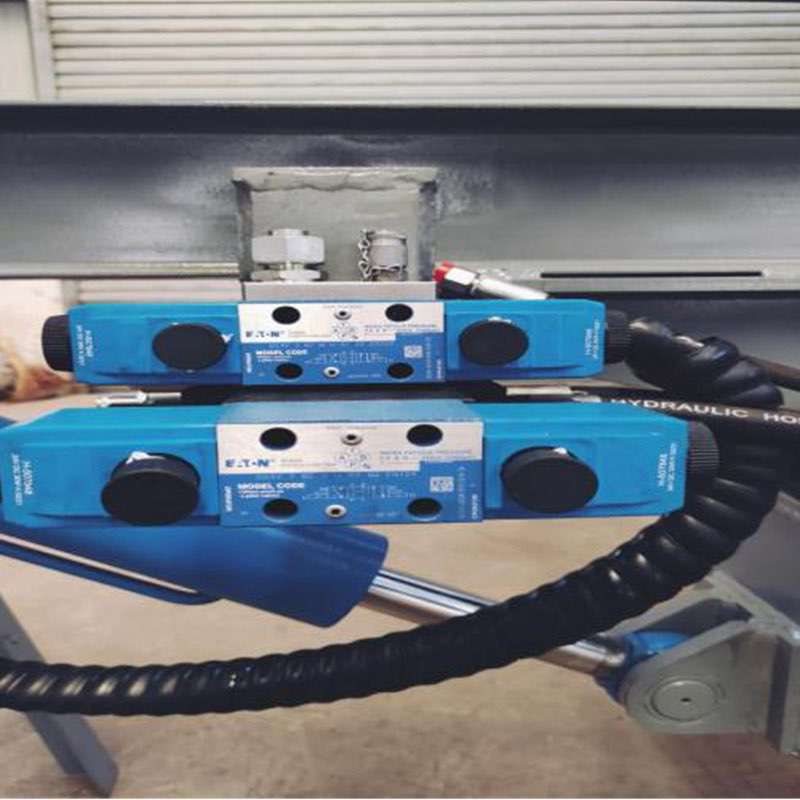

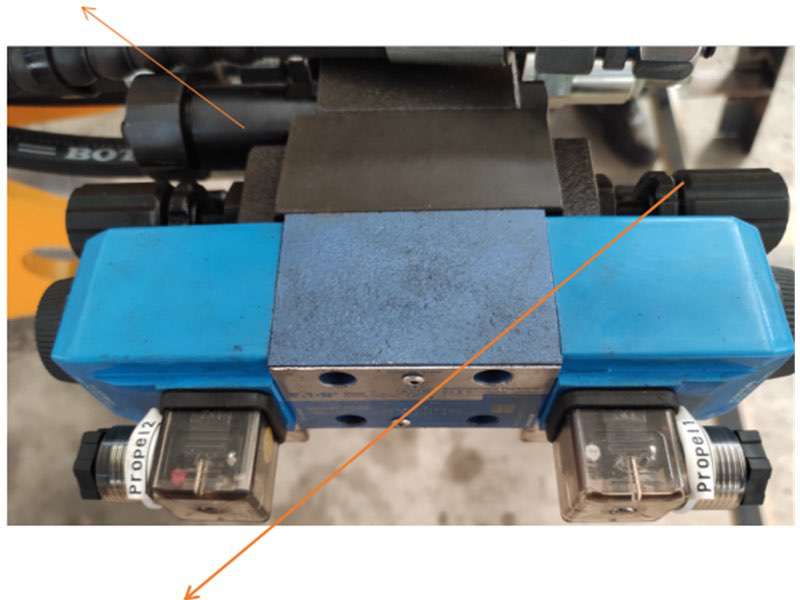

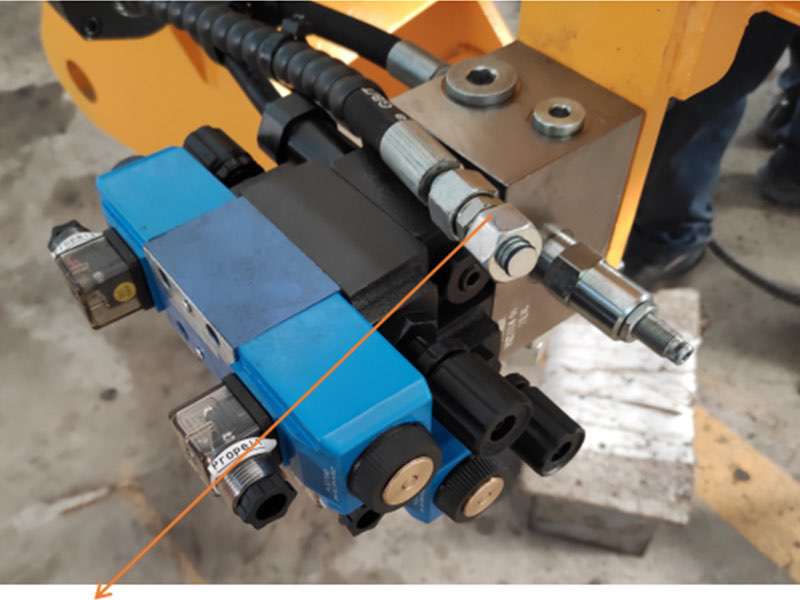

7.Control valve group
10.Front shoulder protector
Installation instructions and pressure commissioning
1. A1 / B1 controls the forward / backward of pneumatic rock drill
A2 / B2 circuit controls the ± 180 ° rotation of the drilling rig
2.Connection with excavator
T port is connected with the oil return port of the excavator
The P port is connected with the oil outlet of the Hyaulic Hammer/ Breake
The oil drain port is directly connected to the hydraulic oil tank of the excavator
3.Pressure regulation
Adjust the main pressure (≤ 10MPa). Clockwise is to increase the pressure and counterclockwise is to reduce the pressure

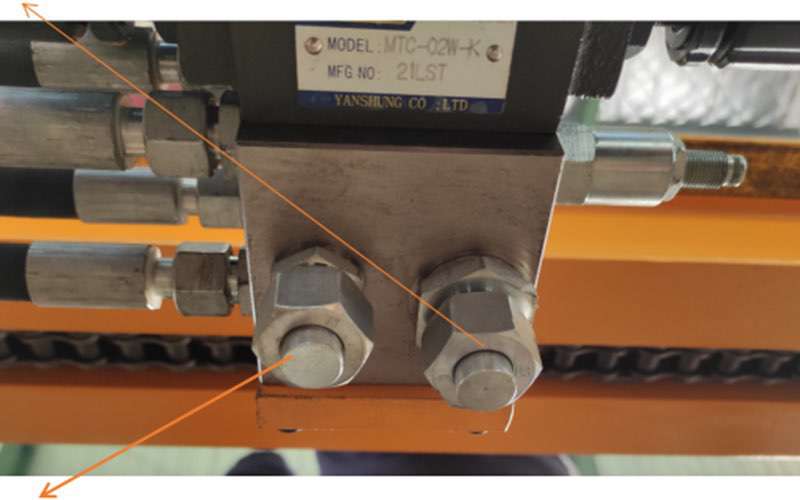

Propulsion pressure reducing valve: control the forward pressure of pneumatic rock drill (generally 3-6mpa, adjusted according to rock working conditions)
The four oil ports are throttle valves to adjust the flow speed everywhere
Installation of electrical parts

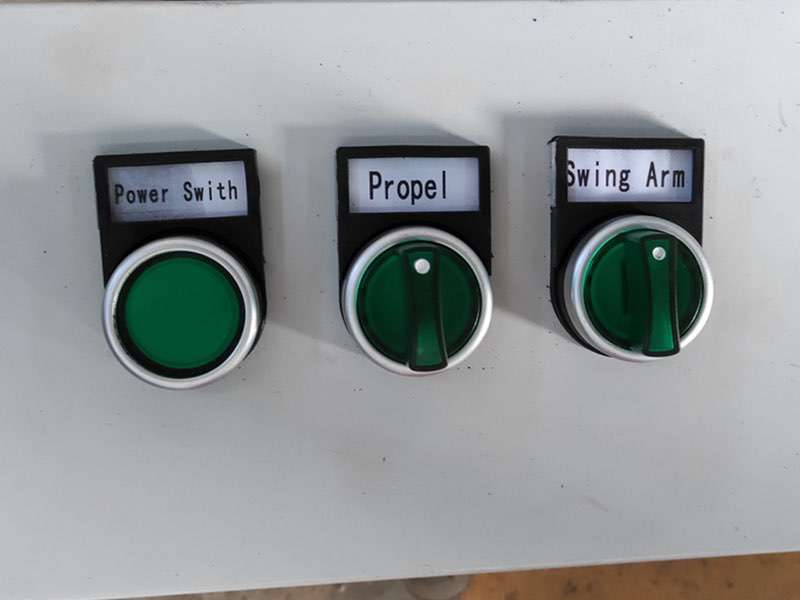

Electric control box: switch, push and rotate

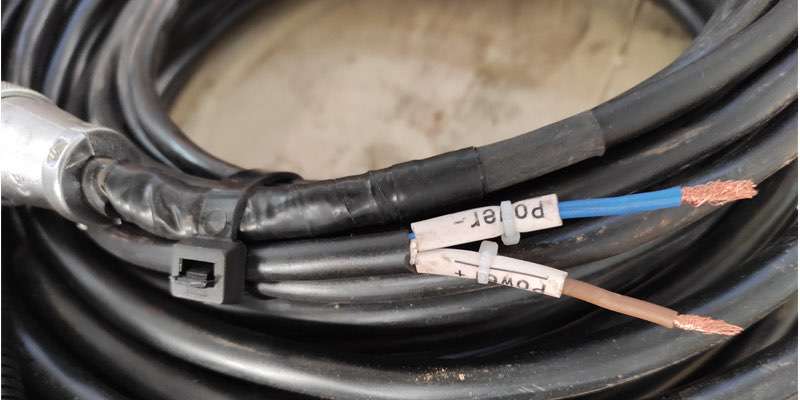

Connect excavator battery DC24V

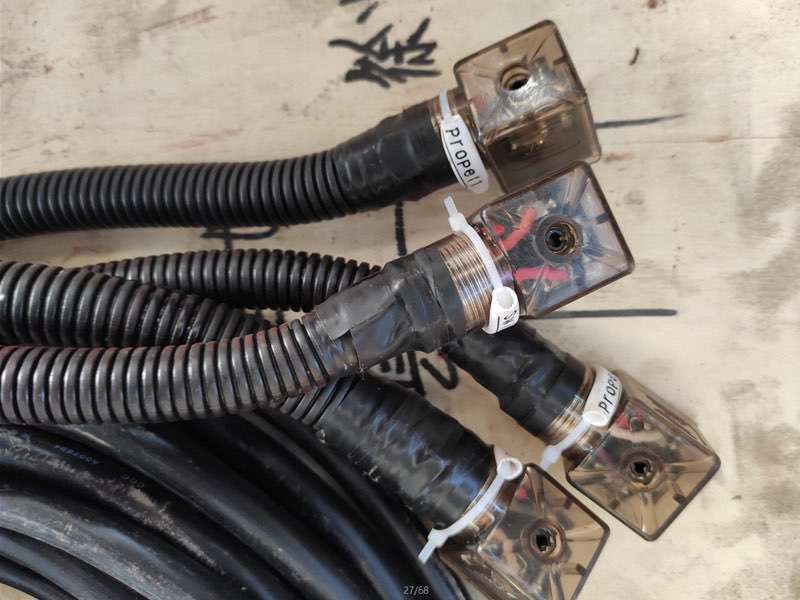

The plug is linked with the plug on the valve block
