G200 Hand Held Button Bit Grinder for sharpening bit carbide

Hand held pneumatic button bit grinder, button bit grinding machine







G200, a complete manual grinding system consisting of pneumatic grinding machine with a specially designed Chuck, Quick Snap, and matching diamond grinding cup (grinding cap) is ideal for small-schale field operations.

This powerful pneumatic button bit grinder is well-known for its easy of maintenance with corrosion free spare parts, sealed bearing, drop in cartridge air motor, light weight trigger action, quick change chucks for different diamond grinding cups , giving a fast and efficient re-grinding machine, its package box is very strong and good-looking.







Rock drilling tools manufacturer ProDrill: G200 Hand-Held Air Grinder is powered by air pressure from air compressor to make a job of re-grinding tapered button bits, threaded button bits and DTH button bits. G200 Hand Held Button Bit Grinder with Chucks and Grinding Cups:

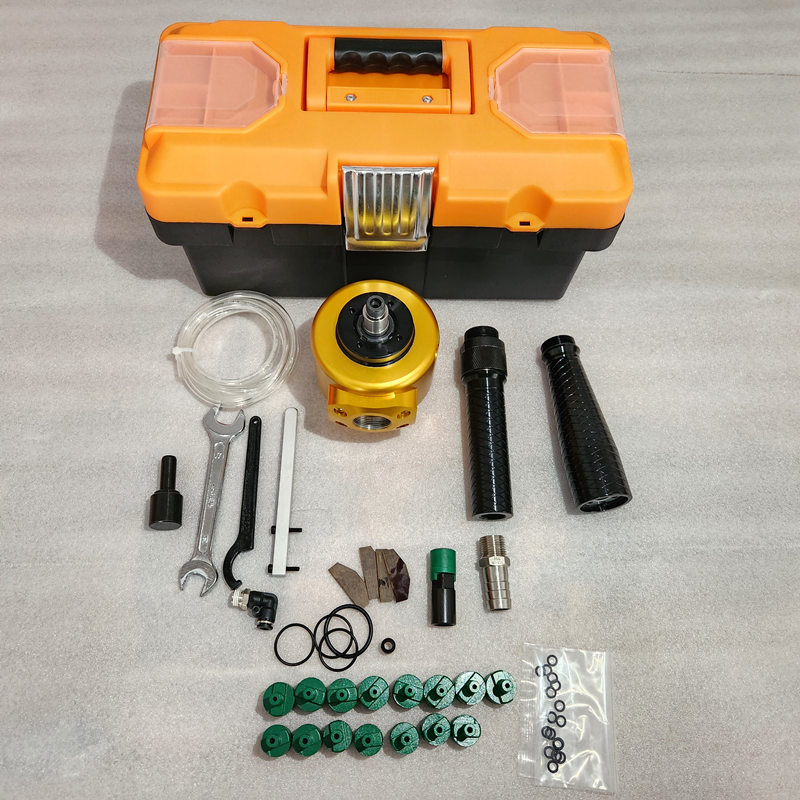

Button Bit Grinder with Chucks, Grinding Cups and assemble tools:

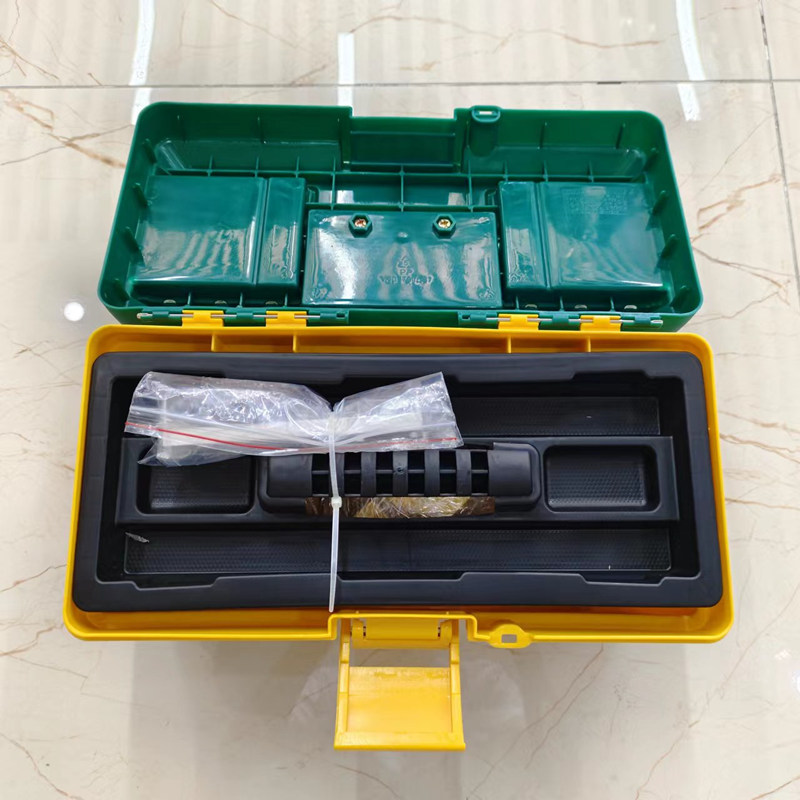

Packaging, with high quality aluminium box:









G200 Hand Held Button Bit Grinder Technical Specification



Air pressure	5-7 bar (72-100 psi)
Air consumption, max	35 L/S, 2 m3/min
Rate power	1.8 kw
Idling speed	22,000 r.p.m
Water flushing pressure, max	4 bar (60 psi)
Hose diameter, air	19 mm (1/2’’)
Hose diameter, water	6 mm (1/4’’)
Weight, excel. Hoses	3.2 kg
Sound level	90 dB
