ProDrill ™ PD130 Excavator-Mounted Drilling and Splitting Integrated Machine
- Dimensions(mm) : 4500*1550*1600
- Weight(kg) : 4450
- Drill Hole Diameter(mm) : 130
- Drill Hole Depth(mm) : 1500
- Diesel Engine Power(kw) : 162
- Maximum Working Flow Rate(L/min) : 260
- Applicable Excavator Specifcation(t) : ≥20
1.PRODUCT INTRODUCTION

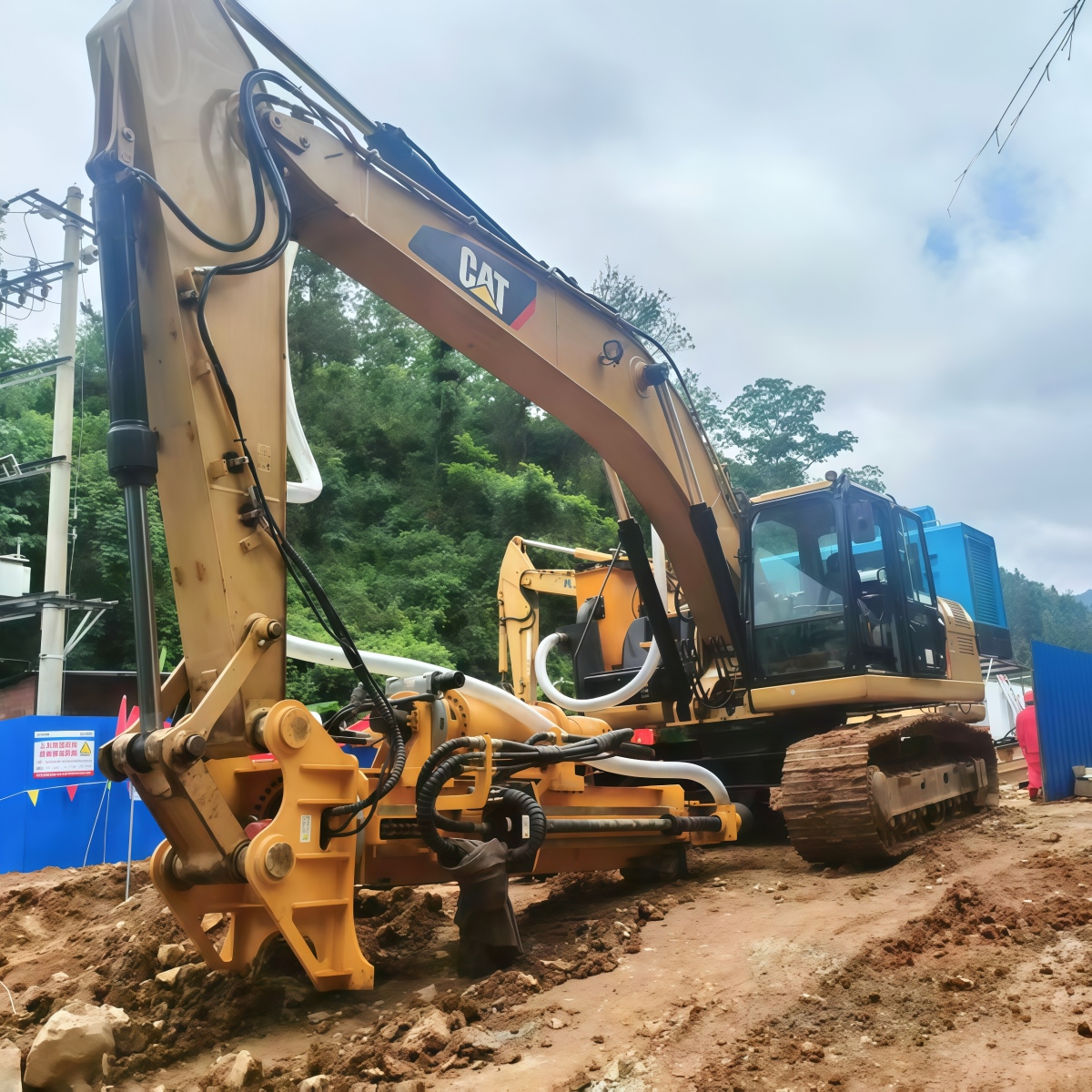

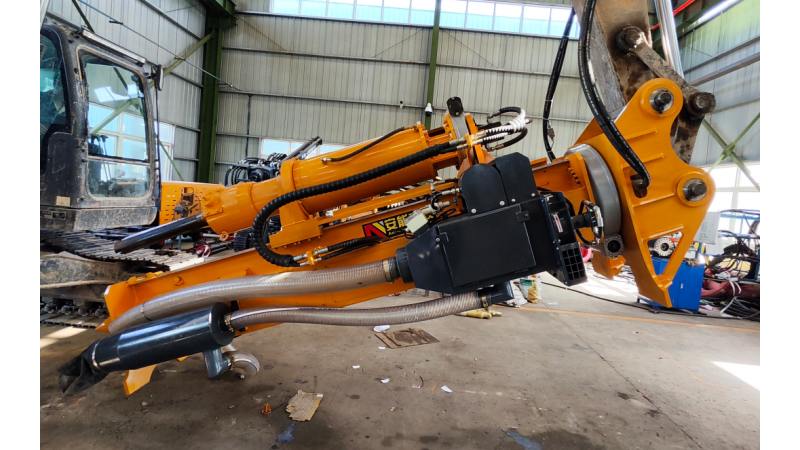

The Drilling and Splitting Integrated Machine utilizes the excavator's own hydraulic system. Through modification, it draws hydraulic power from the excavator without impairing its original working performance.
Meanwhile, it cooperates with an external diesel-powered screw air compressor for impact drilling, realizing the integrated operation of rock drilling, hole drilling, and splitting. It boasts numerous advantages such as economic practicality, easy installation, and flexible, convenient,efficient for rock drilling, hole drilling, and splitting.
Additionally, it enables the excavator to achieve multi-functional use,significantly expanding the excavator's application range and improving its operational efficiency.
The DTH (Down-The-Hole) Drilling and Splitting Integrated Machine is the optimal solution for non-explosive and green mining in fields such as mining,municipal engineering, and construction engineering.
2.TECHNICAL DATA SHEET ( BASIC PARAMETER)
|
NO. |
Parameter |
Unit |
PD-130 |
|
1 |
Length * Width * Height |
mm |
4500×1550×1600 |
|
2 |
Weight |
kg |
4450 |
|
3 |
Drilling model |
/ |
DOWN THE HOLE (DTH) |
|
4 |
DTH bit dia |
mm |
130 |
|
5 |
Drill hole depth |
mm |
1500 |
|
6 |
Impact model |
/ |
Pneumatic type |
|
7 |
DTH hammer |
/ |
4 inches |
|
8 |
Rotation pressure |
Bar |
160 |
|
9 |
Rotation torque |
N.m |
3800 |
|
10 |
Rotation speed |
Rpm |
0-150 |
|
11 |
Max flow rate |
L/min |
260 |
|
18 |
Splitting machine |
/ |
ANZP320 |
|
19 |
Cylinder diameter |
mm |
320 |
|
20 |
Splitting pressure |
Bar |
≤315 |
|
21 |
Splitting force |
t |
5000 |
|
22 |
Control system |
/ |
Wireless Remote |
|
23 |
Dust collector system |
/ |
Dry |
|
24 |
Air compressor |
/ |
15/15（Optional ） |
|
25 |
Diesel engine power |
KW |
140 |
|
26 |
Air displacement |
m³/min |
15 |
|
27 |
Air pressure |
Bar |
15 |
|
28 |
DTH drill pipe |
/ |
Ф76-1500 |
|
29 |
Excavator required |
t |
≥20 |
3.MAIN PRODUCT CONFIGURATION

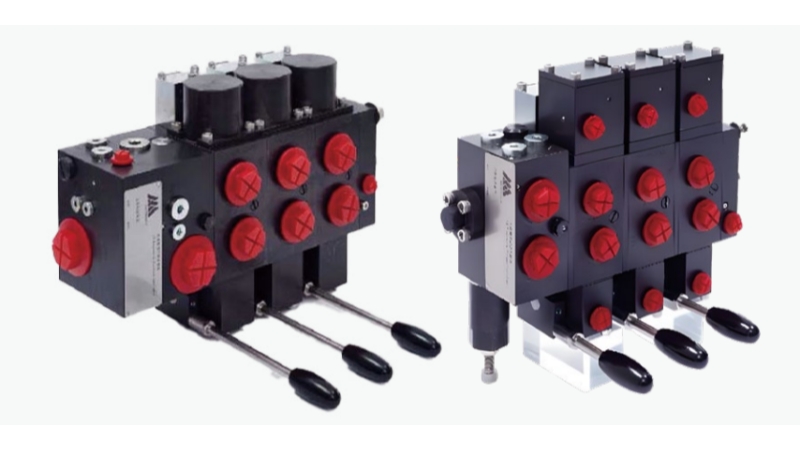

- Electro-Hydraulic Proportional Valve: Hydrostatic Transmission. Precise Control of Flow Distribution, Excellent Pressure Resistance Performance.

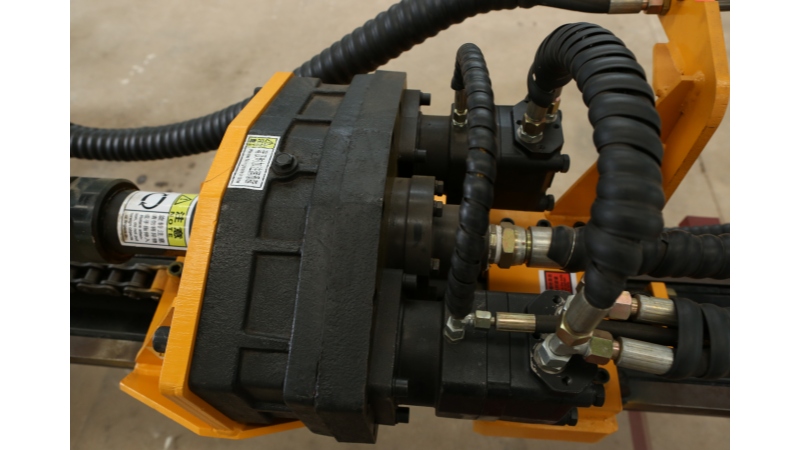

- Rotary Power Head: Maximum Rotation Torque up to 3800N.m., High Torque with Stepless Speed Regulation.
-

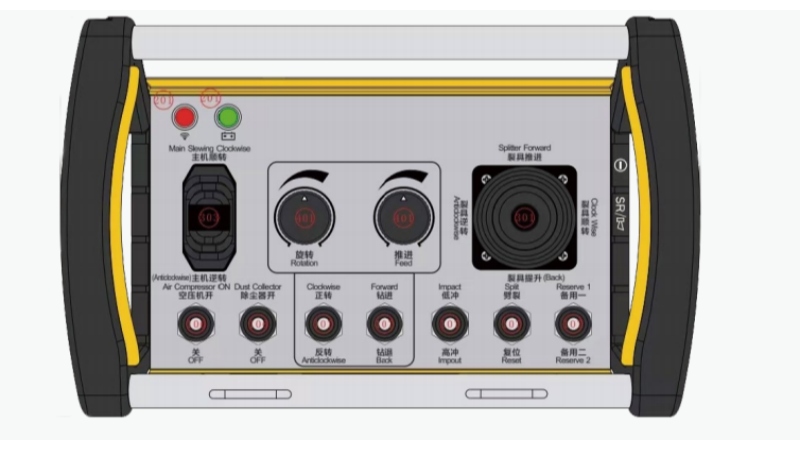

Wireless Remote Controller: 100m Super Strong Radio Frequency.Ergonomic Design.Extra-Large Battery Capacity.

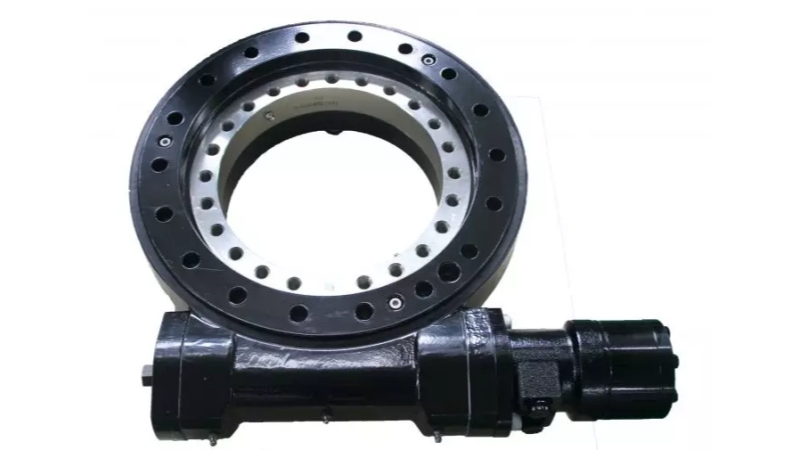

- Two-Stage Rotation: Both drilling-splitting rotation and splitting direction .Rotation enable 360° dead-angle-free operation.

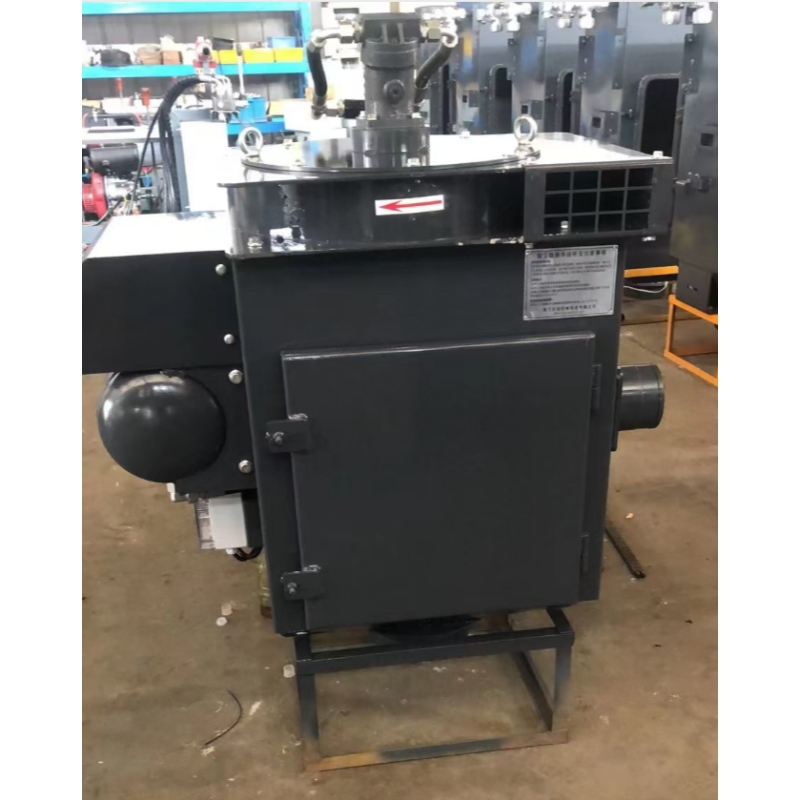

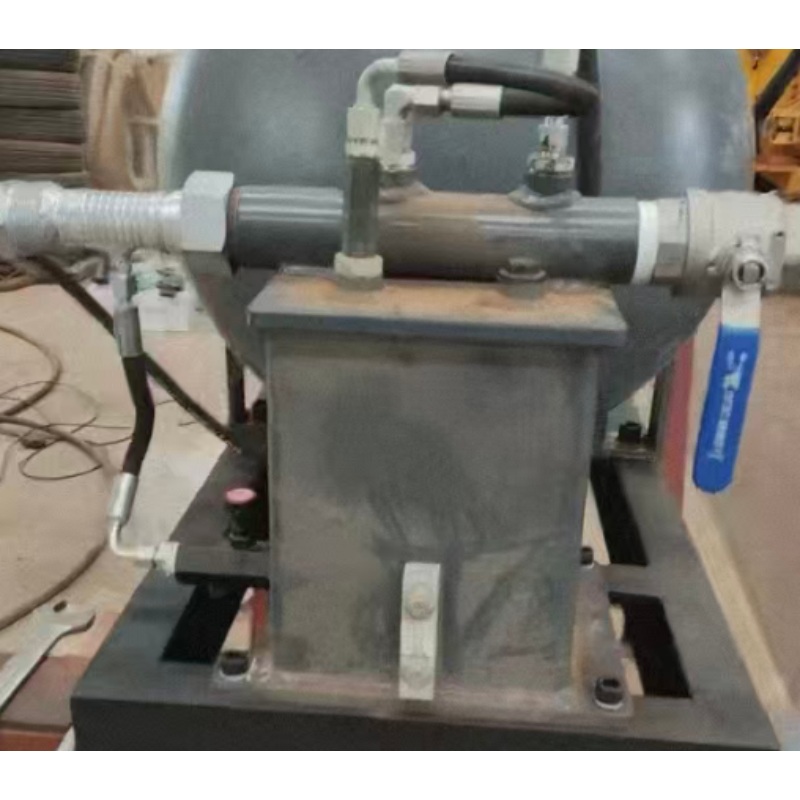

- Dust collector:
DHD340 DTH Hammer
DTH Bit-DHD340A-127mm
- Grease Squirt
3.Necessary parts & tool for installation PD130

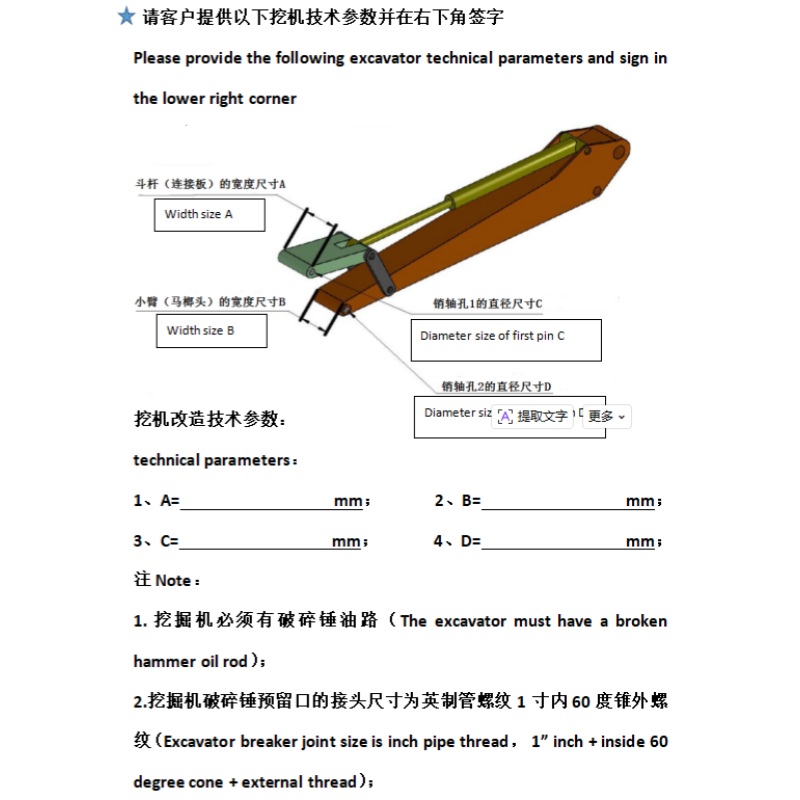

4.Excavator connection details required from clients
- Support Excavator: More than 20 tons
- Excavators need to be equipped with hydraulic breaker hammer pipelines.
- Provide the size of the breaker pipeline interface.
- Provide excavator connection dimensions for equipment connection.
- Support Air compressor:≥15/15.
- Install the equipment on the excavator according to the prompts, connect the pipelines and wires, connect the air compressor, and the equipment can work normally.Reference video installation.
5.Warranty List
The main components of the machine are guaranteed for one year, Excluding non quality issues and vulnerable parts,
The following is the warranty list.
|
Serial No. |
Product Parts List |
Covered by Warranty |
Warranty Period |
Recommended Replacement Period for Vulnerable Parts |
Remarks |
|
1 |
Guide Rail Structural Assembly |
Yes |
12 months |
/ |
/ |
|
2 |
Hydraulic Motor |
Yes |
12 months |
/ |
/ |
|
3 |
Control Valve Group |
Yes |
12 months |
/ |
/ |
|
4 |
Air Compressor Assembly (Excluding Filter Element, Belt, etc.) |
Yes |
12 months |
/ |
Optional |
|
5 |
Power Head Assembly (Excluding Output Shaft, Bearing, Seal, etc.) |
Yes |
12 months |
/ |
/ |
|
6 |
Connecting Disc Structural Assembly |
Yes |
12 months |
/ |
/ |
|
7 |
Oil Cylinder Assembly |
Yes |
12 months |
/ |
/ |
|
8 |
Casing Pipe Frame Structural Assembly |
Yes |
12 months |
/ |
/ |
|
9 |
Power Head Slide Frame Structural Assembly |
Yes |
12 months |
/ |
/ |
|
10 |
Front End Drill Rod Guide Structural Assembly |
Yes |
12 months |
/ |
/ |
|
11 |
Power Head Gear and Bearing |
Yes |
6 months |
Grease should be added in a timely manner |
/ |
|
12 |
Thruster and Driven Wheel Bearing |
Yes |
3 months |
/ |
/ |
|
13 |
Drill Pipe/Drill Bit/Impactor |
No |
/ |
As needed |
/ |
|
14 |
Power Head Output Shaft and Seal |
No |
/ |
As needed |
/ |
|
15 |
Hydraulic Rubber Hose |
No |
/ |
As needed |
/ |
|
16 |
Drill Rod Tail |
No |
/ |
As needed |
/ |
|
17 |
Sprocket |
No |
/ |
As needed |
/ |
|
18 |
Splitting Block, Wedge and Spring |
No |
/ |
As needed |
/ |
|
19 |
Chain |
No |
/ |
As needed |
/ |
6.Shipping details dimensions
|
Serial No. |
Name |
Model/Specification |
Unit |
Quantity |
Overall Dimensions/mm |
Weight/kg |
Remarks |
|
1 |
Drilling and Splitting Integrated Machine |
AWZP-130, including drill bit impactor, drill pipe, dust collector |
Unit |
1 |
4600*1800*1800 |
4900 |
Including bracket |
|
2 |
Random Spare Parts |
Wooden Case |
Box |
1 |
800*800*400 |
400 |
/ |
|
3 |
Vulnerable Accessories |
According to Actual Purchase |
/ |
1 |
2500*1000*1000 |
1000 |
Estimated |
7.7. Wears Parts list for 3 months
Remark : red color items are drillling and splitting consumables .
|
NO. |
名称 |
Name of wear parts |
Spec & Size |
Qty |
Unit |
|
1 |
尼龙滑板 |
Nylon sliding plate |
|
2 |
set |
|
2 |
钻杆 |
DTH drill pipe |
76mm*1500 mm |
3 |
pcs |
|
3 |
钻头 |
DTH drill bit |
DHD340-130mm |
10 |
pcs |
|
4 |
冲击器 |
DTH hammer |
DHD 340 4" |
3 |
pcs |
|
6 |
前端扶钎器耐磨套 |
Front end support wear sleeve |
|
2 |
pcs |
|
7 |
杆套 |
Rod sleeve |
|
2 |
pcs |
|
10 |
推进器轴承 |
Pusher bearing |
|
1 |
set |
|
11 |
从动轮轴承 |
Driven wheel bearing |
|
1 |
set |
|
12 |
电磁阀插头 |
Solenoid valve plug |
|
1 |
pcs |
|
14 |
顶头截齿 |
Top end cutting teeth |
|
1 |
pcs |
|
19 |
劈裂机弹簧 |
Rotating machine spring |
|
3 |
pcs |
|
20 |
劈裂机劈块 |
Rotating machine chips |
|
4 |
pcs |
|
21 |
劈裂机楔器 |
Rotating machine wedges |
|
1 |
set |
|
22 |
除尘滤芯 |
Dust collector filter element |
|
1 |
pcs |
|
23 |
除尘捕尘罩 |
Dust collection hood |
|
2 |
pcs |
|
24 |
除尘反吹胶皮 |
Dust collection reverse-blow rubber sheet |
|
2 |
pcs |
