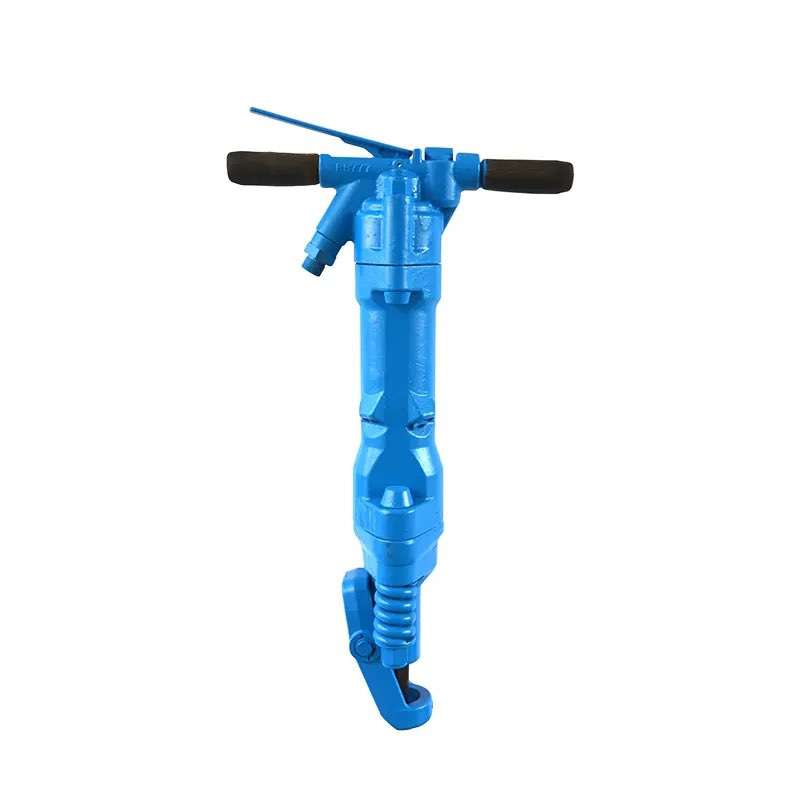

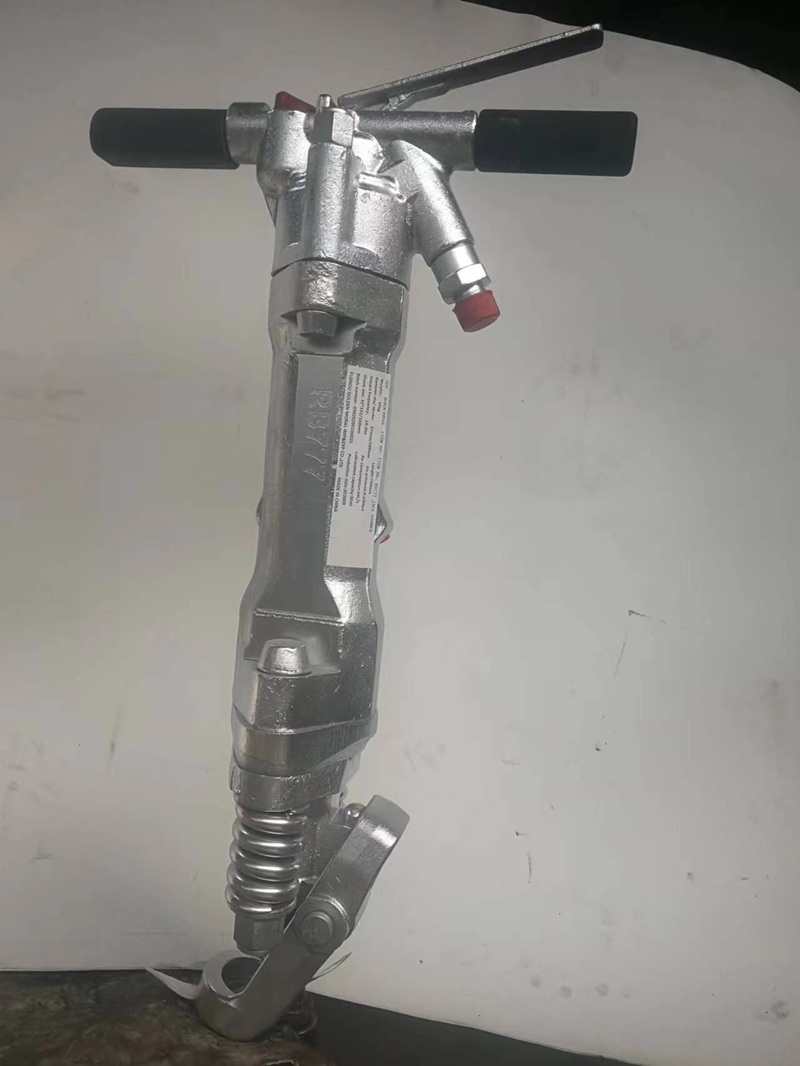

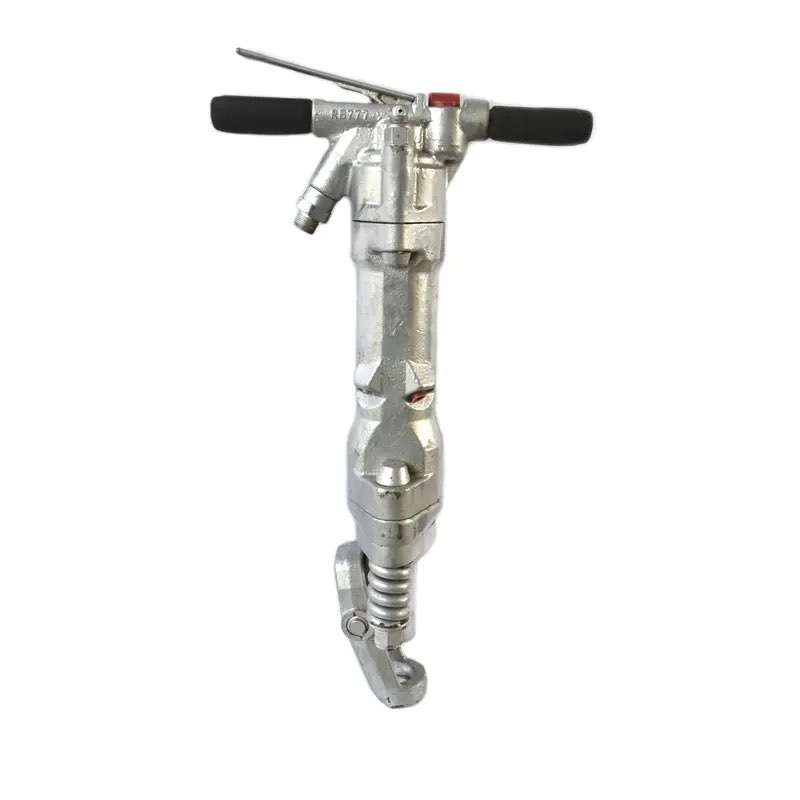

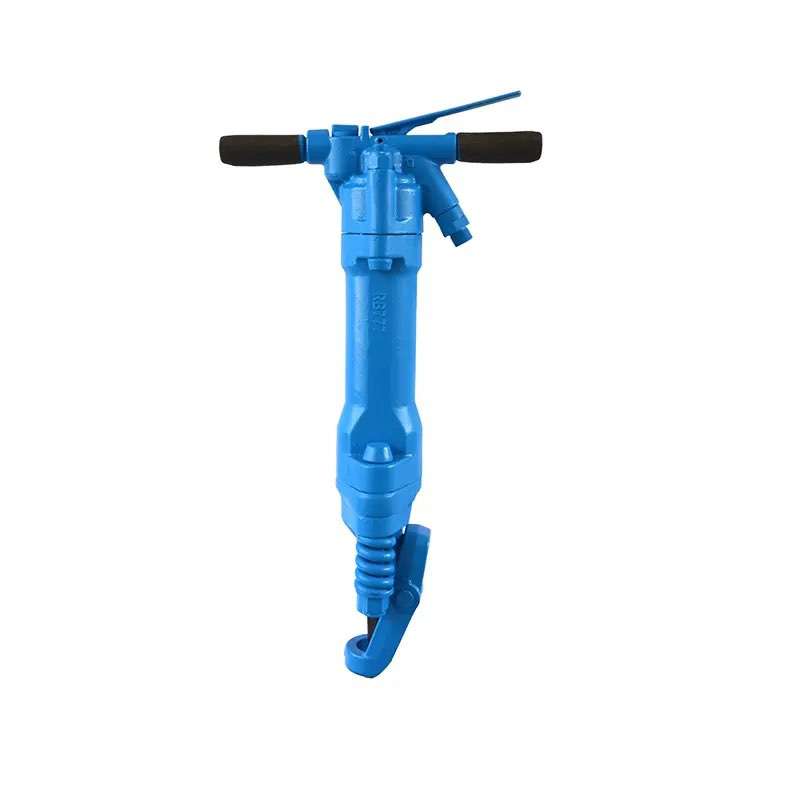

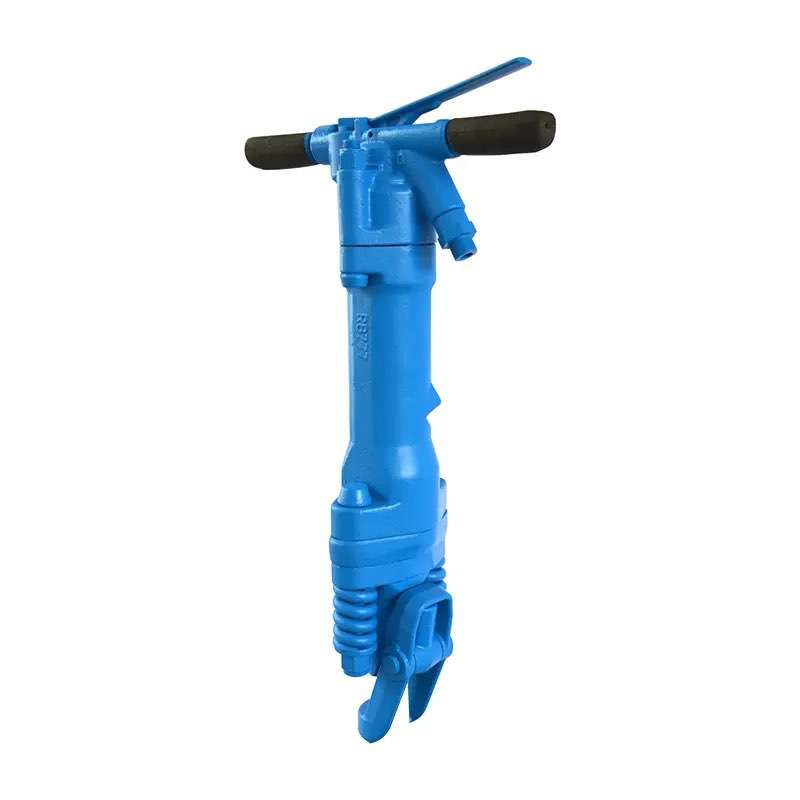

SL80 Paving Breaker
- Weight:37kg
- Piston Diameter:57 mm
- Piston Stroke:189mm
- Percussive Frequency:18.3 Hz
- Working pressure:0.4-0.5mpa
- Length:733mm
- Working Air Pressure:0.63 Mpa
- Air Tube Size:19mm
- Bit Head Size:R32*152 mm
SL80 AIR PICK
SL80 air pick adopts the technology of Japan\'s Toko Air, and is a small breaking tool powered by compressed air.SL80 pneumatic hammer is a ideal tool that break up concrete and other solid object in the road construction and installation.It has characteristic of simple structure,high efficiency and handy use . As long as fix a drill shank, turn on air source, then working.SL80 Pneumatic Hammer is a tool that use compressed air as power, the compressed air come from air connection tube to the valve unit in the pick back head, through valve, allot the compress air to cylinder above below antrum,promote hammer reciprocating up and down, hammer make punch beat the end of steel shank, ensure steel shank drill into concrete continuously, make it break into pieces.
The ideal tool for foundation construction
SL80 Handheld Jack Hammer Rock Breaker Hammer
1.More horsepower, higher efficiency and longer life
2.Extra large. Extra thick. Crushing work of extra hard objects
3.Your good helper
| Main parameters of air pick products | |
| Weight | 37 kg |
| Length | 733 mm |
| Piston Diameter | 57 mm |
| Working Pressure | 0.63 Mpa |
| Impact Frequency | 18.3 Hz |
| Air Pipe Inner Diameter | 19 mm |
| Air Consumption | 34 L/s |
| Oil Lubricator Capacity | 30 ml |

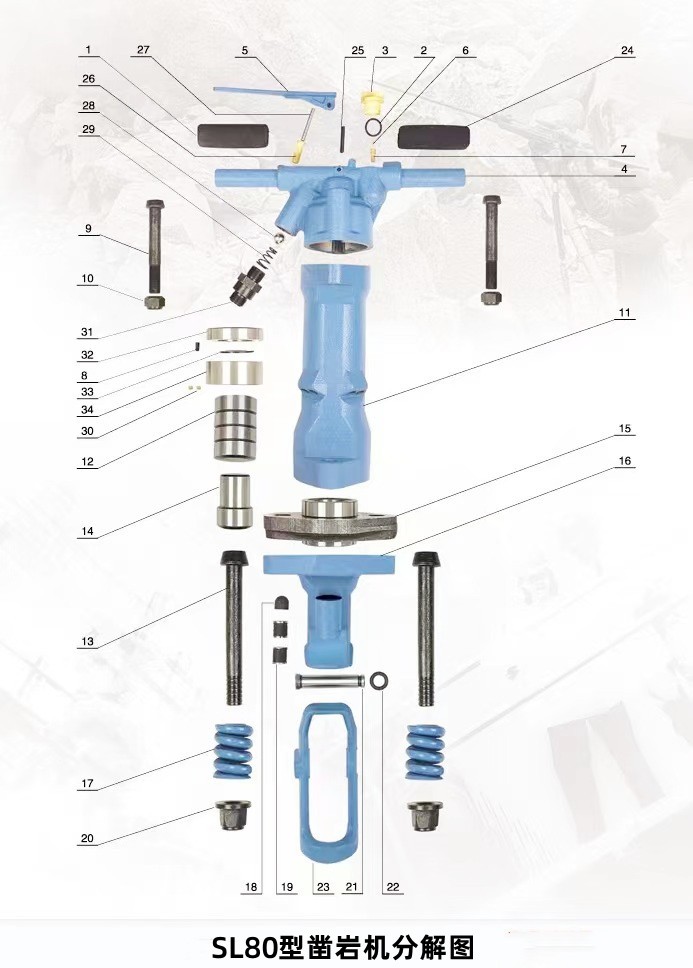

| SL80 Paving Breaker SPARE PARTS | |||
| Code | Part No | Name | 名称 |
| SL80 | Jack hammer | 气镐 | |
| 1 | SL80-18 | Shockproof handle | 手柄套 |
| 2 | GB1235- | O-seal ring | 0型密封圈 |
| 3 | SL80-22 | Plug | 螺塞 |
| 4 | SL80-01 | Rammer head | 镐柄体 |
| 5 | SL80-13 | control handle | 操纵手把 |
| 6 | pin | 紫铜小棒 | |
| 7 | SL80-24 | oil Plug | 注油塞 |
| 8 | GB879 | dowel pin | 弹性圆柱销 |
| 9 | SL80-16 | Side bolt | 长螺杆 |
| 10 | SL80-17 | Nut | 螺母 |
| 11 | SL80-02 | Cylinder | 气缸 |
| 12 | SL80-06 | Rammer | 锤体 |
| 13 | SL80-14 | Yoke bolt | 钎卡螺栓 |
| 14 | SL80-10 | Punch | 冲头 |
| 15 | SL80-05 | Guide sleeve | 导向套 |
| 16 | SL80-03 | Front head | 机头 |
| 17 | SL80-12 | Yoke spring | 钎卡弹簧 |
| 18 | SL80-28 | Yoke pin | 钎卡挡位销 |
| 19 | SL80-29 | Pin pad | 挡位销垫柱 |
| 20 | SL80-15 | Yoke nut | 钎卡螺母 |
| 21 | SL80-20 | Yoke axis | 钎卡小轴 |
| 22 | SL80-25 | O-seal ring | 0型圈 |
| 23 | SL80-04 | Yoke | 钎卡 |
| 24 | SL80-19 | Shockproof handle（B) | 手柄套(B) |
| 25 | GB879 | pin | 弹性圆柱销 |
| 26 | SL80-23 | Jib pipe | 挺杆导管 |
| 27 | SL80-26 | Jib pin | 挺杆销 |
| 28 | SL80-27 | Clogging valve | 阻塞球阀 |
| 29 | SL80-21 | Clogging valve spring | 球阀弹簧 |
| 30 | Plug | 闷塞 | |
| 31 | SL80-11 | Air connection tube | 气管接头 |
| 32 | SL80-08 | Valve chest pad | 阀柜垫板 |
| 33 | SL80-09 | Valve core | 阀片(芯) |
| 34 | SL80-07 | Valve chest | 阀柜 |
