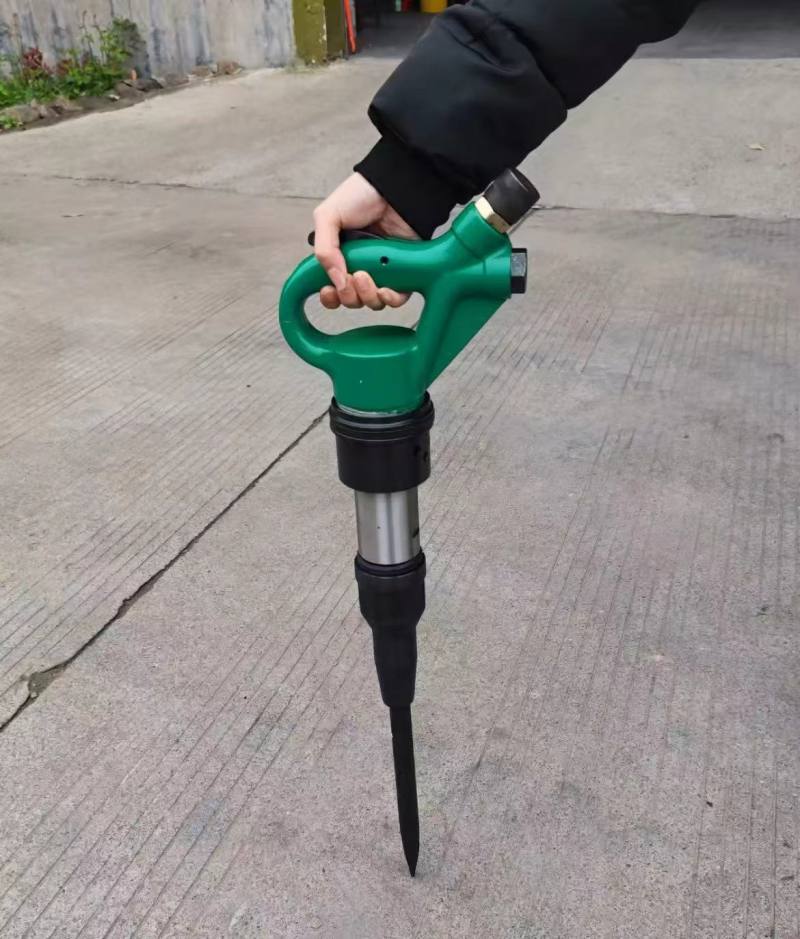

Air Shovel ML33
- Overall length:540 mm
- Impact frequency:≥ 18 Hz
- Impact energy:15 J
- Cylinder diameter:33 mm
- Hammer stroke:110 mm
- Air consumption:12 L/s
- Air hose inner diameter:13 mm
- Weight:6.5 kg
Applications
1. Cutting of various metal components in boiler manufacturing, shipbuilding, metallurgy and other industries,especially for irregular or narrow surfaces that are difficult to access.
2. Sand cleaning and removal of casting gates and risers on medium and large castings.
3. Weld removal on bridges in transportation projects of capital construction.
4.Opening work on various brick walls and concrete walls.
Operation & Maintenance
1. Working air pressure shall be maintained at 5-6 kg/cm
2. The fit between the tail of the chisel and the steel sleeve must meet requirements.
3. Lubricate every 2-3 hours during operation; disassemble and clean weekly.
4. Avoid idle hammering without a chisel during use.
5.Lubricate and store properly when not in use for a long time.
