Rock drilling tools manufacturer ProDrill™ offers rock drill bits: EL60-127mm thread button bit are one of the most important size for bench and production blasthole drilling.

Bench drilling, production blasthole drilling is an integral part of modern mining and quarrying operations, enabling efficient extraction of valuable resources from the Earth.

It requires skilled operators and careful planning to ensure safety, productivity, and environmental responsibility.

Top hammer button bits EL60 Thread Bit

Size Scope : 102mm , 115mm , 127mm , 140mm

Skirt Body: normal, Retrac
Face type: flat, uniface, drop center
Uniface EL60 Threaded Drill Bit
Carbide Design: Dome, ballistic, semi-ballistic/parabolic

Carbide grade : YK05/T6

Used in bench drilling, production blasthole drilling, underground long hole drilling to match extension drill rod, MF rod, Speed rod, heavy duty top hammer Pantera series DP1500i.

15 dome carbide inserts EL60 threaded dill bit with drop center design, 127mm diameter with extension drill steel for for production blasthole drilling in open pit of iron ore, gold ,cooper ,etc.

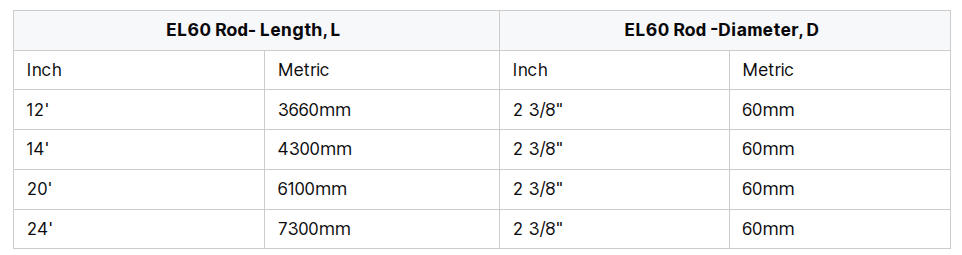

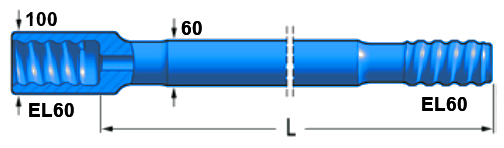

M/F Speed Rods / Extension rods for EL60/GT60

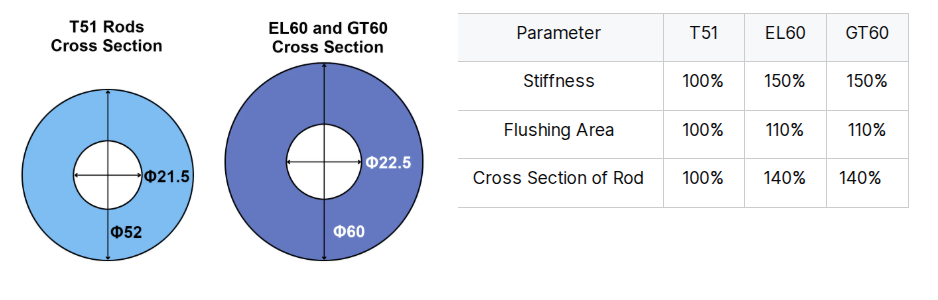

EL60 and GT60 Drill Rods have the advantage of: 1.5 times the bending stiffness, resulting in a straighter hole being drilled.

10% more flushing area for better flushing performance. The 40% larger cross section makes the rods more durable than T51 rods.

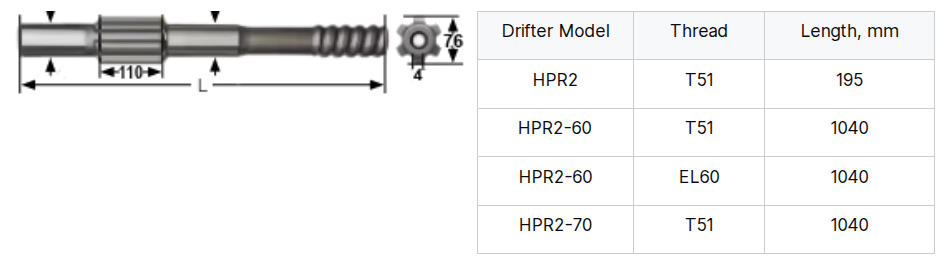

Surface Bench Drilling Shank Adaptors

While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use.
