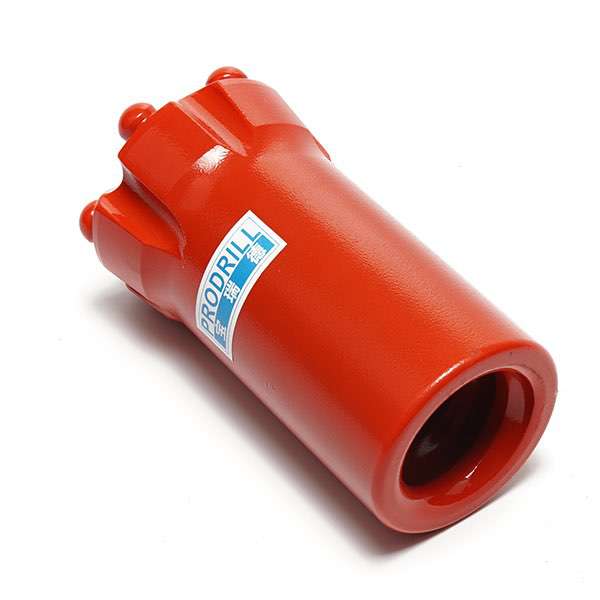

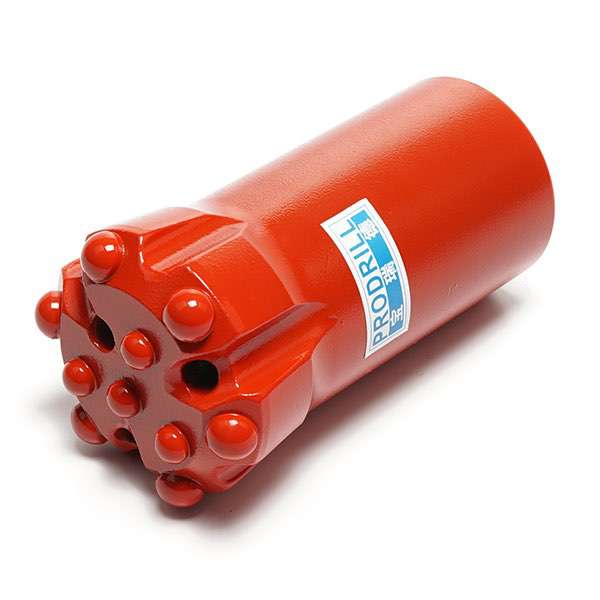

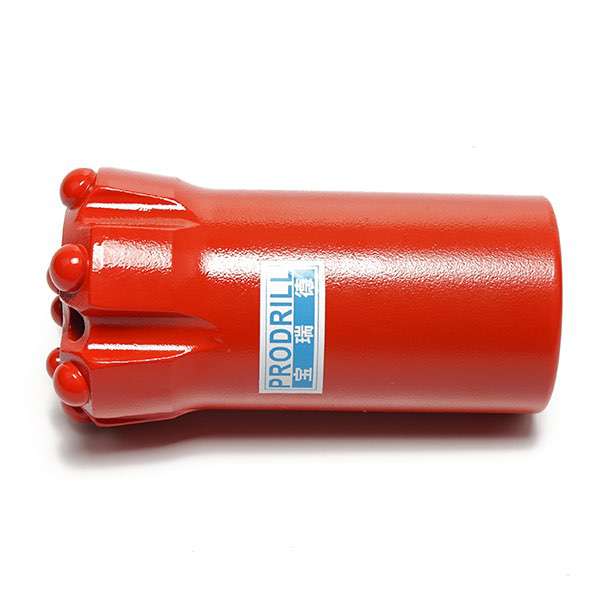

Q10-76-T45 Threaded Button Bit

  • Code No.: Q10-76-T45
  • Face Design: Flat
  • Skirt Design: Normal
  • Air Hole No.: 3
  • Gauge Buttons: 6
  • Front Buttons: 4
  • Carbide Design: Dome

Q10-76-T45 Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures top hammer bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

T45 Threaded Button Bit

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, normal, and straightrac

Face type: flat, uniface, drop center

Carbide shape:  Dome, ballistic, semi-ballistic

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

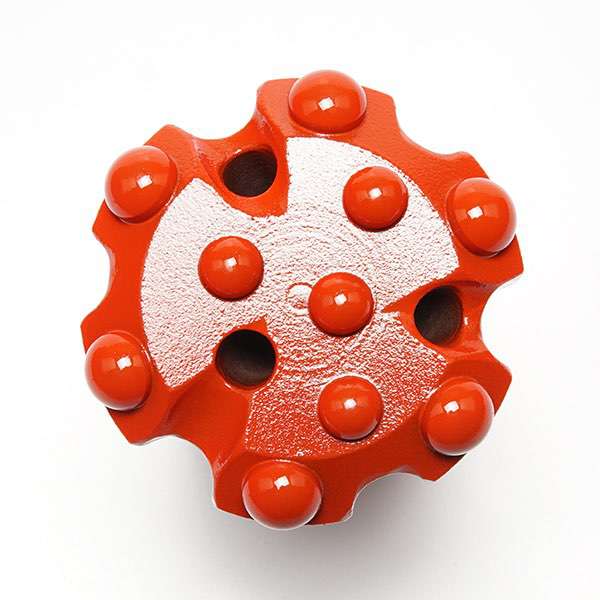

Dome Button, Flat face T45 Threaded Drill Bit

10 Dome Buttons, Flat face design, 3 air holes T45 Threaded Drill Bit with normal skirt body, 76mm drilling diameter.

Dome Button, Flat face T45 Threaded Drill BitDome Button, Flat face T45 Threaded Drill BitDome Button, Flat face T45 Threaded Drill Bit

Sandvik Top hammer drill rig RANGER DX700 using ProDrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.

Q10-76-T45 Top Hammer Bit to match with extension drill steels for bench drilling and underground long hole drilling.

PDFFor more details please watch PDF online:T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
