Y2-32-619-67 Tapered Chisel Bit

  • Code No.: Y2-32-619-67
  • Diameter: 32mm
  • Length: 67mm
  • Tapered Degree:
  • Carbide Dimension: 12mm*8mm
  • Water Holes: 2 on side

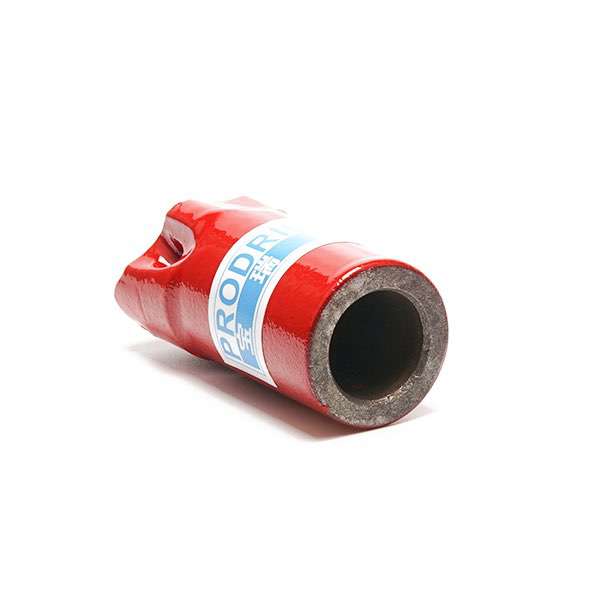

Y2-32-619-67 Tapered Chisel Bit

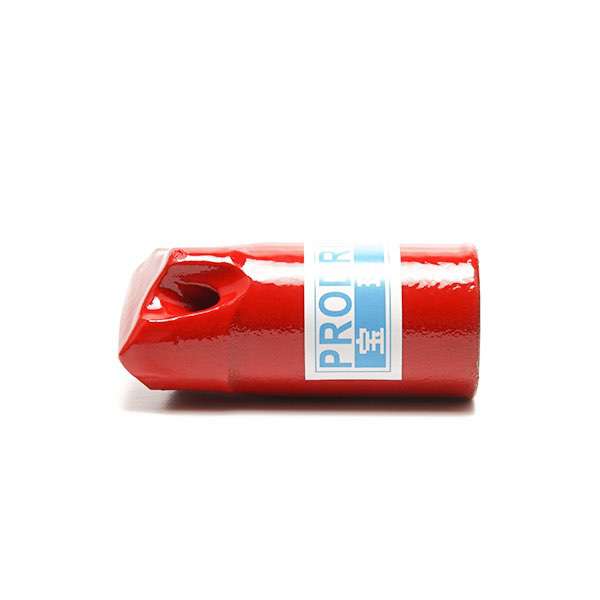

Tapered chisel bit

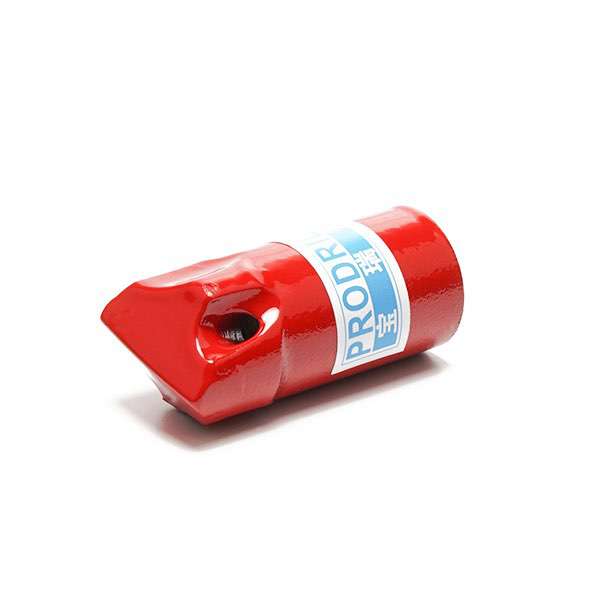

Tapered chisel bit

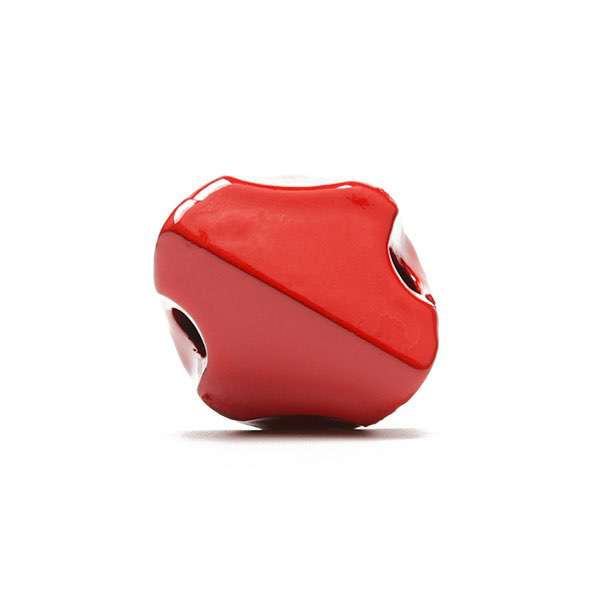

Tapered chisel bit

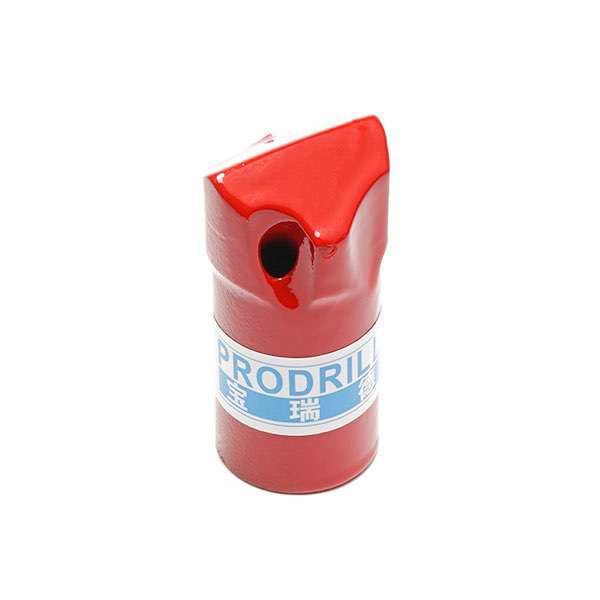

Tapered chisel bit
Tapered chisel bit

Product details

Tapered chisel bits from rock drilling tools manufacturer ProDrill, is suitable for mining of black metal mines(such as iron mine/ manganese ore), nonferrous metal mine(such as gold/silver/copper ore), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14. At present, we offer rock drill bits including Horse Shoe Bits and Chisel bits. Chisel is more popular in Saudi Arabia, and it's suitable for hard rock drilling.

32mm Tapered Chisel Bit

It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block's trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 12 mm’s tapered drill steel with 4/6/7/11/12 degree.

32mm Tapered Chisel Bit

All tapered chisel bit are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.

6 Degrees Tapered Drill BitY2 Tapered Chisel Bit6 Degrees Tapered Chisel Bit

PDFFor more details please view PDF online: Tapered Chisel Bits for Small Hole Drilling Catalogue
