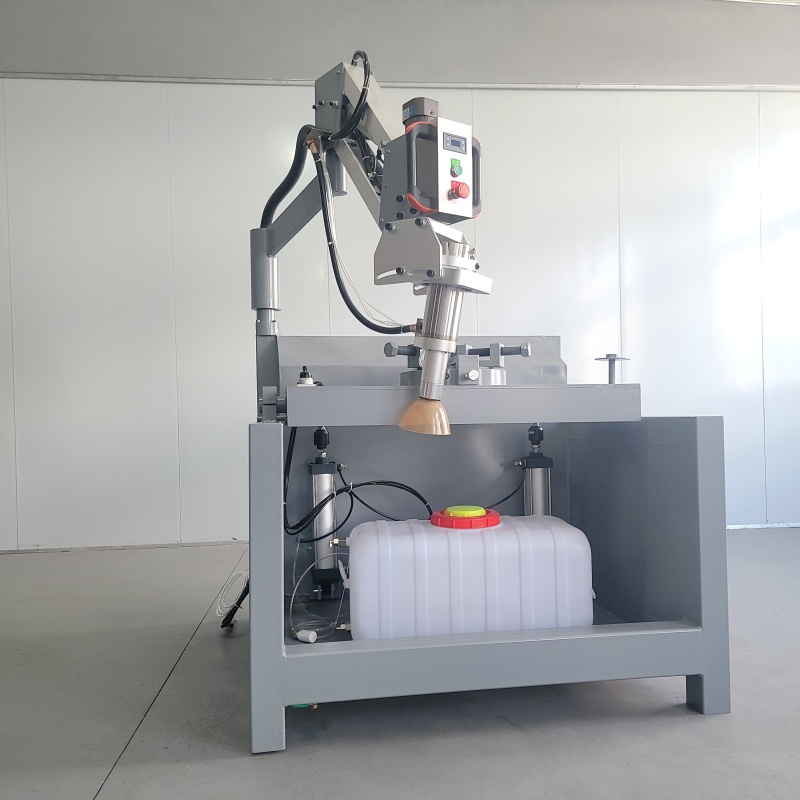

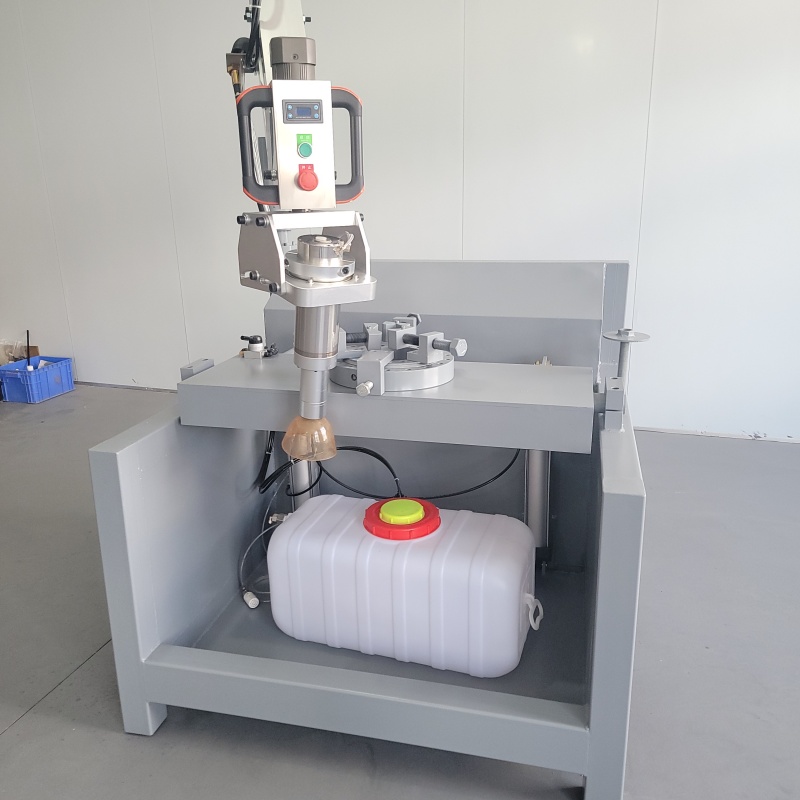

G320 Semi-automatic electric grinder
- Rated electric power : 4KW
- Max spindle speed : 22000RPM
- Working air pressure : 7 Bar(100psi)
- Coolant : Selfregulation water pump
- Max water pressure : 4 Bar (60 psi)
- Water consumption : 2-4 L/Min
- Weight : 475kg
Through years of experience and refinement, ProDrill™ manufactures high performance button bit grinder, grinding cups, grinding wheels, grinding pins, and other accessories.
G320 Semi-automatic electric grinder Technical Specifications
| Model | G320 |
| Electrical specifications | Single phase,208-240V 15-20Amps breaker 50 or 60 Hz |
| Rated electric power | 4 KW |
| Max spindle speed | 22,000 RPM |
| Working air pressure | 7 Bar(100psi) |
| Coolant | Selfregulation water pump |
| Max water pressure | 4 Bar (60 psi) |
| Water consumption | 2-4 L/Min |
| Sound Level | <78 dB |
| Weight | 475 kg |
| Dimensions | 120*112*176 CM |
G200 Hand Held Button Bit is a complete manual grinding system comprising a grinding machine, grinding cup and a specially designed quick adaptor.

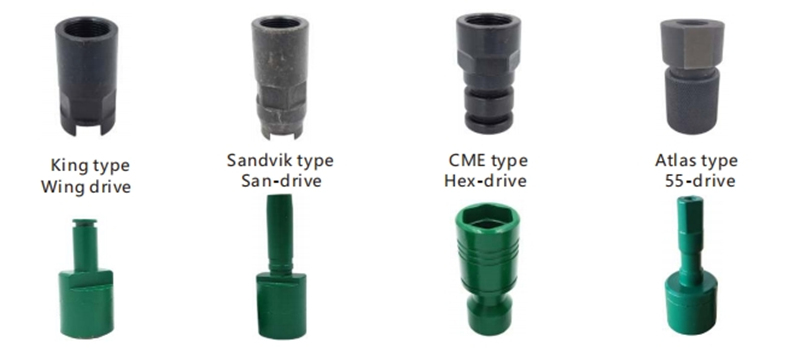

The special designed quick adapters allow our operator to replace the grinding cups quickly.

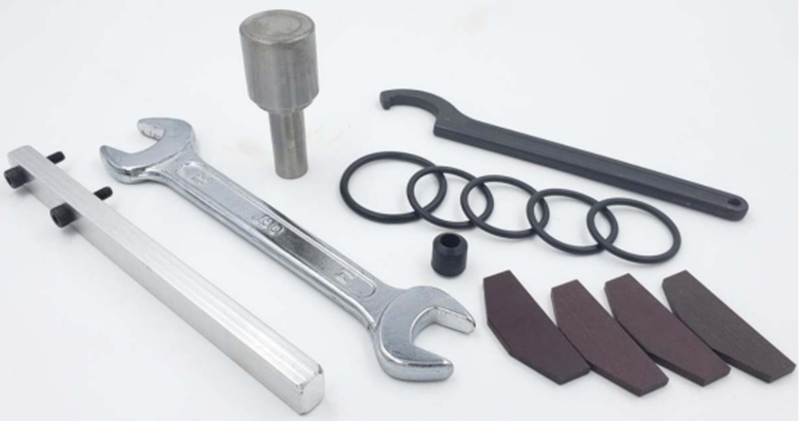

Repair Kit
For more details please watch PDF online: Button Bit Grinding Equipment
