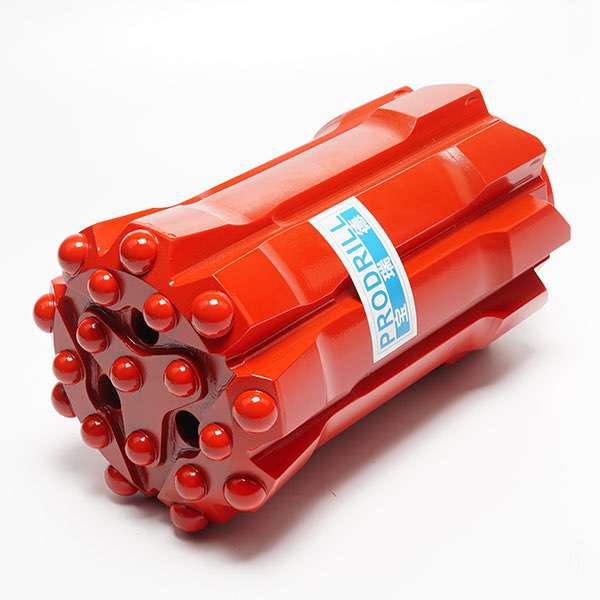

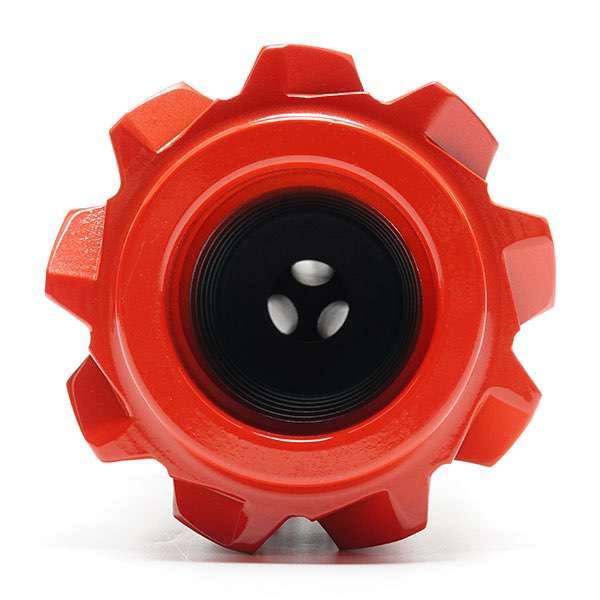

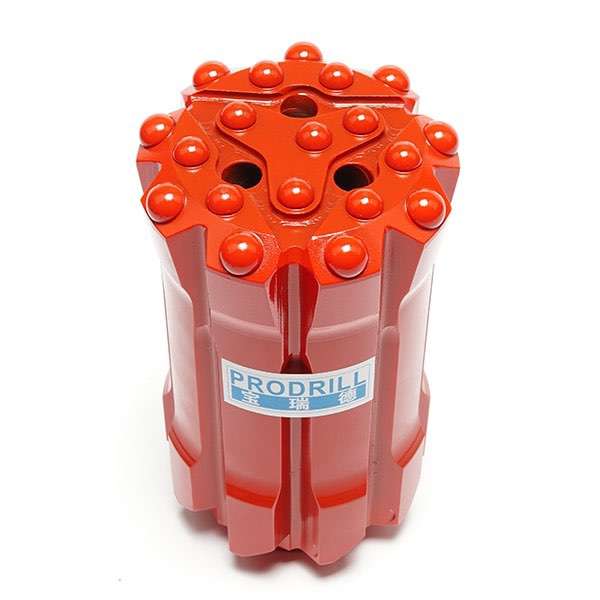

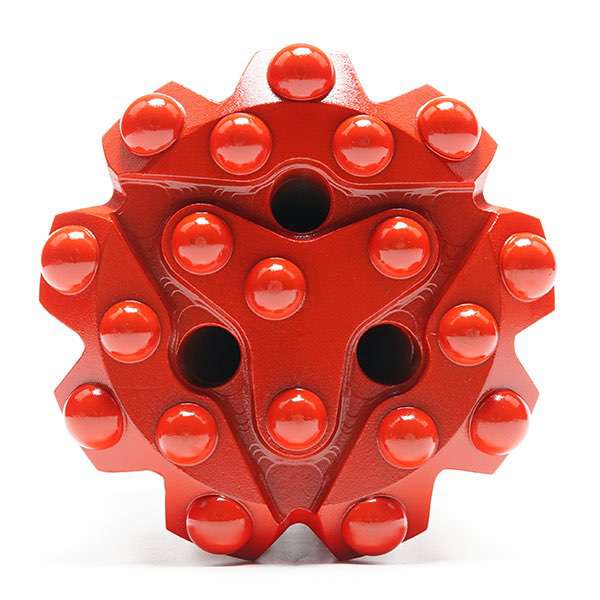

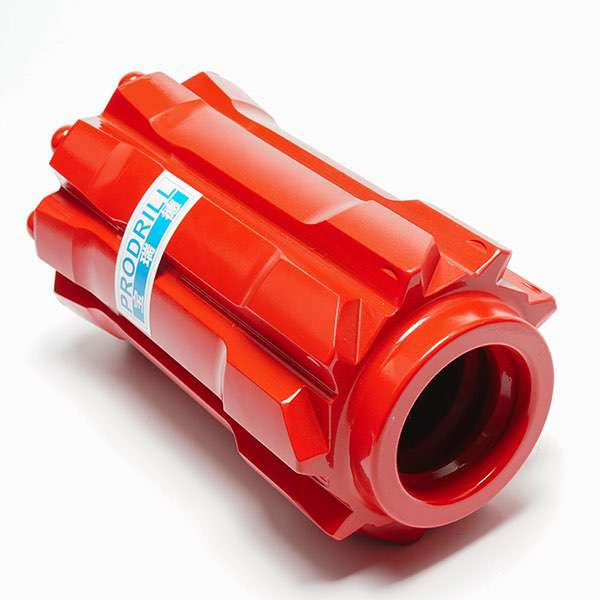

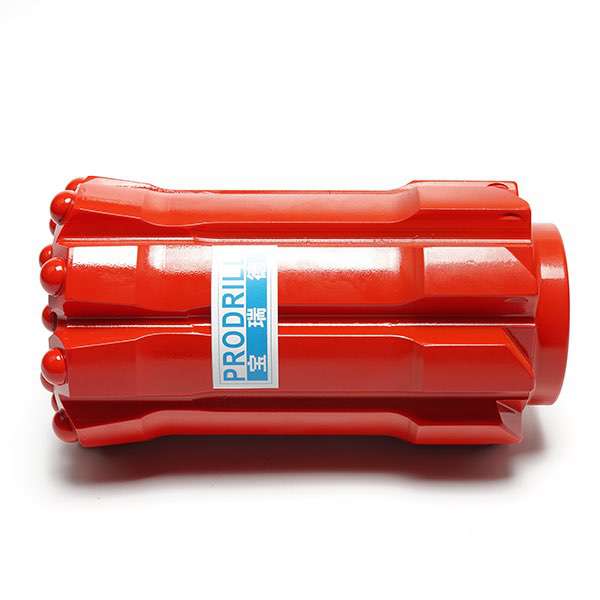

Q19-140-GT60-RC-Threaded Button Bit
- Code No.: Q19-140-GT60-RC
- Thread: GT60
- Diameter: 140mm
- Gauge Buttons: 9*14mm
- Front Buttons: 10*14mm
- Skirt Design: Retrac
- Carbide Design: Dome
- Face Design: Uniface
Rock drilling tools manufacturer ProDrill offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching. GT60 rock drill bits are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.
Diameter: 93mm, 102mm, 115mm, 127mm,140mm
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide Design: Dome, ballistic, semi-ballistic/parabolic
A GT60 drill bit is a heavy-duty rock drill bit designed for large-diameter holes (92 – 152 mm) in hard rock applications, commonly used in mining and construction. It is part of the larger Sandvik GT60 system, which features a larger rod cross-section (60 mm) for higher penetration rates, greater stability, and improved energy transfer compared to smaller systems like T51.
Key features include durability, high performance, and a "retrac" skirt for easier retrieval.
Key features and benefits
- Size and application: It is designed for larger hole diameters (from 92 mm to 152 mm) and is ideal for deep, long-hole drilling in hard, abrasive rock.
- System compatibility: The GT60 thread is designed to work with the GT60 rod system, which includes rods with a larger 60 mm cross-section for greater rigidity and energy transfer.
- Performance: It offers high penetration rates and drilling accuracy, with some systems claiming up to twice the penetration of DTH drilling for less energy consumption.
- Durability: Built with high-quality materials, these bits are designed to withstand harsh drilling environments and have a long service life.
- Retrac design: A "retrac" design features a special skirt to help ensure the drill string can be pulled out of the hole, preventing it from getting stuck.
- Hole straightness: The entire GT60 system, including the rods, contributes to better hole straightness compared to smaller, less rigid systems
ProDrill offer a wide string of GT60 drilling bit , rod , shank etc for Pantera series Sandvik DP1500 i top hammer .
| Pantera Consumables for Sandvik DP1500i | |
| ROD | DS-ROD M/F 4.3 MTR RG60-60R- 4 |
| 140mm Bit | DS - RETRAC BIT- GT60- 140MM- |
| 127mm Bit - S48 (Pref) | DS - GT60 127MM RETRAC BIT- |
| 127mm Bit - S55 | 127MM BIT - S55 |
| 115mm Bit - S48 (Pref) | DS-BIT RETRAC 115MM RG60- BUTT |
| 115mm Bit - S55 | DS - BIT - GT60 X 115MM RETRAC |
| 102mm Bit - S48 (Pref) | RETRAC BIT GT60 102MM |
| 102mm Bit - S55 | BIT - 102MM - S55 |
| BIT STANDARD SUB | |
| SHANK | DS-ADAPTER; SHANK; GT60 X HL1560 |

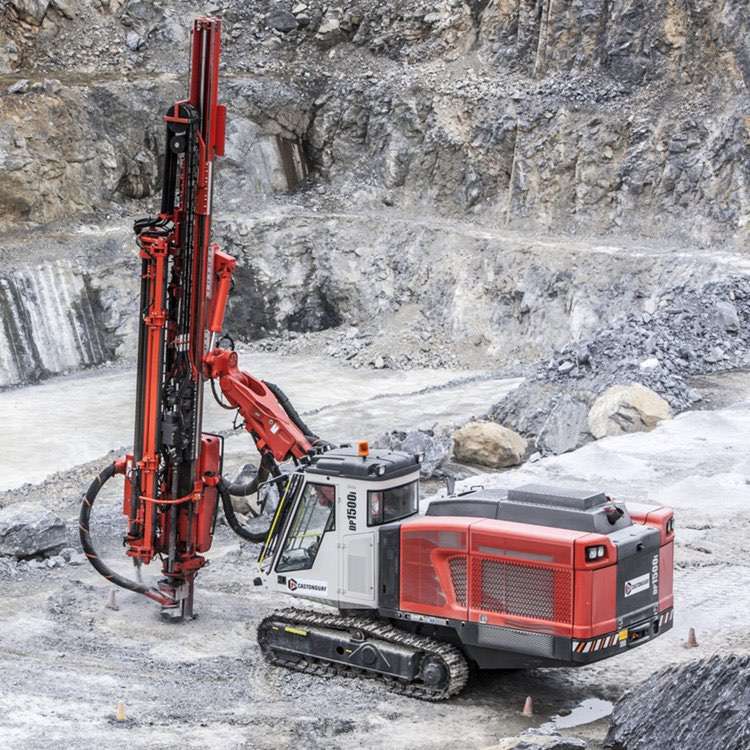

New DP1500i is performing drilling 102/115/127/140mm holes for bench and production mining
