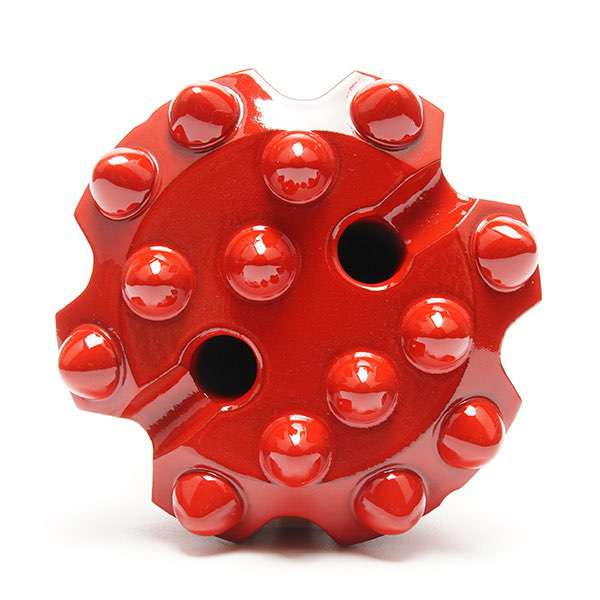

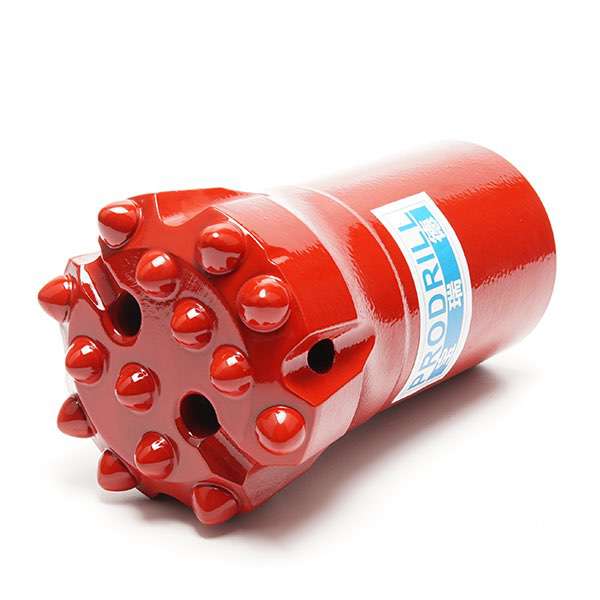

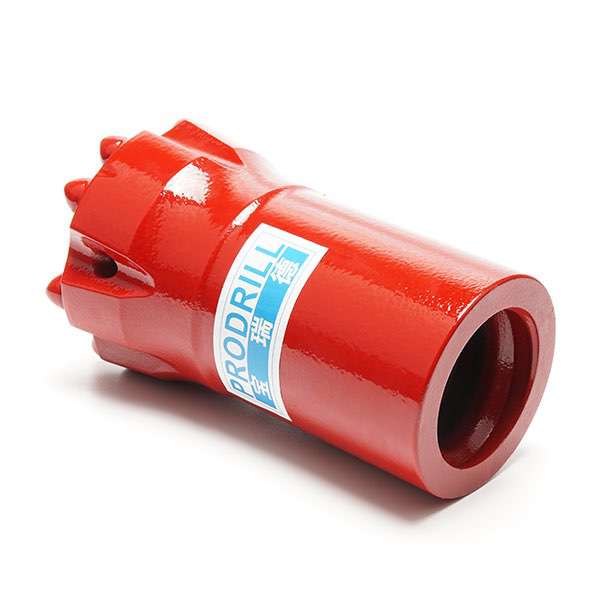

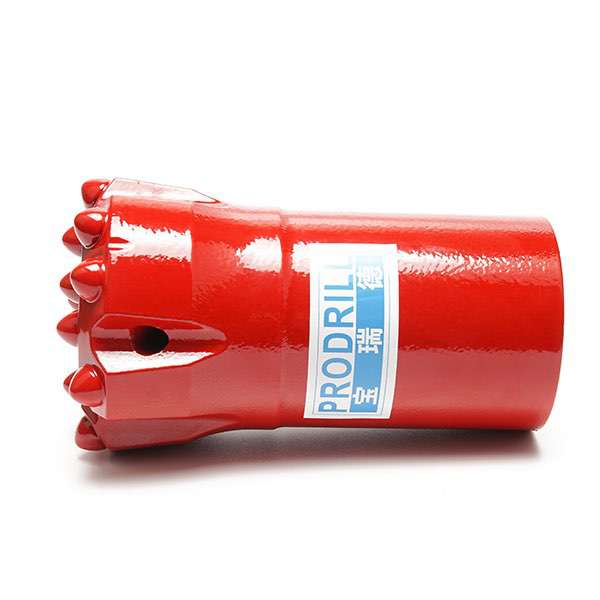

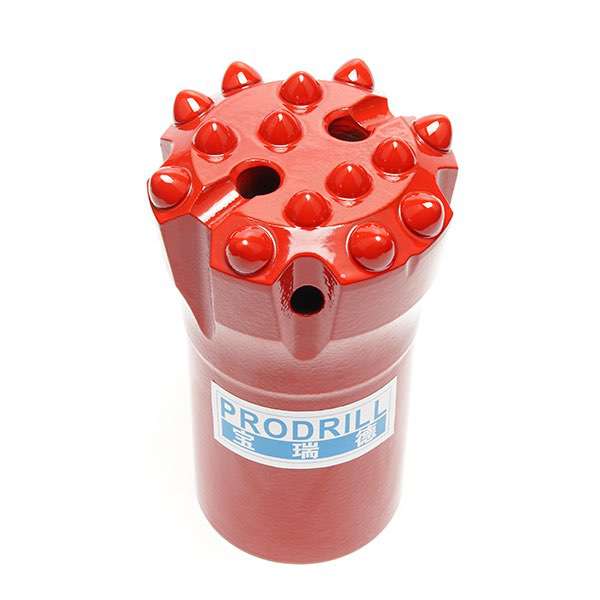

Q14-89-T51 Threaded Button Bit

  • Code No.: Q14-89-T51
  • Thread: T51
  • Diameter: 89mm
  • Gauge: 8*13mm
  • Front: 6*12mm
  • Skirt Design: Standard
  • Carbide Design: Semi-Ballistic
  • Face Design: Flat
  • Weight: 3.77kgs

Q14-89-T51 Threaded Button Bit

Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit
Threaded Button Bit

Product details

Rock drilling tools factory ProDrill manufactures high quality rock drill bits, one of the most important size for benching and long-hole drilling underground is T51 Threaded Button Bit

T51 Threaded Button BitSemi Ballistic Button Threaded Drill Bit

Diameter: 76mm, 89mm, 102mm

Skirt body: retrac, and normal, straightrac

Face type: flat, uniface, Drop Center

Carbide shape:  Dome, ballistic, semi-ballistic

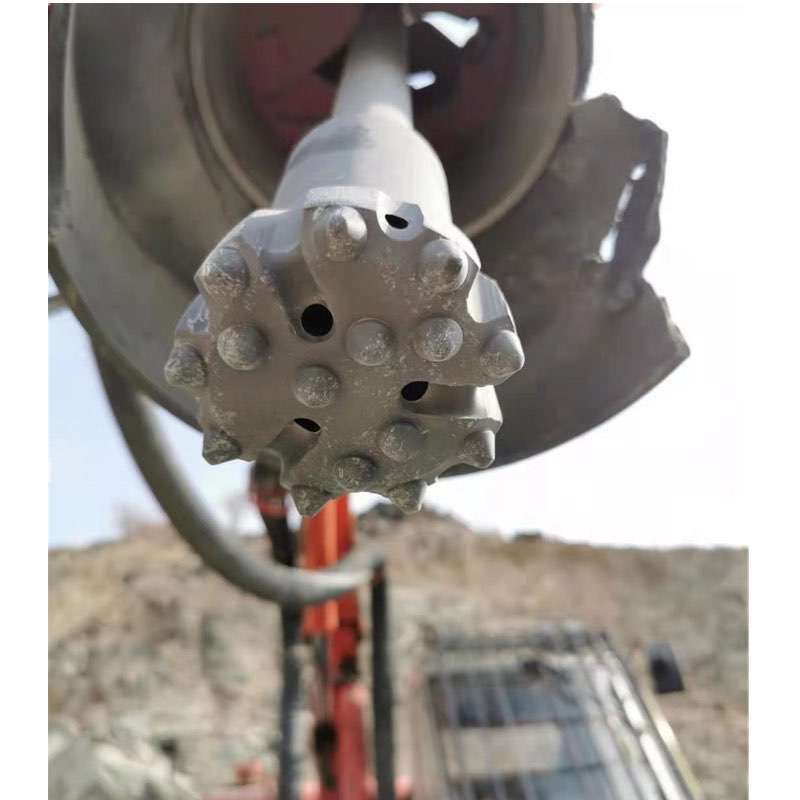

Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

Flat face threaded button bitSemi ballistic threaded button bit89mm T51 Threaded drill bit

14 Semi-ballistic carbide inserts T51 threaded drill bit with flat face design, 89 mm diameter match with extension drill steels


T51-89-14button FF spherical bit, 13mm*8+12mm*6

PDFFor more details please watch PDF online: T51 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
